Snap-On Zeus - Data Screen Overview

Scanner Data (Viewing PIDs)
58

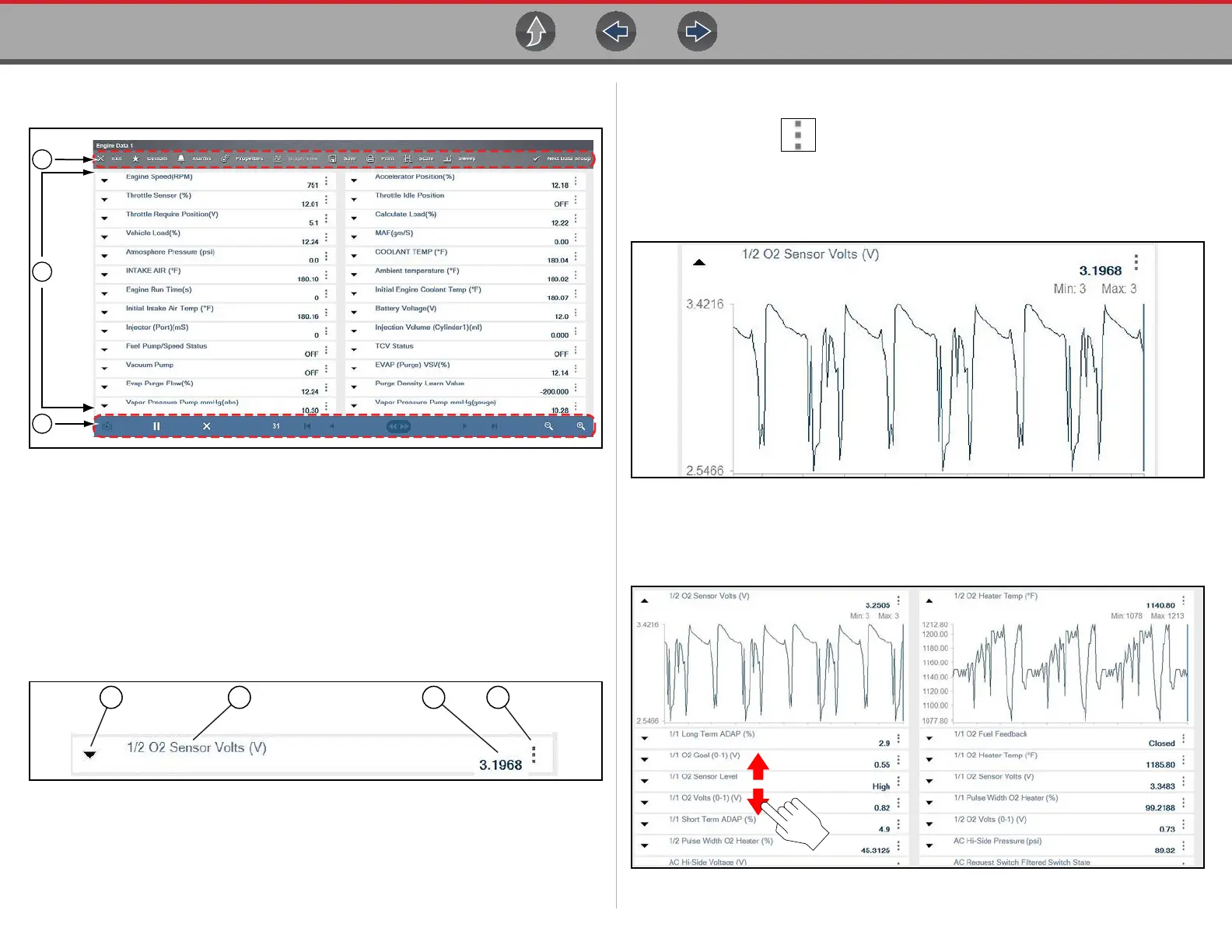

5.6.1 Data Screen Overview
1— Data Toolbar - see Data Toolbar on page 61
2— Main Body
3— Data Controls Toolbar - see Data Controls Toolbar on page 67
Figure 5-32 Typical data screen (List / text) layout shown
Select the Expand/Collapse icon (Figure 5-33) to toggle a PID between list
(Figure 5-33) and graph display (Figure 5-34).
Selecting the Expand/Collapse icon (PID in list display), opens the PID in graph
display, and moves that PID to the top of the list (Figure 5-35).
1— Expand/Collapse Icon
2— PID Name/Description -
Descriptive name of the parameter ID
3— PID Current Value - The PID Current Value can display as a value or as a status.
When displayed as a value, the value correlates with trace cursor line, which
indicates the current vertical point of the signal. When displayed as a status, it
correlates to an operational state (e.g. On/Off, Enabled/Disabled, etc)
4— Menu Icon - Menu options for display and setup
- Full Screen View - expands the graph to fill the entire screen
- Setup - opens graph scale and trigger settings
Figure 5-33 Typical PID (list view)
Figure 5-34 Typical PID (graph view)
Use gesture scrolling (up/down) to quickly move through each data list
(Figure 5-35).
Figure 5-35
1
2
3
1 2 3 4
