Scanner Data (Viewing PIDs)
61

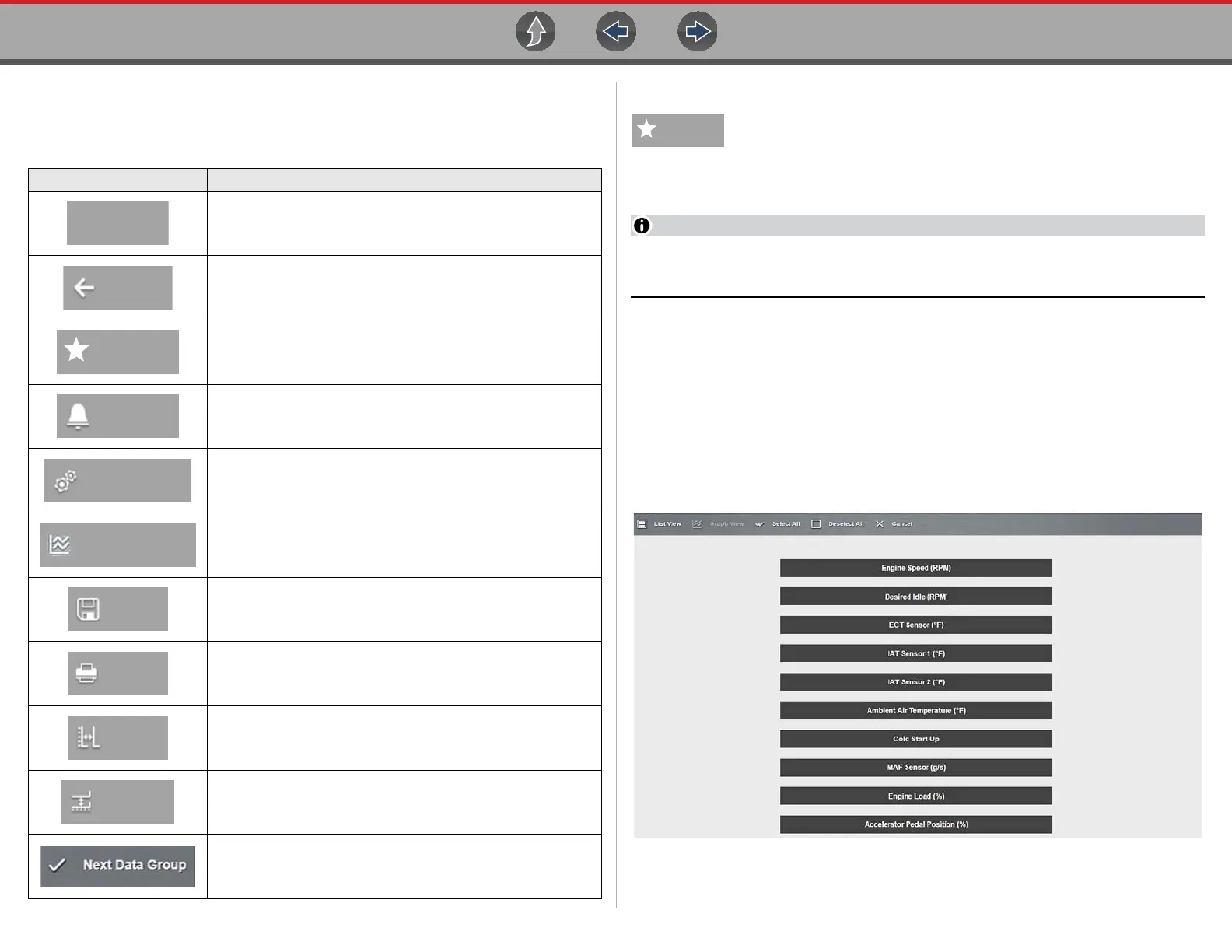

Data Toolbar
The Data toolbar contains a number of icons that allow you to configure the
displayed data and to exit:
Custom
Custom is used to set which PIDs are displayed. Minimizing the
number of PIDs displayed allows you to focus on specific data and
may increase the data transmission rate from the vehicle. You can add or remove
most parameters from the list.
Limiting the number of parameters that display allows for a faster refresh rate
of the data.
z To create a custom data list:
1. Select Custom on the Scanner Toolbar.
The parameter selection dialog box with all of the parameters selected opens
(Figure 5-41).
2. Select the Deselect All icon to clear the highlights from the screen.
3. Create a custom data list by selecting the parameters to be included.
Highlighting indicates a parameter that displays, parameters that are not
highlighted do not display.
Figure 5-41 Custom configuration (Select All shown)
Icon Description
Closes the current test and returns to the menu.
Returns to the previously viewed screen.
Configure which parameters are displayed on the screen.
See
Custom on page 61.
Set alarms for two-state PIDs. See Alarms on page 64.
Allows you to adjust the display characteristics for all of the
data screens. See Properties on page 65.
Allows you to simultaneously view up to 16 data graphs.
See
Graph View on page 65.
Saves a copy of the current frame of data that can be viewed
using Data Manager. See
Save on page 66.
Opens a standard Windows Print dialog box for saving a print
copy of the current frame of data. See Printing / Printer
Setup on page 20
.
Hide, or display, the scale values (left side of the graph).
See Scale on page 66.
Hide, or display, the sweep values (base of the graph).
See
Sweep on page 66.
Display the next data group in the Data Menu.
To Next Page
