Scope and Multimeter Operations Getting Started
103
9.6 Getting Started
9.6.1 Selecting a Function
z To start the scope multimeter:
1. Select the Scope Multimeter icon on the Home screen.
Select one of the following options:
- Digital Multimeter (DMM)
- Graphing Multimeter (GMM)
- Lab Scope
- Ignition Scope (Secondary Ignition Tests)
-Presets
A submenu of scope or meter configuration will display.
2. Select a configuration to continue.
The following topics in this section primarily describe the general setup and
control operations for the Lab Scope and Graphing Multimeter functions. The
Digital Multimeter is not covered as setup and operations are intuitive.
3. For information on the Ignition Scope function, see Ignition Scope on
page 132.
4. For information on the Presets function, see Presets on page 143.
9.6.2 Test Lead / Probe Connection
Standard “safety type” test lead jacks are located on the top of the diagnostic tool,
and are compatible with many test leads and probes. Insert the applicable test lead
or probe terminal end into the jack to compete the connection.
For information on test leads, see Test Leads and Accessories on page 143.
To avoid damaging test leads, do not pull on the wire when removing the
leads from their jacks. Pull only on the lead terminal end.
1. Auxiliary (DB9) Connector The auxiliary connector is used for connection of the
optional RPM inductive pickup and the pressure transducer split lead adapter. For
additional information contact your sales representative and see,
Using the Scope
Module Extension Cable on page 104
.
2. Channel 4 Jack
3. Channel 3 Jack
4. Channel 2 Jack
5. Channel 1 Jack
6. Common (Ground) Jack

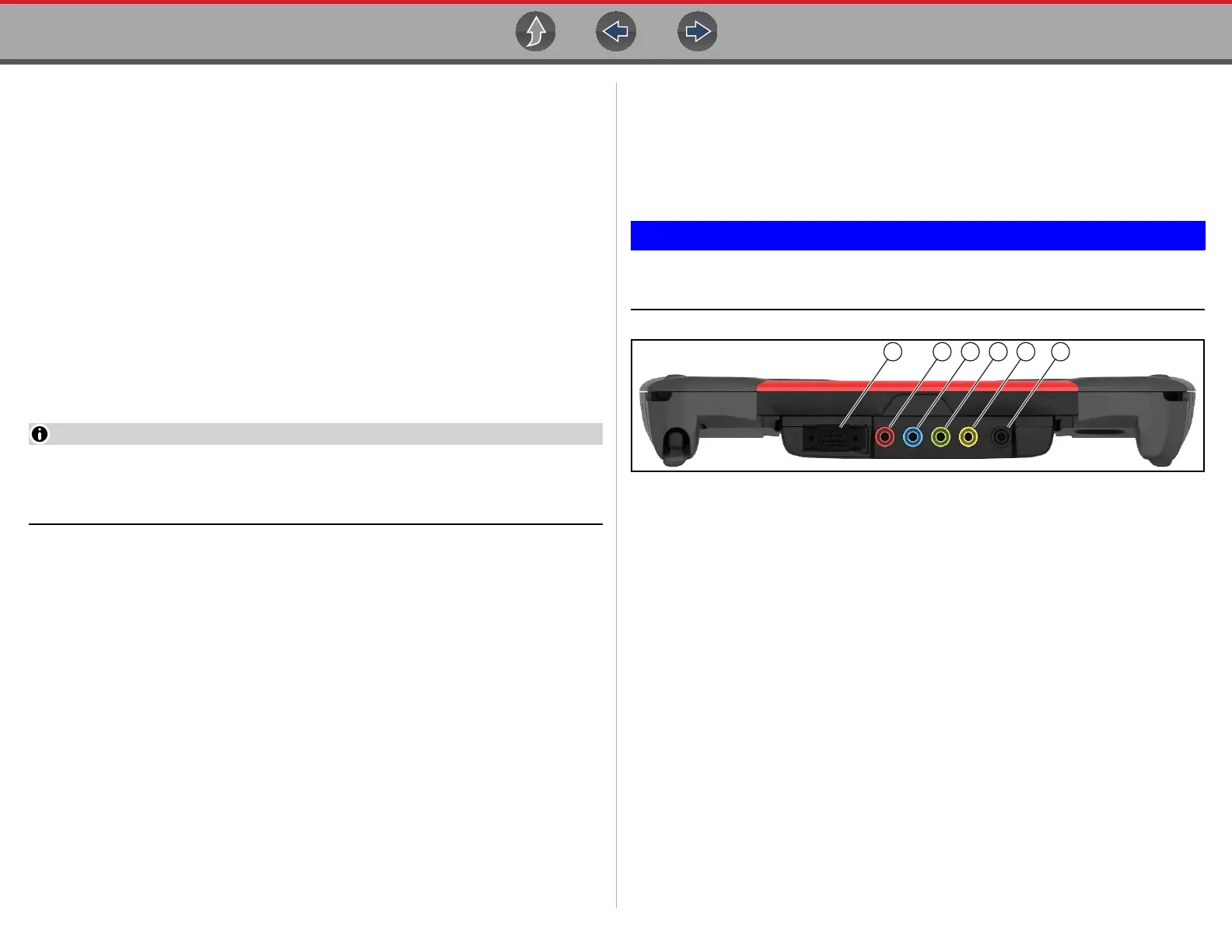

Figure 9-3 Scope Multimeter Test Lead Jacks
