6.5 Top Repairs Graph
The Top Repairs Graph (Figure 6-7) shows the most common verified fixes using
the parts listed.
Example - In the graph shown below, the most common fix for the code was
replacing the intake manifold gasket. This fix occurred 413 times, with the most
occurrences (85) at 100k miles in vehicles with up to 200k miles.

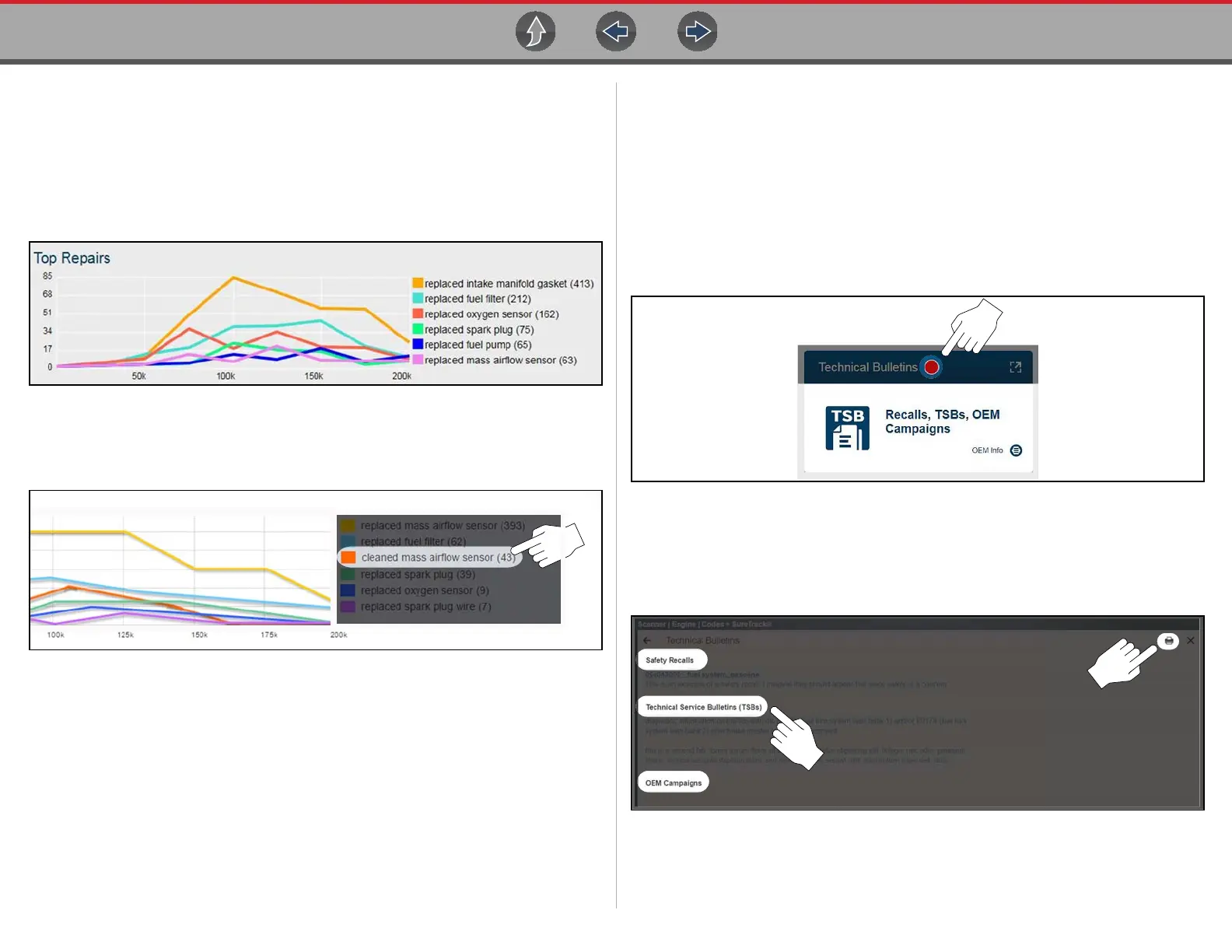

Figure 6-6 Top Repairs Graph (multiple components)
Depending on the information available, the graph may also include probable
causes. See example in Figure 6-7 “cleaned mass airflow sensor”.
Figure 6-7 Example - Probable Cause within Top Repairs Graph
6.6 Technical Bulletins (OEM Information)
The Technical Bulletins card (Figure 6-8) provides a quick link to OEM Recall, TSB
and Campaign information that may be available for the selected code.
• A red icon (Figure 6-8) indicates the total number of Recalls, TSBs, and OEM
Campaigns that have been found.
• A green icon indicates a search was performed and no results were found.
Selecting the Technical Bulletins card (Figure 6-9) provides a detailed list view of
the available OEM Recalls, TSBs, and Campaigns (Figure 6-10).
Figure 6-8 Technical Bulletins card
Select a topic from the list (Figure 6-9) to view detailed information on the topic
(Figure 6-10).
Select the Print icon to print the topic (Figure 6-9). See Printing / Printer Setup.
Figure 6-9 Bulletin, Recall, Campaign list and Print icon
