Scope and Multimeter Operations Technical Specifications (Scope Module)
99

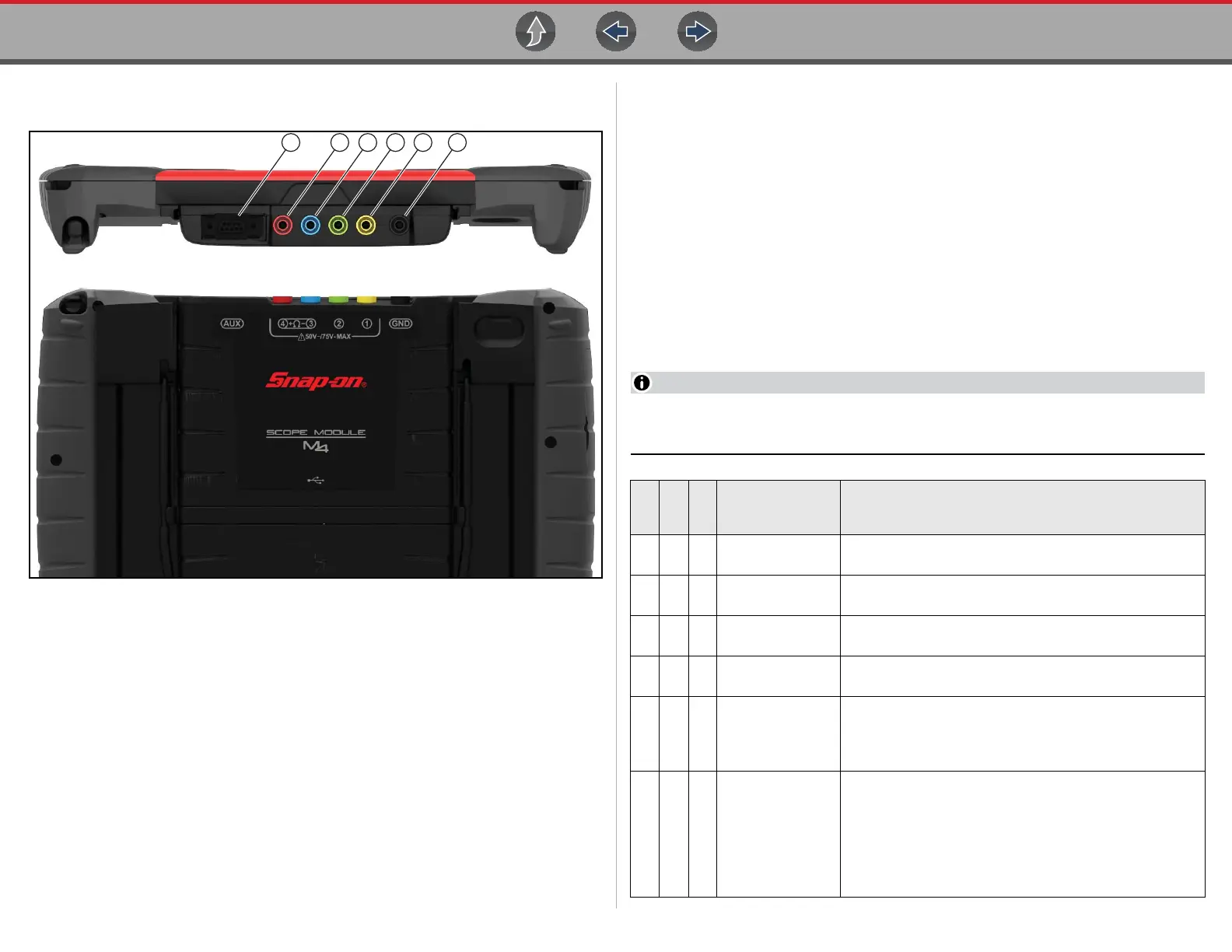

9.4 Component Locations
1. Auxiliary (DB9) Connector The auxiliary connector is used for connection of the
optional RPM inductive pickup and the pressure transducer split lead adapter. For
additional information contact your sales representative, and see
Using the Scope
Module Extension Cable on page 104
.
2. Channel 4 Jack
3. Channel 3 Jack
4. Channel 2 Jack
5. Channel 1 Jack
6. Common (Ground) Jack)
Figure 9-2 Scope Module, removed from Diagnostic Tool
9.5 Testing Capabilities
The following sections provide a general overview of the testing capabilities of the
Scope Multimeter (select topic to link to section):
• Digital Multimeter (DMM)
• Graphing Multimeter (GMM)
• Lab Scope
• Ignition Scope
• Presets
9.5.1 Tests and Capabilities (Quick Reference)
The following chart lists the available DMM, GMM, and Lab Scope tests.
Not all the tests listed are described in this manual. This list is intended as
reference only.
D
M
M
G
M
M
L
S
Test Function
a
Four Channel
Lab Scope
Displays four Lab Scope channels automatically.
a
Four Channel
Graphing Meter
Displays four Graphing Multimeter channels
automatically.
a Ignition Probe
Measures secondary Ignition voltage 2 to 50kV. Displays
secondary ignition (kV) waveforms.
aaaVolts DC
Measures DC (direct current) voltage. DC voltage is
measured through test leads connected to a DC circuit.
aa
Volts DC -
Average
Measures DC voltage using a filter to determine the
average voltage over a period in time. DC voltage is
measured through the two test leads connected to a DC
circuit.
aa Volts AC RMS
Measures the effective AC voltage, not the peak voltage
which results in measurements with higher accuracy. The
AC RMS (root mean square) voltage value can be
defined as the equivalent DC voltage of the AC voltage
measured. RMS values are commonly used in AC
electrical measurement, as they are more representative
of DC measurements.
