Scanner Data (Viewing PIDs)
65
Properties

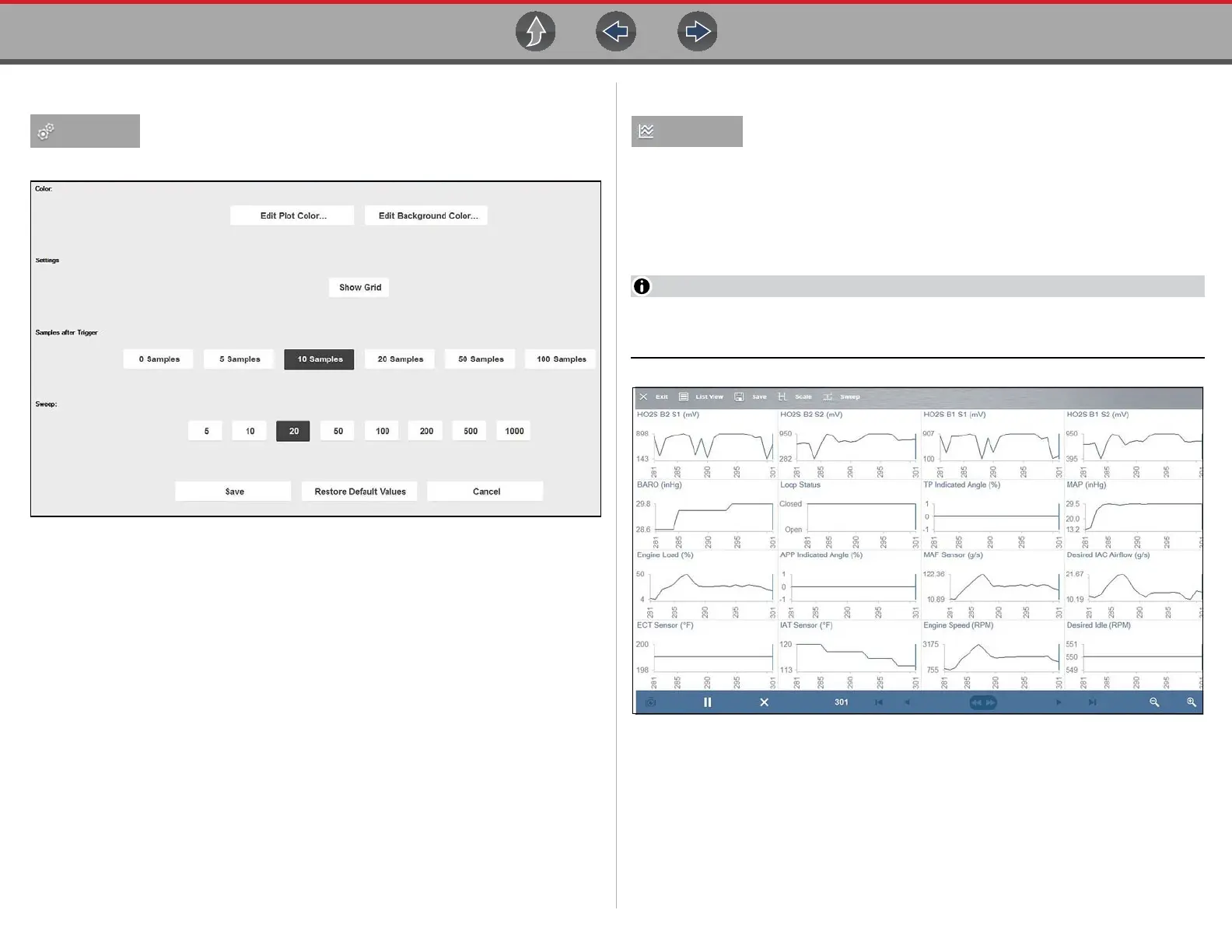

Properties is used to configure (all) graph color, settings, samples
after trigger, and sweep (Figure 5-49).
Figure 5-49 Properties screen
Edit Plot Color and Edit Background Color are used to set graph plot and
background colors.
Show Grid is used to hide/display graph background grid pattern.
Samples After Trigger settings determine how many data samples (number of
frames) are recorded following a trigger event.
Sweep is use to set the amount of data that displays across the graph. Values are
in sample points (frames of data). A frame of data equals one complete
transmission of the serial data by the electronic control module.
Graph View
Graph View allows you to display up to 16 graphs (Figure 5-50). To
view more than one PID in a multi-graph display, select the PID
Expand/Collapse icon to open each PID in graph display you want to include, then
select Graph View from the toolbar. To return to list view, select List View from the
toolbar. The display defaults to a single graph if more than 16 graphs are open
when the toolbar icon is selected. Should this happen, return to the data list and
close some of the graphs.
The screen does not scroll in Graph View mode, it adjusts to show only the
selected parameters.
Figure 5-50 Graph View screen
Graph View mode can also be used from the custom data list configuration screen.
Refer to Custom on page 61 for details.
