Frame Memory Menu
The following are the main parts of the frame memory
menu screen.
a Number of available storage locations
Displays the remaining number of storage locations in
memory and storage.
b File name
Displays the path and name of the file recalled on the
selected FM output (reference FM output selected in pair
mode).
c FM output buttons
The odd-numbered FM output is displayed on the left, and
the even-numbered FM on the right. Pressing a button
selects the FM output as the target for operation.
You can check the button selection state by the color of the
output name and duration indicator area.
• Light blue: Selected FM output (reference FM output
selected in pair mode)
• Orange: Non-reference FM output selected in pair mode
• White output name and black duration indicator area:
Unselected FM output
Thumbnail display area
Displays a thumbnail when a file is recalled on the FM
output.
The following information is also displayed.
• Through: When the input image is output
• Black: When a black signal is output
• Play: During playback
• Record: During recording
Duration indicator area
Displays “Still” for a still image, or the duration in
“mm:ss:ff (minutes:seconds:frames)” format for a clip.
d Pair button
Pressing this button, turning it on, enables pair mode.
e Out Select button
Pressing this button displays a pop-up window where you
can select the FM output pair to display in the FM output
buttons.
Selected FM outputs are displayed in light blue or orange.

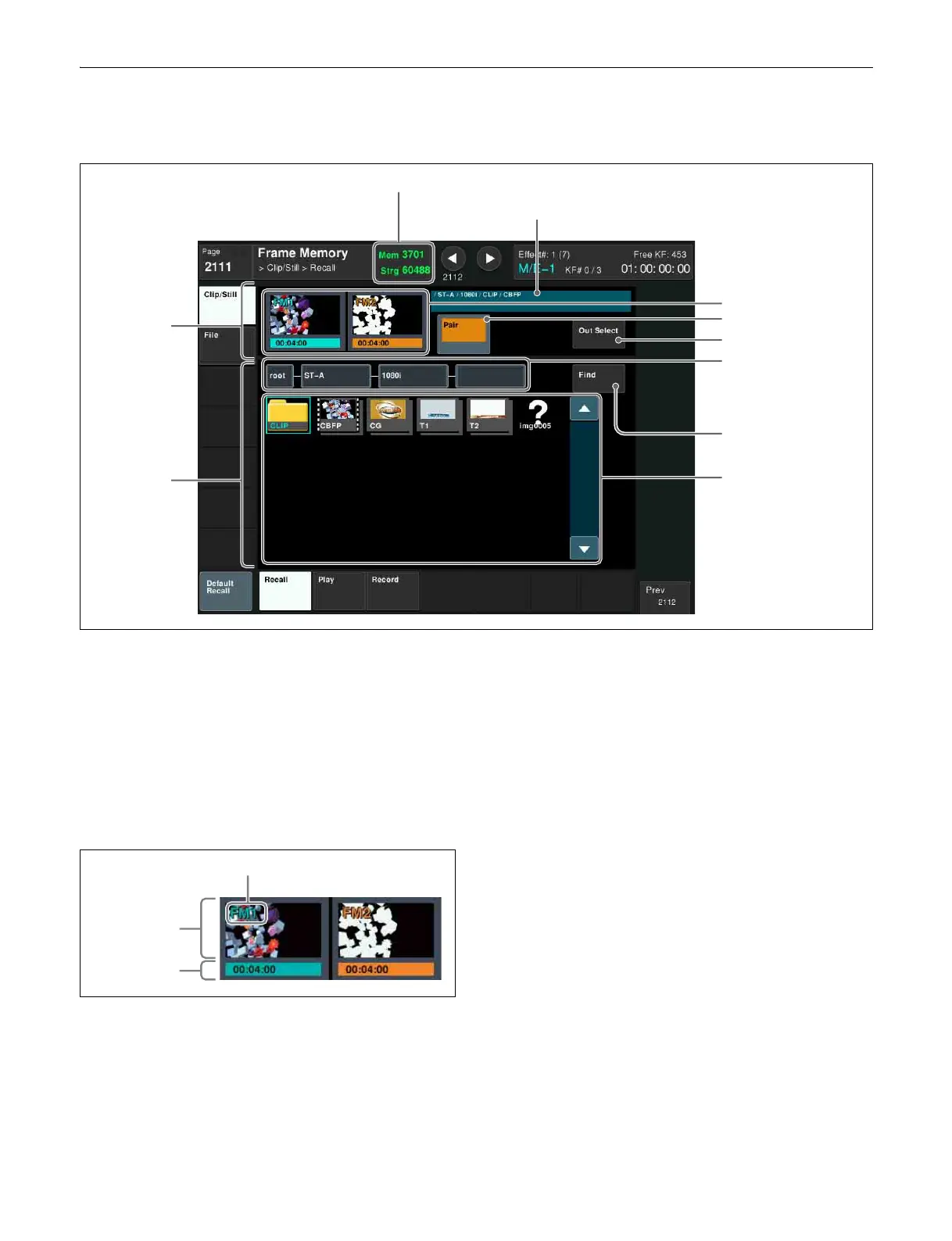

c FM output buttons
e Out Select button
a Number of available storage locations
b File name
g Find button
d Pair button
FM output
selection area
f Folder hierarchy level
selection buttons
h Folder/file display
Folder/file
selection area
Thumbnail
display area
Output name
Duration
indicator area
