193
detent point values by pressing the [CTR] button in the
device control block.
The following table shows the interval between detents
defined for each transform operation mode (see page 193).
a) When a value is smaller than 1, 1/Aspect or 1/Perspective (Z) is adjusted
to an integer value.
Three-dimensional parameter default
values
Each of the transform operation modes has default values
for three-dimensional parameters. If required, you can
return the current value to the defaults by pressing the
[CTR] button in the device control block twice in rapid
succession.
The following table shows the default parameter values for
each transform operation mode.
Resetting of parameter values set in
source space
In some transform operation modes, if you switch to target
space after setting up a three-dimensional transform in
source space, the setting values in source space (three-
dimensional parameter values) are converted to values in
target space (source/target conversion).
Once a conversion has taken place, the original source
space parameters do not return to their original values
when you switch back to source space. They are reset.
Source/target conversion occurs in the following operation
modes:
• Move image (Location XYZ)
• Rotate image (Rotation)
Transform Operation Modes
The following operation modes are available for three-
dimensional DME transforms. These operations are
performed using the device control block (trackball) (see
page 203).

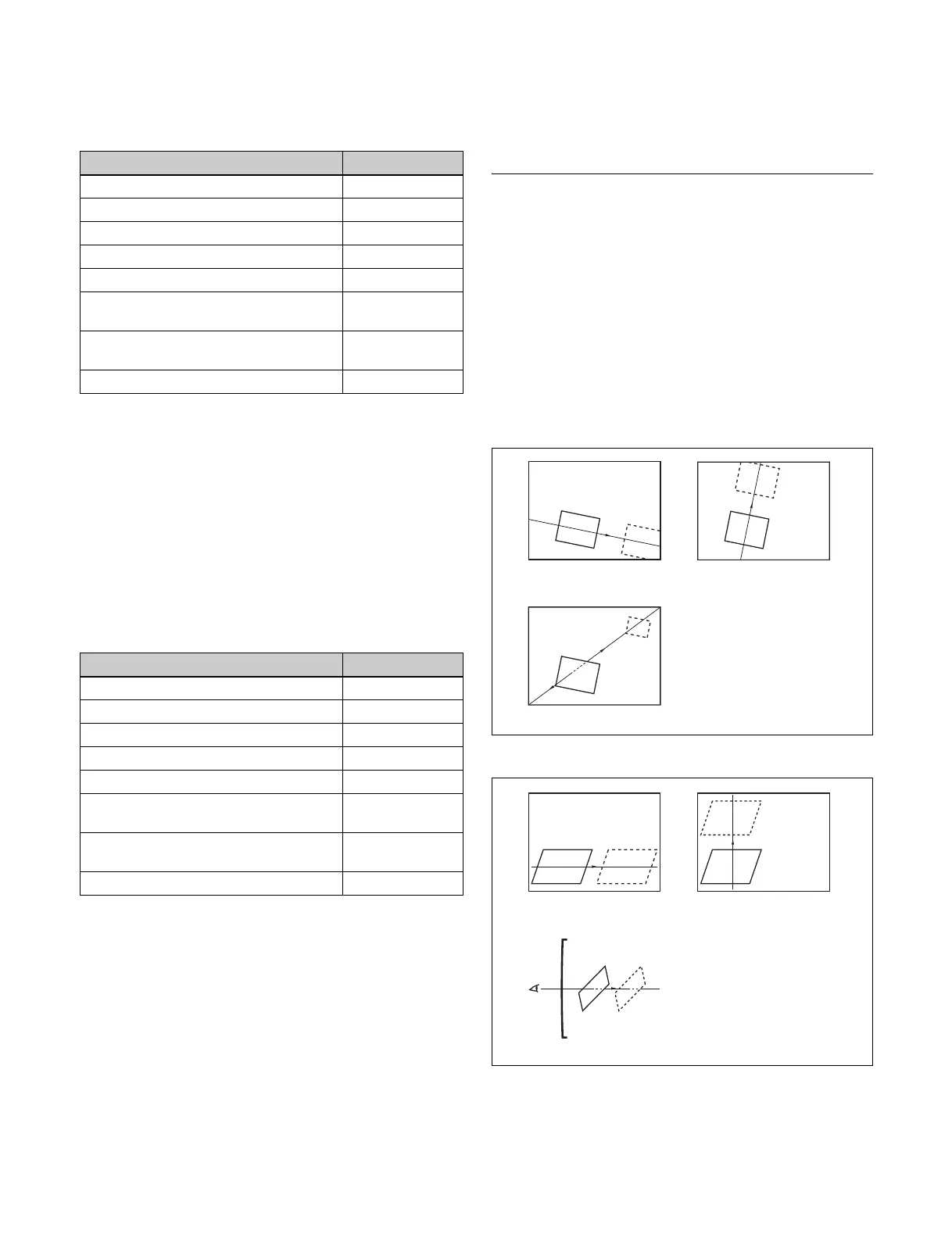

Move image (Location XYZ)
Moves the image on the X-axis, Y-axis, or Z-axis. The
direction of movement differs depending on whether
source space or target space is selected.
Image movement in source space
Image movement in target space
Operation mode Detent interval
Move image (Location XYZ) 1.0000
Rotate image (Rotation, Spin) 0.2500
Move rotation axis (Axis Location) 1.0000
Scale image (Location Size) 0.2500
Change image aspect ratio (Aspect) 1.0000
a)
Change image perspective (Perspective
<X, Y>)
1.0000
Change image perspective (Perspective
<Z>)
1.0000
a)
Change image slope (Skew) 0.1000
Operation mode Default value
Move image (Location XYZ) 0.0000
Rotate image (Rotation, Spin) 0.0000
Move rotation axis (Axis Location) 0.0000
Scale image (Location Size) 1.0000
Change image aspect ratio (Aspect) 1.0000
Change image perspective (Perspective
<X, Y>)
0.0000
Change image perspective (Perspective
<Z>)
1.0000
Change image slope (Skew) 0.0000
Movement on the X-axis
Movement on the Y-axis
Movement on the Z-axis
Movement on the X-axis
Movement on the Y-axis
Movement on the Z-axis
