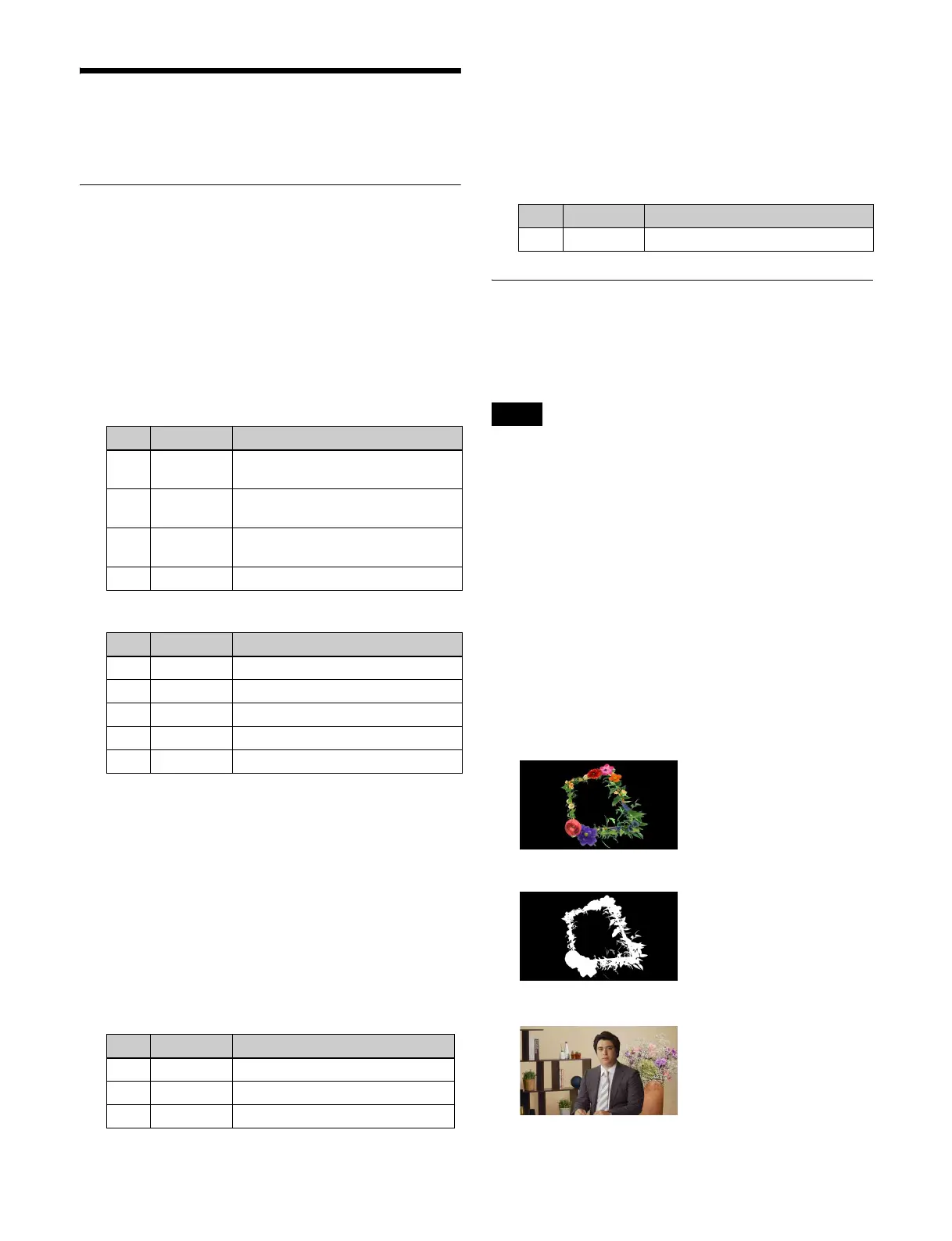

Sony XVS Series - Applying Special Effects (Edge Effects); Border Settings; CG Border Settings

208
Applying Special Effects
(Edge Effects)
Border Settings
Adding a border
1 Open the DME >Edge >Border/Crop menu (4111).
2 Press [Border], turning it on.
3 Set the following parameters.
Selecting the border color
1 In the <Border Fill> group of the Border/Crop menu
(4111), select one of the following.
Flat Color: Single color
Mix Color: Mix color signal set in the DME >Edge
>Color Mix menu (4117) (see page 219)
Ext Video: External video signal input from Ext In
2 When [Flat Color] is selected in step 1 , set the
following parameters.
Softening the border edges
1 In the Border/Crop menu (4111), press [Border Soft],
turning it on.
2 Set the following parameter.
CG Border Settings
This sets the CG border for the selected DME channel.
Using two DME channels enables you to change the
position and size of the image embedded in the border.
• This setting is available only when the signal format is
1080i/59.94 or 1080i/50.
• The CG border cannot be set if the DME channel is used
for the combiner function.
• CG border settings on DME channel 2 or 4 are available
only when the key and DME channel for the CG border
are not assigned in the Engineering Setup >Switcher
>Config >CG Border Int Video Channel Assign menu
(7331.15).
• A CG image video signal must be input on Ext In of
channel 1 (or channel 3) and a CG image key signal must
be input on Ext In of channel 2 (or channel 4)
beforehand.
The following four signals are required for a CG border.
A Border image
B Border image key signal
C Image to be embedded within the border
Parameter group [1/2]
No. Parameter Adjustment
1 H Simultaneously adjust border width
of left and right edges
2 V Simultaneously adjust border width
of top and bottom edges
3 All Simultaneously adjust border width
on all edges
5 Density Border density
Parameter group [2/2]
No. Parameter Adjustment
1 Top Border width on top side
2 Left Border width on left side
3 Right Border width on right side
4 Bottom Border width on bottom side
5 Density Border density
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 Soft Softness of inner edge of border
Notes
Set the background of the
border image to black.
