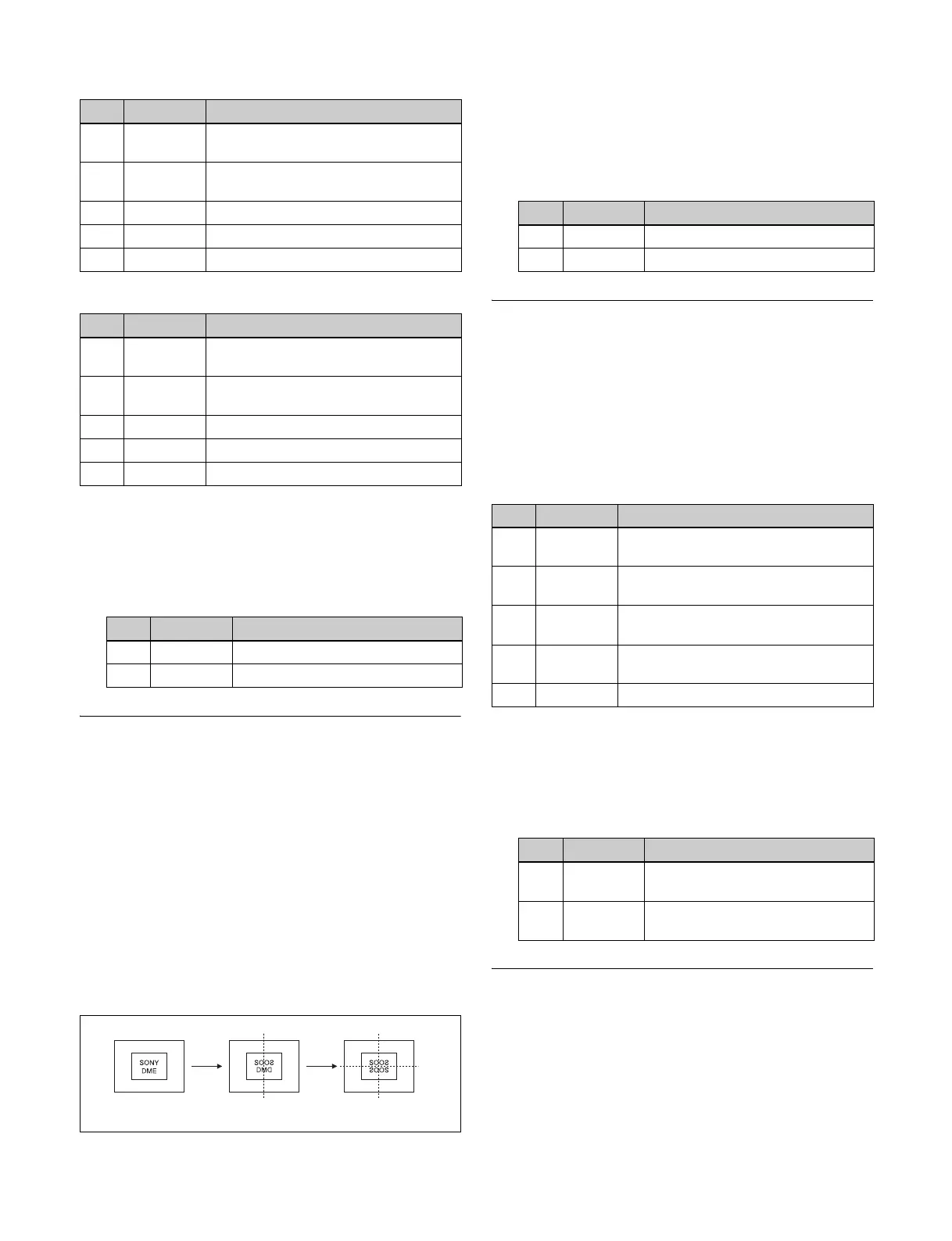

Sony XVS Series - Mirror Settings; Multi Mirror Settings; Kaleidoscope Settings

233
To set the partition position
1 Press [Position].
2 Set the following parameters.
Mirror Settings
You can create an image reflected in the directions left to
right, right to left, bottom to top, top to bottom, or any
combination of directions. You can also set the position of
the border between the original and reflections.
Applying the Mirror effect
In the Non Linear >Mirror menu (4141.13), set the
reflection method (multiple selection supported).
Left to Right: Reflect left side on right.
Right to Left: Reflect right side on left.
Top to Bottom: Reflect top side on bottom.
Bottom to Top: Reflect bottom side on top.
To set the position of the border between the
original and reflection
1 Press [Position].
2 Set the following parameters.
Multi Mirror Settings
You can set the width of the original, the center position of
the original, the offset of the image with fixed mirrors, the
direction of the mirrors, and other parameters.
Applying the Multi Mirror effect
In the Non Linear >Multi Mirror menu (4141.14), set the
following parameters.
To set the center position of original image
1 Press [Position].
2 Set the following parameters.
Kaleidoscope Settings
You can set the number of blocks, the partition reference
point and angle, horizontal and vertical offsets, a reflection
position, and other parameters.
Parameter group [1/2]
No. Parameter Adjustment
1 Transition
H
Degree of transition in horizontal
direction
2 Random H Degree of randomness in distance
moved by blocks in horizontal direction
3 Skew H Degree of skew in horizontal direction
4 Width H Horizontal width of partition
5 Angle Angle of partition line
Parameter group [2/2]
No. Parameter Adjustment
1 Transition
V
Degree of transition in vertical direction
2 Random V Degree of randomness in distance
moved by blocks in vertical direction
3 Skew V Degree of skew in vertical direction
4 Width V Vertical width of partition
5 Angle Angle of partition line
No. Parameter Adjustment
1 H Horizontal partition position
2 V Vertical partition position
Left to Right
Top to Bottom
No. Parameter Adjustment
1 H Horizontal border position
2 V Vertical border position
No. Parameter Adjustment
1 Interval H Horizontal distance between mirrors
(original width)
2 Offset H Horizontal offset of image with fixed
mirrors
3 Interval V Vertical distance between mirrors
(original width)
4 Offset V Vertical offset of image with fixed
mirrors
5 Angle Mirror angle
No. Parameter Adjustment
1 H Original image center position in
horizontal direction
2 V Original image center position in
vertical direction
