Signal Selection and
Transitions
Image Creation Operation Flow
The switch from the current video feed (appearing on the
switcher bank program monitor) to a new video feed is
referred to as a transition.

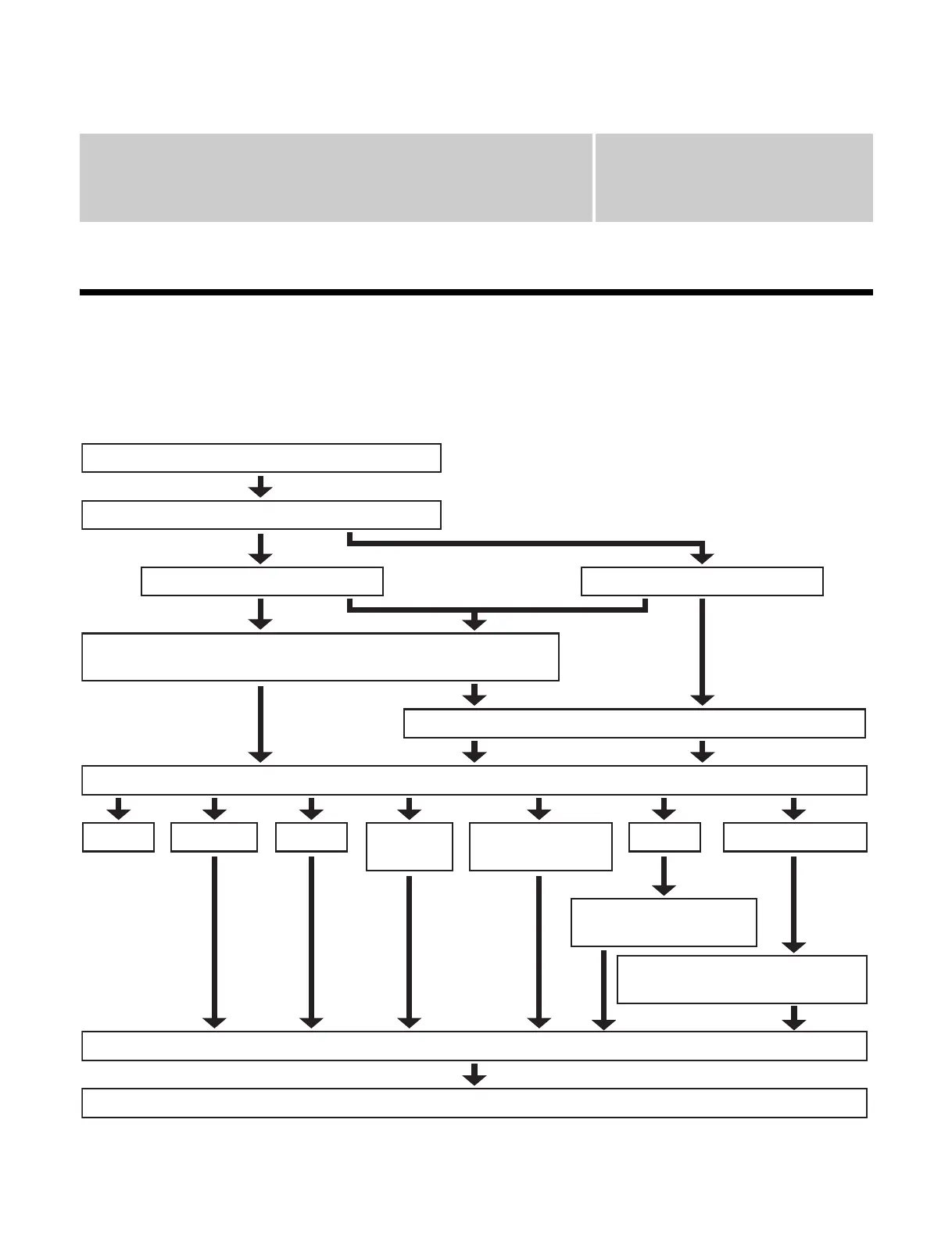

The following illustration shows the flow of operations for
carrying out a transition on an M/E bank or the PGM/PST
bank.
Select current background video
Select next transition
Background Key 1 to key 8
Select new background video
Make key settings (page 99)
Select transition type (page 77)
Cut
Mix
Super mix
Preset
Color mix
Wipe
DME wipe
Make wipe settings
(page 131)
Make DME wipe settings
(page 144)
Preview the effect of transition (page 91)
Execute the transition (page 84)
