182

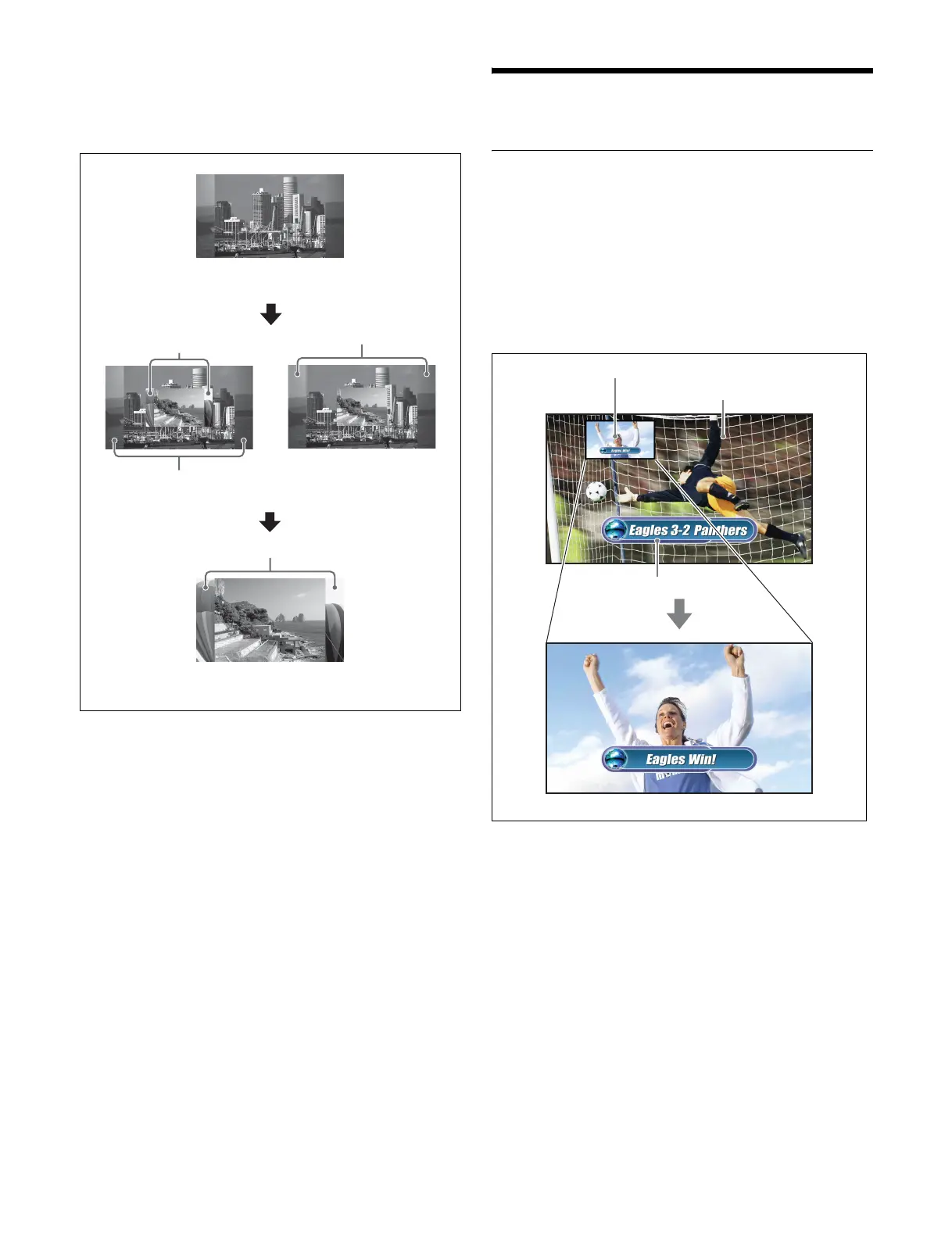

DME wipe from a 4:3 image to another 4:3
image (side flags enabled for both images)
Wipe action using squeeze (pattern number 1031)
Multi Program 2
Overview
By operating the switcher in Multi Program 2 mode, single
switcher M/E hardware can be subdivided to create
separate main and sub video outputs. You can set separate
backgrounds, keys, and transitions for the main and sub
outputs. However, keys 2 to 8 are common to main and
sub.
Program output for “Main”
4:3 image
(Side flags: enabled)
Side flag areas
4:3 image
(Side flags: enabled)
Side flag areas
Auto crop: disabled
Side flag areas
Auto crop: enabled
Side flag areas
Background B
Key (key 1 to key 8 are available
on the main side.)
Background A
