225
a) When a minus value is specified, the picture is extended in the
vertical direction. When a plus value is specified, the picture is
extended in the horizontal direction.
When selecting [Angle] in the <Rotation> group
and slanting the pattern
a) –1.00 is one rotation in the counterclockwise direction. +1.00 is one
rotation in the clockwise direction. 0.00 is no rotation.
When selecting [Speed] in the <Rotation> group
and rotating the pattern at a constant speed
a) –100.00 is four rotations per second in counterclockwise direction.
+100.00 is four rotations per second in clockwise direction. 0.00 is in
stationary state.

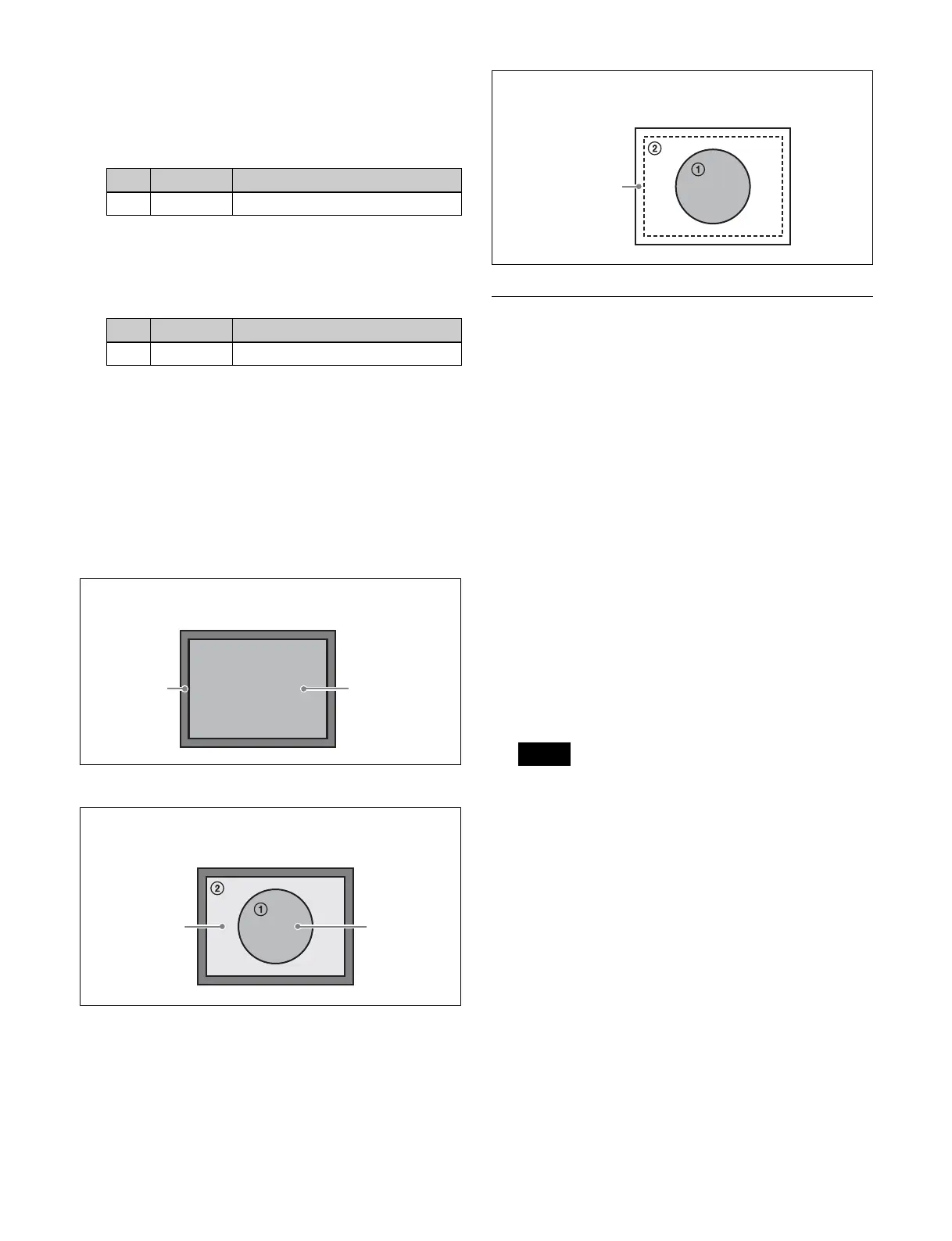

Notes on applying a mask effect with a DME
If [Effect Gp1] and [Effect Gp2] are simultaneously
enabled in the <Mask> group of the DME >Video Modify
>Mask menu (4127), then the border or beveled edge is
also masked.
The following describes masking using a round pattern as
an example.
m
m
If [Effect Gp2] is enabled from image 2, then the mask
should be applied to portion 2 only, but in fact the border
or beveled edge is also masked.
Freeze Settings
The following types of effect are available to freeze the
input video.
Hard Freeze: Freezes the input video and pauses at an
arbitrary position.
Time Strobe: Freezes the input video and pauses at
specified intervals and duration.
Film: Frame advance effect like in movie films. You can
specify the frame advance rate.
In Hard Freeze and Time Strobe, you can select the first
field or the frame as the freeze timing.
Freezing using Hard Freeze
1
Open the DME >Freeze >Freeze menu (4131).
2
In the <Freeze Timing> group, select the freeze
timing.
Frame: Freeze the signal using frame units.
Field1: Freeze the first field of the signal.
The freeze timing setting is not required when the
following signal formats are being used.
1080P/50, 1080P/59.94, 1080PsF/23.98, 1080PsF/24,
1080PsF/25, 1080PsF/29.97, 720P/50, 720P/59.94
3
In the <Freeze> group, press [Hard Freeze], turning it
on.
Freezing using Time Strobe
1
Open the DME >Freeze >Freeze menu (4131).
2
In the <Freeze Timing> group, select the freeze
timing.
Frame: Freeze the signal using frame units.
Field1: Freeze the first field of the signal.
No. Parameter Adjustment
1 Angle Rotation angle of pattern
a)
No. Parameter Adjustment
1 Speed Rotation speed of pattern
a)
Image with “Mono”
and “Defocus”
applied
Image 1: Image before applying mask
Border or
beveled edge
Image 2: State with [Effect Gp1] only enabled
Portion 2 has
“Mono” masked,
and “Defocus”
only applied.
Portion 1
has both
“Mono” and
“Defocus”
applied.
Note
Image 3: State with [Effect Gp1] and [Effect Gp2] enabled
The border or
beveled edge effect
is also masked.
