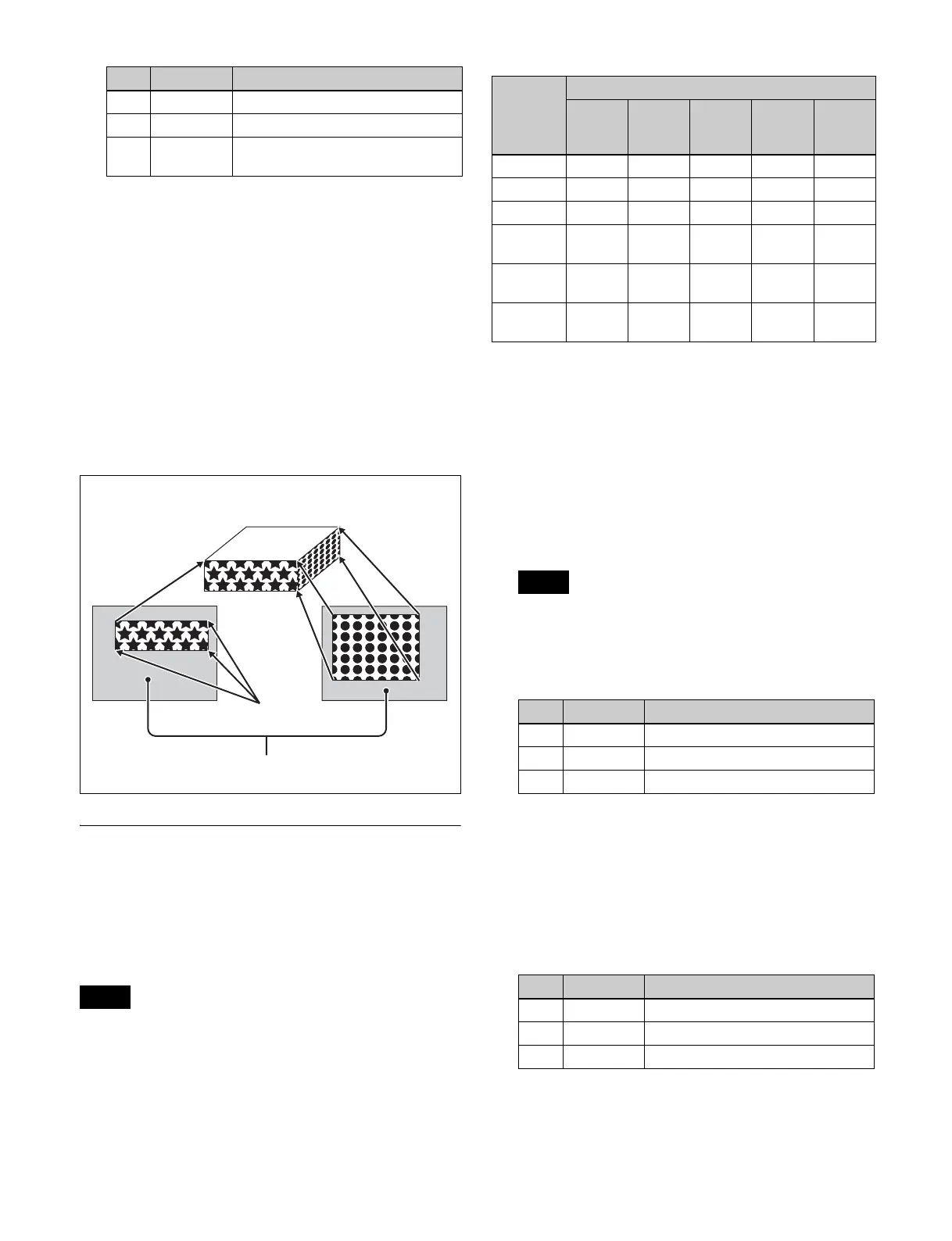

Sony XVS Series

259
The parts of the image defined by Top, Left, Right, and
Bottom are magnified or shrunk to fit into Side V or
Side H.
To invert the image in a side view
For example, to invert the image on the front of Side H,
press the following buttons in the <Side H Front> group,
turning them on.
Invert H: Invert horizontally.
Invert V: Invert vertically.
For the images on the other sides, use a similar operation
in the following groups:
• Back image of Side H: <Side H Back> group
• Front image of Side V: <Side V Front> group
• Back image of Side V: <Side V Back> group
Shadow Settings
This effect uses two successive channels.
You can adjust the position and density of the shadow with
respect to the image, and the color of the shadow.
The channel with the largest number (for example, Ch2 in
the case of Ch1 and Ch2) becomes the shadow.
When the combiner function is disabled, the shadow
function cannot be used.
Applying a Drop Shadow
Depending on the combiner channel selection, the buttons
that can be used varies as follows.
This section describes adding a drop shadow using Ch1
and Ch2 as an example.
1 Open the Global Effect >Ch1-Ch4 >Shadow menu
(4213).
2 Press [Ch1 Shadow], turning it on.
Drop Shadow is enabled, and channel 2 becomes the
channel for the shadow to the image.
You can adjust the position and density of the shadow.
The flex shadow function cannot be enabled when
Drop Shadow is enabled.
3 Set the following parameters.
4 In the <Ch1 Shadow Source> group, select the shadow
signal.
Video: Select Ch2 video input as the shadow.
Flat Color: Select a single color matte as the shadow.
5 When [Flat Color] is selected in step 4, set the
following parameters.
3 Right Position of right crop
4 Bottom Position of bottom crop
5 Rotation Angle of rotation, when rotated
around the Z-axis in source space
Note
No. Parameter Adjustment
Top side
Side V
Magnified or
shrunk to fit
Actual size,
upper left
corner
Set automatically
Cropped region
Compress
Crop
Side H
Combiner
channel
selection
Button
Ch1
Shadow
Ch2
Shadow
Ch3
Shadow
Ch1+
Ch2
Shadow
Ch2+
Ch3
Shadow
Ch1+Ch2 Valid
Ch2+Ch3 Valid
Ch3+Ch4 Valid
Ch1+Ch2+
Ch3
Valid Valid Valid
Ch2+Ch3+
Ch4
Valid Valid Valid
Ch1+Ch2+
Ch3+Ch4
Valid Valid Valid Valid
Note
No. Parameter Adjustment
1 Position H Horizontal shadow position
2 Position V Vertical shadow position
3 Density Density of shadow
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
