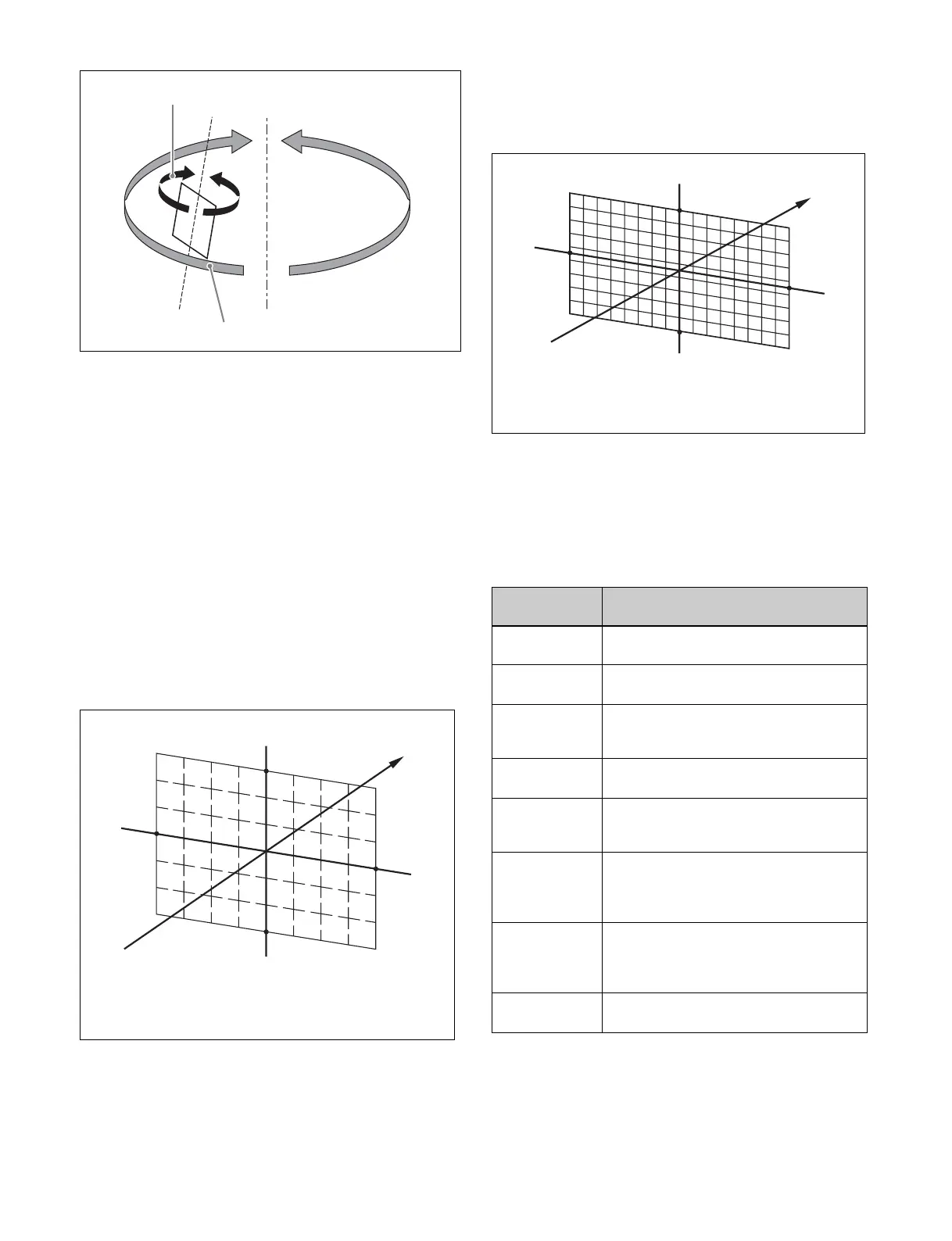

Three-dimensional parameters
Three-dimensional parameters are X, Y, and Z values
which define the position of an image, its axis of rotation,
the position of the virtual viewpoint of the image, and so
on.
The standard values of parameters are as follows,
depending on the aspect ratio of the monitor (4:3 or 16:9).
Values for 4:3 mode
• Origin at center of image (source space) or center of
monitor (target space)
X = 0.00, Y = 0.00, Z = 0.00
• Upper right corner of image or monitor
X = 12.00, Y = 9.00, Z = 0.00
• Lower left corner of image or monitor
X = –12.00, Y = –9.00, Z = 0.00
Values for 16:9 mode
• Origin at center of image (source space) or center of
monitor (target space)
X = 0.00, Y = 0.00, Z = 0.00
• Upper right corner of image or monitor
X = 16.00, Y = 9.00, Z = 0.00
• Lower left corner of image or monitor
X = –16.00, Y = –9.00, Z = 0.00
Valid values of three-dimensional parameters
The following table shows the valid range of three-
dimensional parameters for transforms. The three-
dimensional parameters of an image change when you use
the trackball or Z-ring to execute a transform. You can also
execute a transform by changing parameter values entered
on the numeric keypad control block.
Detents
The system defines points called detents at regular
intervals in three-dimensional space. You can change the
current three-dimensional parameter values to the nearest
Rotation around Y-axis in local space
Rotation around Y-axis in global space
Z-axis –
The plus direction on the
Z-axis is into the image
or monitor screen.
X-axis
Y-axis
X-axis
Y-axis
Z-axis +
+9
+12
–9
–12
Operation
mode
Valid range of parameter values
Move image
(Location XYZ)
–999.9999 to +999.9999
Rotate image
(Rotation, Spin)
–999.9999 to +999.9999
Move rotation
axis
(Axis Location)
–999.9999 to +999.9999
Scale image
(Location Size)
0.0000 to +999.9999
Change image
aspect ratio
(Aspect)
0.0000 to +2.0000
Change image
perspective
(Perspective
<X, Y>)
–999.9999 to +999.9999
Change image
perspective
(Perspective
<Z>)
0.0000 to 999.9999
Change image
slope (Skew)
–9.9999 to +9.9999
Z-axis –
The plus direction on
the Z-axis is into the
image or monitor
screen.
X-axis
Y-axis
Z-axis +
X-axis
Y-axis
+9.00
+16.00
–16.00
–9.00
