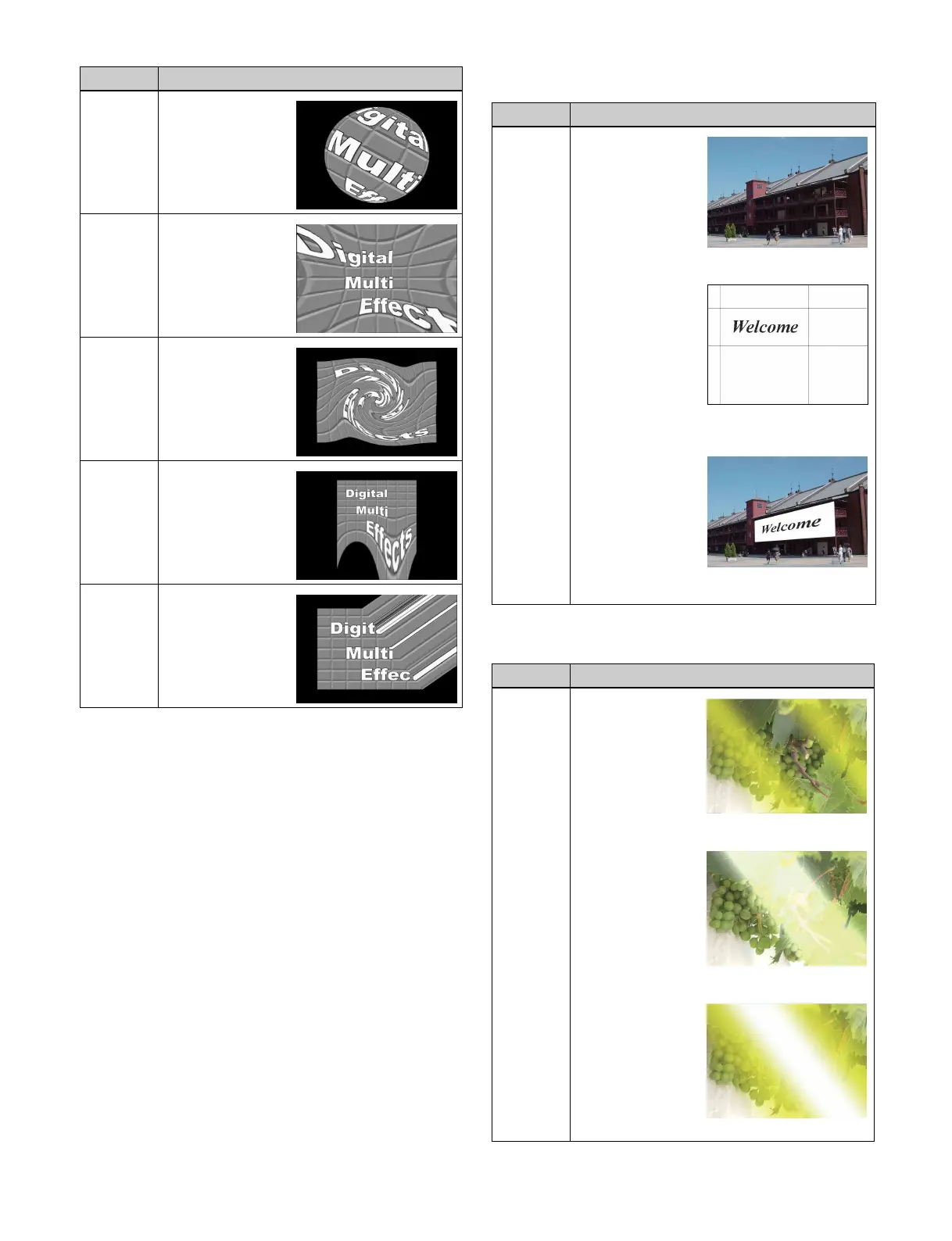

Corner pinning effect
Lighting effects
Sphere
(see
page 236)
Wraps the whole
image around a
sphere.
Explosion
(see
page 236)
Divides the image
into fragments
which spread out
as they fly out.
Swirl
(see
page 237)
Swirls the image
into a spiral.
Melt
(see
page 237)
Melts the image
away from a
specified part.
Character
Tra i l
(see
page 238)
Extends the edge
of the image like a
trail.
Effect Description/Image
Effect Description/Image
Corner
Pinning
(see
page 253)
Pins the four
corners of the
foreground to
arbitrary positions
on the background
and inserts the
foreground image,
modifying the
foreground shape
to fit the
quadrilateral shape
defined by the
corners.
Effect Description/Image
Lighting
(see
page 238)
Produces the
effect of light
striking the image.
Background
Foreground
(cropped state)
Corner pinning
[Crop Link] enabled
Normal
Specular
Mat
