204
The [LOCAL] and [GLB] buttons can be selected at
the same time.
[SRC] button: Selects source space.
[TRGT] button: Selects target space.
Only the [SRC] button or the [TRGT] button can be
selected.
4
Press the button for the desired operation, turning it on,
to select the transform operation mode (see page 193).
To move the image: Press the [LOC XYZ] button,
turning it on.
You can move the image on the X- and Y-axes
using the trackball and move it on the Z-axis using
the Z-ring. Or you can pressing the [LOC SIZE]
button, turning it on, to move the image on the X-
and Y-axes using the trackball.
To rotate the image: Press the [ROT] button, turning
it on.
You can rotate the image on the X- and Y-axes
using the trackball and rotate it on the Z-axis using
the Z-ring.
To rotate the image in Spin mode, press and hold
the [SHIFT] button and press the [ROT] button,
turning it on, to operate in the same way using the
trackball and Z-ring.
To move an axis of rotation of the image: With the
[SRC] button selected in step 3, press the [AXIS
LOC] button, turning it on.
You can move the axis of rotation of the image on
the X- and Y-axes of the image using the trackball,
and on the Z-axis using the Z-ring.
To magnify or shrink the image: Press the [LOC
SIZE] button, turning it on.
This enables you to magnify and shrink the image
using the Z-ring. Rotate counterclockwise to
shrink, and clockwise to magnify.
To change the aspect ratio of the image: With the
[SRC] button selected in step 3, press the [ASP
PERS] button, turning it on.
You can change the aspect ratio independently on
the X- and Y-axes using the trackball, and change
it simultaneously on both the X- and Y-axes using
the Z-ring.
To change the perspective of the image: With the
[TRGT] button selected in step 3, press the [ASP
PERS] button, turning it on.
You can change the perspective of the image on
the X- and Y-axes using the trackball, and change
the distance to the viewpoint position using the Z-
ring.
To change the skew of the image: With the [SRC]
button selected in step 3, press and hold the
[SHIFT] button and press the [ASP PERS] button,
turning it on.
You can change the skew of the image along the
X- and Y-axes using the trackball.
5

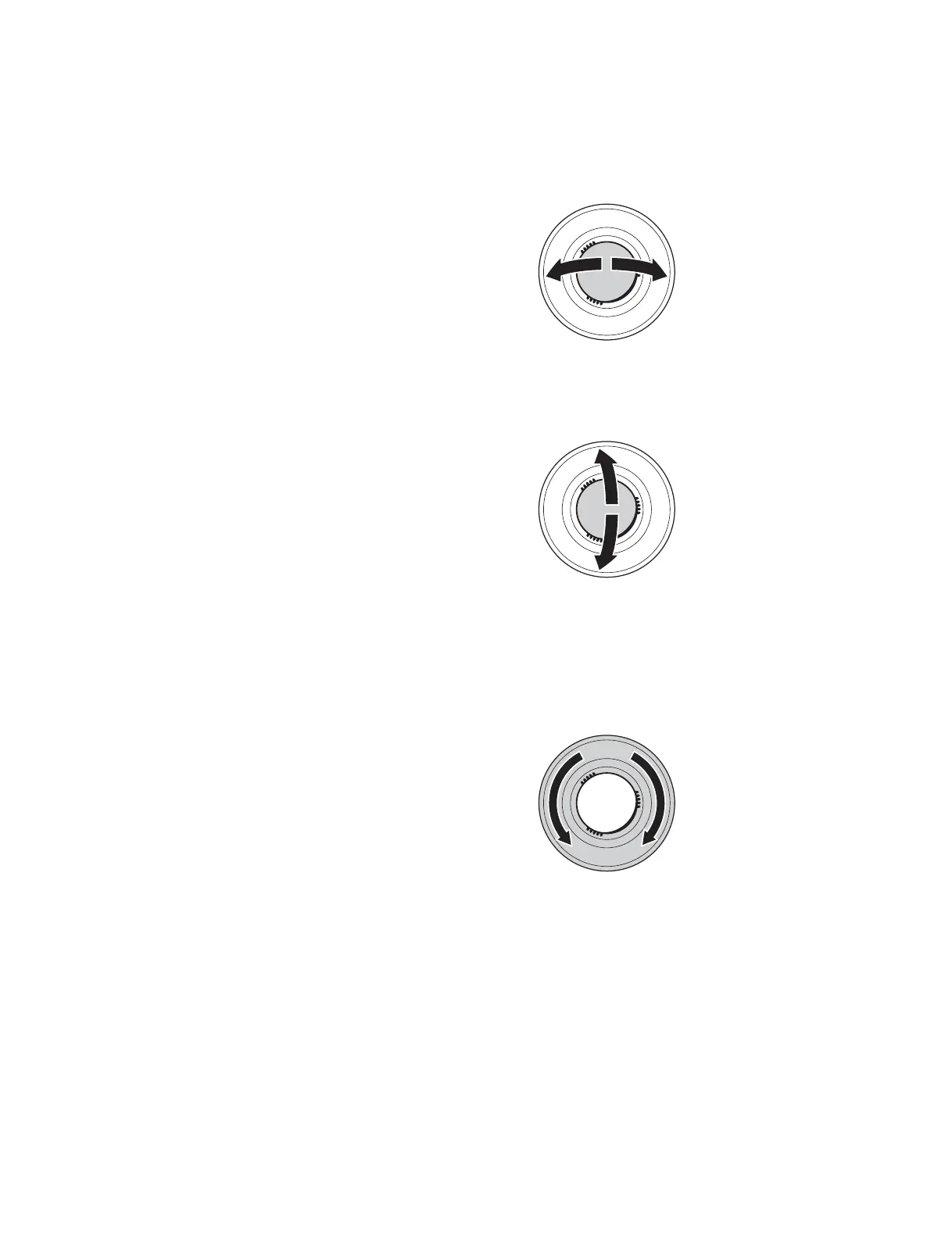

Depending on the axis of the change, operate the
trackball and Z-ring as follows.
• To change on the X-axis, rotate the trackball
horizontally.
Parameter values increase as you rotate to the right,
and decrease as you rotate to the left.
• To change on the Y-axis, rotate the trackball
vertically.
Parameter values increase as you rotate upward, and
decrease as you rotate downward.
• To change on the Z-axis, rotate the Z-ring.
Parameter values increase as you rotate clockwise,
and decrease as you rotate counterclockwise.
However, if you have pressed the [LOC XYZ]
button or [AXIS LOC] button, the parameter values
increase as you rotate counterclockwise, and
decrease as you rotate clockwise.
To reduce the rate of change of the parameters
(fine mode)
Press the [FINE] button, turning it on.
This enables fine control using the trackball and Z-
ring.
6
To restrict the change in the transform to a specific
axis, press the [X], [Y], or [Z] button, tuning it on.
This enables the trackball and Z-ring operations on the
selected axis only.
