Sony XVS Series

239

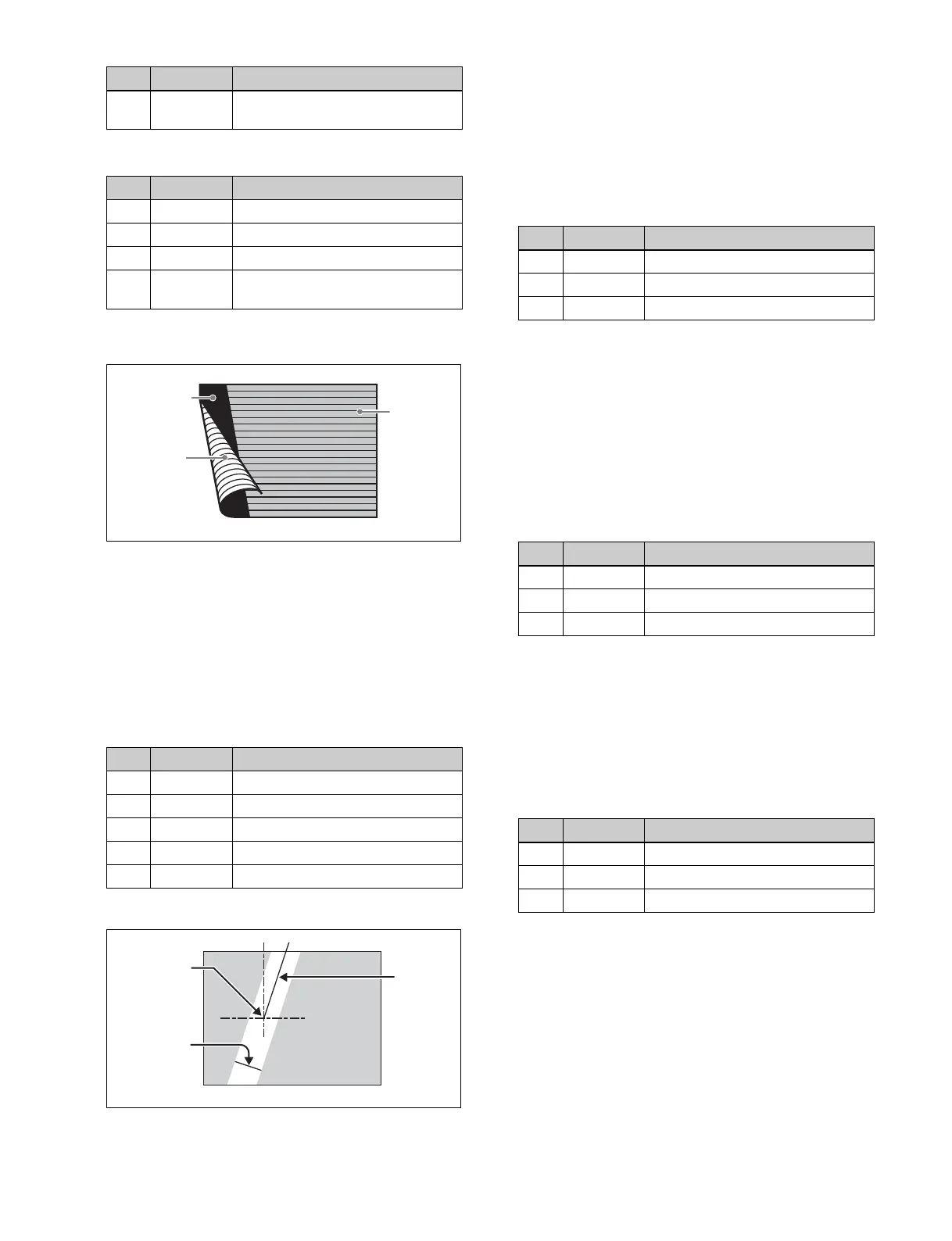

When [Preset] is selected
a) Setting is available when Page Turn, Roll, Cylinder, or Sphere
nonlinear effect is selected.
Setting the bar shape of the highlight area
When [Bar] or [Preset] is selected in step 3 of “Applying
the Lighting effect” (page 238), set the bar shape.
1 In the DME >Light/Trail >Lighting menu (4151),
press [Light Modify].
2 Set the following parameters.
a) There are some nonlinear effects for which this cannot be set.
Setting the color of the light in the
highlight area
1 In the DME >Light/Trail >Lighting menu (4151),
press [Light Color].
2 Set the following parameters.
Setting the bar shape of the shade area
When [Preset] is selected in step 3 of “Applying the
Lighting effect” (page 238), set the bar shape of the shade
area.
1 In the DME >Light/Trail >Lighting menu (4151),
press [Shade Modify].
2 Set the following parameters.
Setting the color of the light in the shade
area
1 In the DME >Light/Trail >Lighting menu (4151),
press [Shade Color].
2 Set the following parameters.
Setting the bar mode of the highlight area
When [Bar] is selected in step 3 of “Applying the Lighting
effect” (page 238), set the bar mode of the highlight area.
1 In the <Bar Light Mode> of the DME >Light/Trail
>Lighting menu (4151), select the bar mode.
Normal: Emphasizes the bar highlight area.
Specular: Creates an effect like light striking a surface
with metallic reflections.
5Total
Ambient
Brightness of whole image
No. Parameter Adjustment
1 Light Intensity of light in highlight area
2 Ambient Intensity of light in ambient area
3 Shade
a)
Intensity of light in shade area
5Total
Ambient
Brightness of whole image
No. Parameter Adjustment
1 X X-value of bar center point
2 Y Y-value of bar center point
3Angle
a)
Angle of bar
4 Width Width of bar
5 Soft Softness of boundary
No. Parameter Adjustment
Shade
area
Highlight
area
Ambient
area
Center point
of bar
Angle of
bar
Width of
bar
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 X X-value of bar center point
4 Width Width of bar
5 Soft Softness of boundary
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
