Sony XVS Series

256

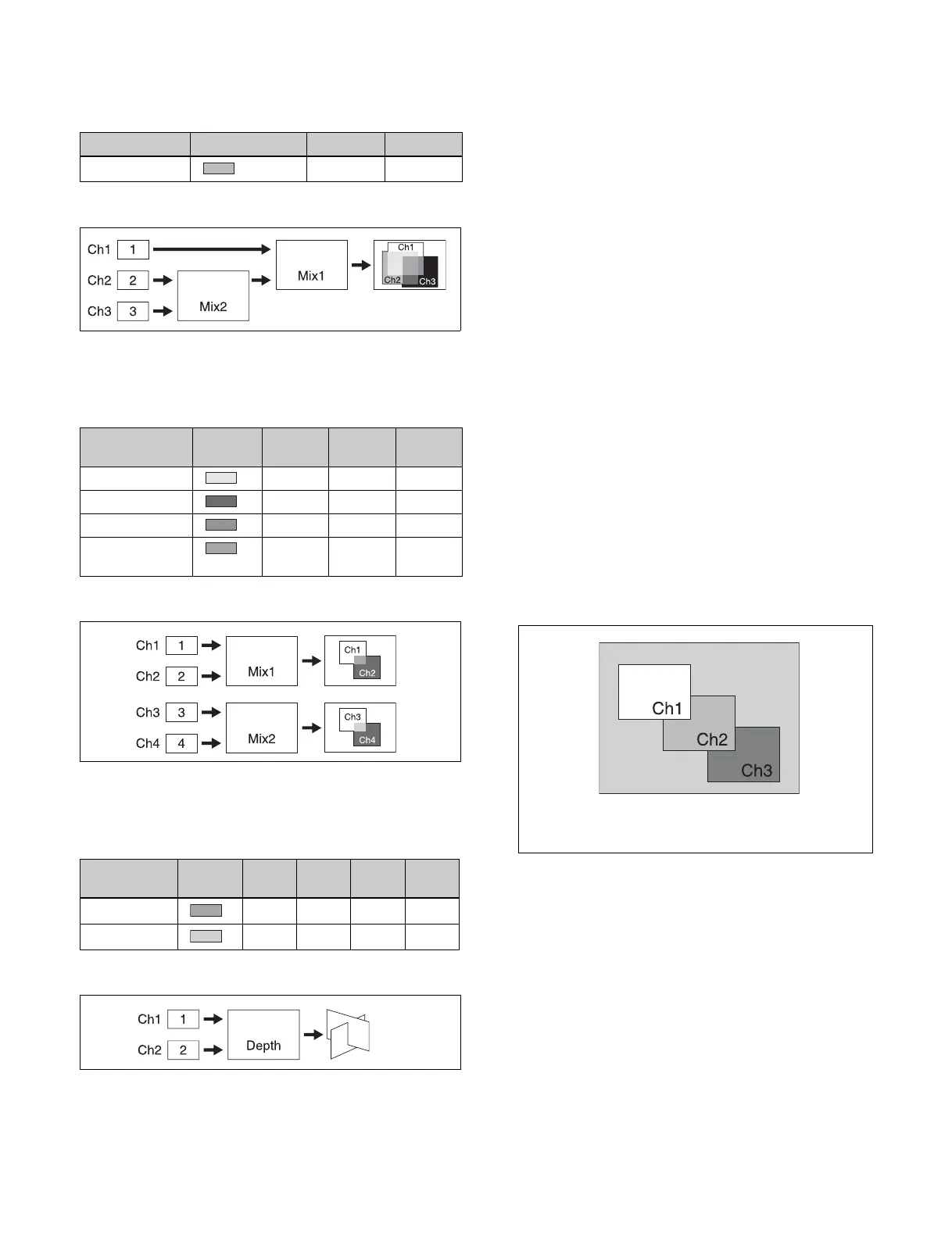

If the Mix setting is set to 70, the proportion of the
channels in the mixed portion in the previous illustration is
as shown in the following table.
Mix of Ch1, Ch2, and Ch3
If the Mix1 setting is set to 70 and the Mix2 setting is set
to 40, the proportions of the channels in the mixed portions
in the previous illustration are as shown in the following
table.
Mix of Ch1 and Ch2 / mix of Ch3 and Ch4
If the Mix1 setting is set to 70 and the Mix2 setting is set
to 40, the proportions of the channels in the mixed portions
in the previous illustration are as shown in the following
table.
Ch1 crossed with Ch2
To check the set status of channels
Press the menu title button at the top left of the Global
Effect menu.
The Global Effect >Status menu (4200) appears.
You can check the channel combinations, output, and other
settings.
Setting the combiner
The setup menu display varies depending on the combiner
usage status.
This section describes “Ch1+Ch2+Ch3” and “Ch1+Ch2,
Ch3+Ch4” as examples.
1 Open the Global Effect >Ch1-Ch4 >Combiner Priority
menu (4211).
2 Disable [Mix], [Auto], and [Depth], if enabled.
Press [Mix], [Auto], and [Depth], as required, turning
them off.
3 Carry out the following operation, depending on the
type of combination.
For “Ch1+Ch2+Ch3”
In the <Priority1> to <Priority3> groups, press [Ch1],
[Ch2], and [Ch3], respectively, to set the overlap
priority.
Priority1: Select the channel with the highest priority.
Priority2: Select the channel with the second highest
priority.
Priority3: Select the channel with the lowest priority.
For “Ch1+Ch2, Ch3+Ch4”
Press [Ch1] and [Ch2] in the <Combiner1 Priority1>
and <Combiner1 Priority 2> groups, respectively, and
press [Ch3] and [Ch4] in the <Combiner2 Priority1>
and <Combiner2 Priority2> groups, respectively, to
set the priorities for overlaying the images.
Combination Color in figure Ch1 Ch2
Ch1 and Ch2 30% 70%
Combination Color in
figure
Ch1 Ch2 Ch3
Ch1 and Ch2 30% 70% –
Ch2 and Ch3 – 60% 40%
Ch1 and Ch3 30% – 70%
Ch1, Ch2, and
Ch3
30% 42% 28%
Combination Color in
figure
Ch1 Ch2 Ch3 Ch4
Ch1 and Ch2 30% 70% – –
Ch3 and Ch4 – – 60% 40%
Priority1: Ch1
Priority2: Ch2
Priority3: Ch3
