You can select a screen layout from the following eight
options.
1
In the Engineering Setup >Switcher >Output menu
(7333), press [Multi Viewer].
The Multi Viewer menu (7333.9) appears.
2
In the <Multi Viewer> group, select the target multi
viewer (1 or 2) to set.
The status area shows a list of signals that can be
assigned to the sub screens.
3
In the <Split Mode> group, set the screen layout.
Split 4: Split the screen into 4 sub screens.
Split 10: Split the screen into 10 sub screens.
Split 13: Split the screen into 13 sub screens.
Split 16: Split the screen into 16 sub screens.
When [Split 10] or [Split 13] is selected, set the layout
pattern.
a) For [Split 10], patterns 1 and 2 are available. For [Split 13], patterns
1 to 4 are available.
4
To display a border on the sub screens, press [Border
Enable], turning it on.
Tally display
Tallies are shown on the multi viewer screen for the signals
used in the on-air video.
The tally is represented by sub screen borders using the
following two colors.
Red: Video with red tally (on-air tally)
Green: Video with green tally
For details about tally settings, see “Setting the On-Air
Tally” (page 392) and “Configuring Tally Generation”
(page 430).
When [Independ] is selected in the <Tally Type> group in
the Engineering Setup >Panel >Operation >Button Tally
menu (7326.9), tallies are not displayed on the multi-
viewer screen.
To display the name of a sub screen
You can display the name of the assigned signal on the sub
screens.
1
In the Engineering Setup >Switcher >Output >Multi
Viewer menu (7333.9), select the target sub screen to
set.
To make the setting for all sub screens, press [ALL].
2
Press [Name Enable], turning it on.
3
Set the display position of the name.

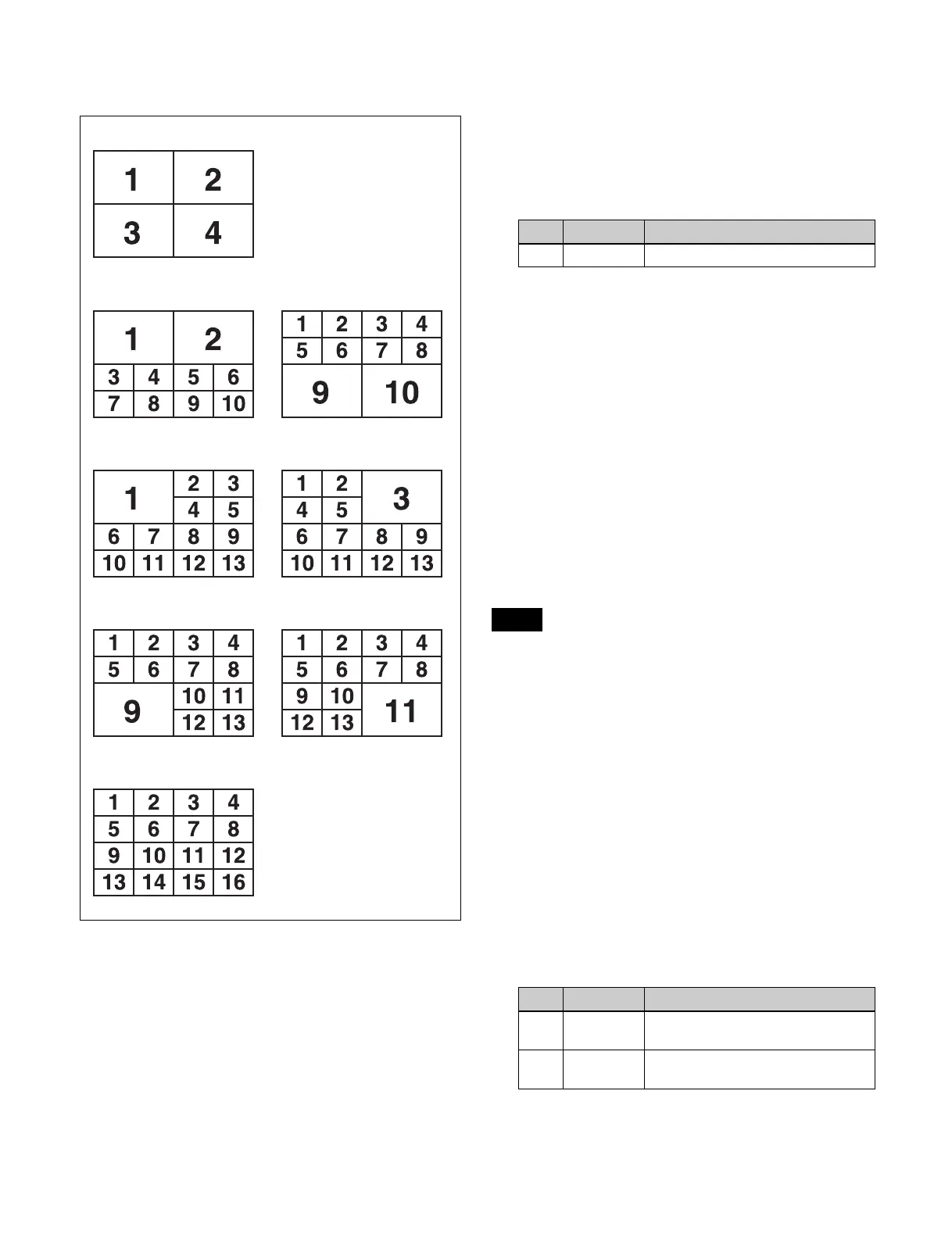

Split-by-4 screen
Split-by-10 screen: Pattern 1 Split-by-10 screen: Pattern 2
Split-by-13 screen: Pattern 1 Split-by-13 screen: Pattern 2
Split-by-13 screen: Pattern 3 Split-by-13 screen: Pattern 4
Split-by-16 screen
No. Parameter Adjustment
4 Pattern Screen split pattern
a)
Note
No. Parameter Adjustment
2 Name
Position H
Horizontal position
3 Name
Position V
Vertical position
