Sony XVS Series

61

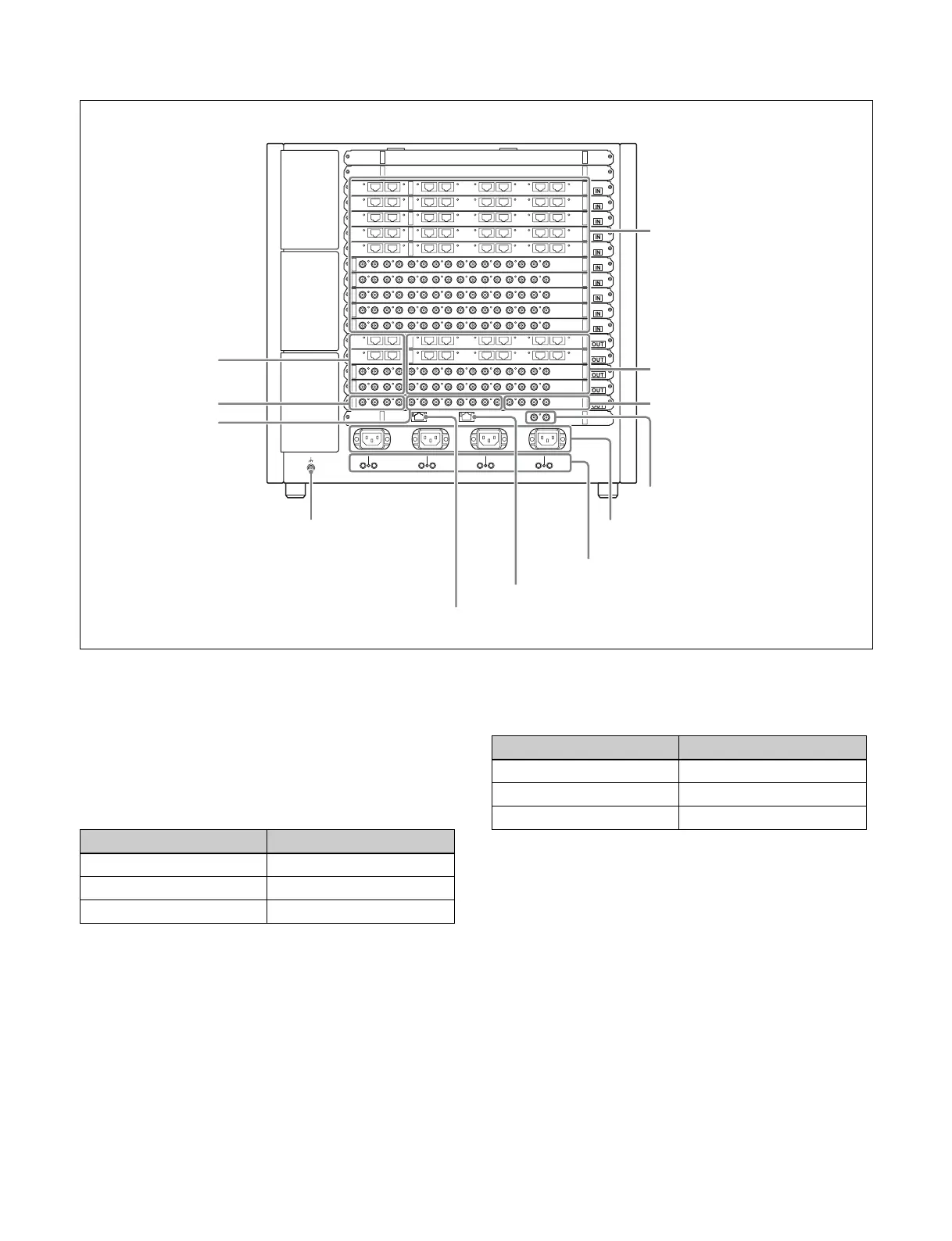

Rear view
a INPUT 1 to 160 connectors (BNC type: XKS-
S8110, RJ-45 type: XKS-T8110)
Up to 160 serial digital video signals can be input. The
number of connectors (slots) available depends on the
number of XKS-S8110 or XKS-T8110 boards installed.
In 4K format, four connectors form a group assigned to a
4K signal.
The assignment is as follows.
a) The connector numbers corresponds to sub images 1, 2, 3, and 4 in that
order.
b OUTPUT 1 to 48 connectors (BNC type: XKS-
S8165, RJ-45 type: XKS-T8165)
Any outputs, such as program outputs, preview outputs,
and AUX outputs, can be assigned and output as serial
digital video signals. The output setting is controlled from
the control panel of the XVS system. The number of
connectors (slots) available depends on the number of
XKS-S8165 or XKS-T8165 boards installed.
In 4K format, four connectors form a group assigned to a
4K signal.
The assignment is as follows.
a) The connector numbers corresponds to sub images 1, 2, 3, and 4 in that
order.
c OUTPUT 49 to 52 connectors (BNC type: XKS-
S8165, RJ-45 type: XKS-T8165)
Reserved for future use.
d FC (format converter) OUTPUT 1 to 16 connectors
(BNC type: XKS-S8165, RJ-45 type: XKS-T8165)
These output signals coverted using the format converter
function. Up to 16 output systems are supported. The
output setting is controlled from the control panel of the
XVS system.
a INPUT 1 to 160 connectors
b OUTPUT 1 to 48 connectors
c OUTPUT 49 to 52 connectors
d FC OUTPUT 1
to 16 connectors
e SPARE 1 to 4
connectors
f MV OUTPUT 1
to 8 connectors
g U terminal
h MVS LAN connector
j RESET CIRCUIT BREAKER button
i UTL LAN connector
k -AC IN A, B, C, and D connectors
l REF IN connectors
4K format input signal Connector number
a)
1st system 1, 2, 3, 4
2nd system 5, 6, 7, 8
(and so on) (and so on)
4K format output signal Connector number
a)
1st system 1, 2, 3, 4
2nd system 5, 6, 7, 8
(and so on) (and so on)
