Sony XVS Series

87
• A pattern limit only applies when a wipe or DME wipe
is selected as the transition type.
• In multi-program mode, pattern limits can be used only
when the background transition type is a wipe or DME
wipe. If a key is selected for the next transition, the
pattern limit settings are reflected in the wipe or DME
wipe selected for the background transition type.

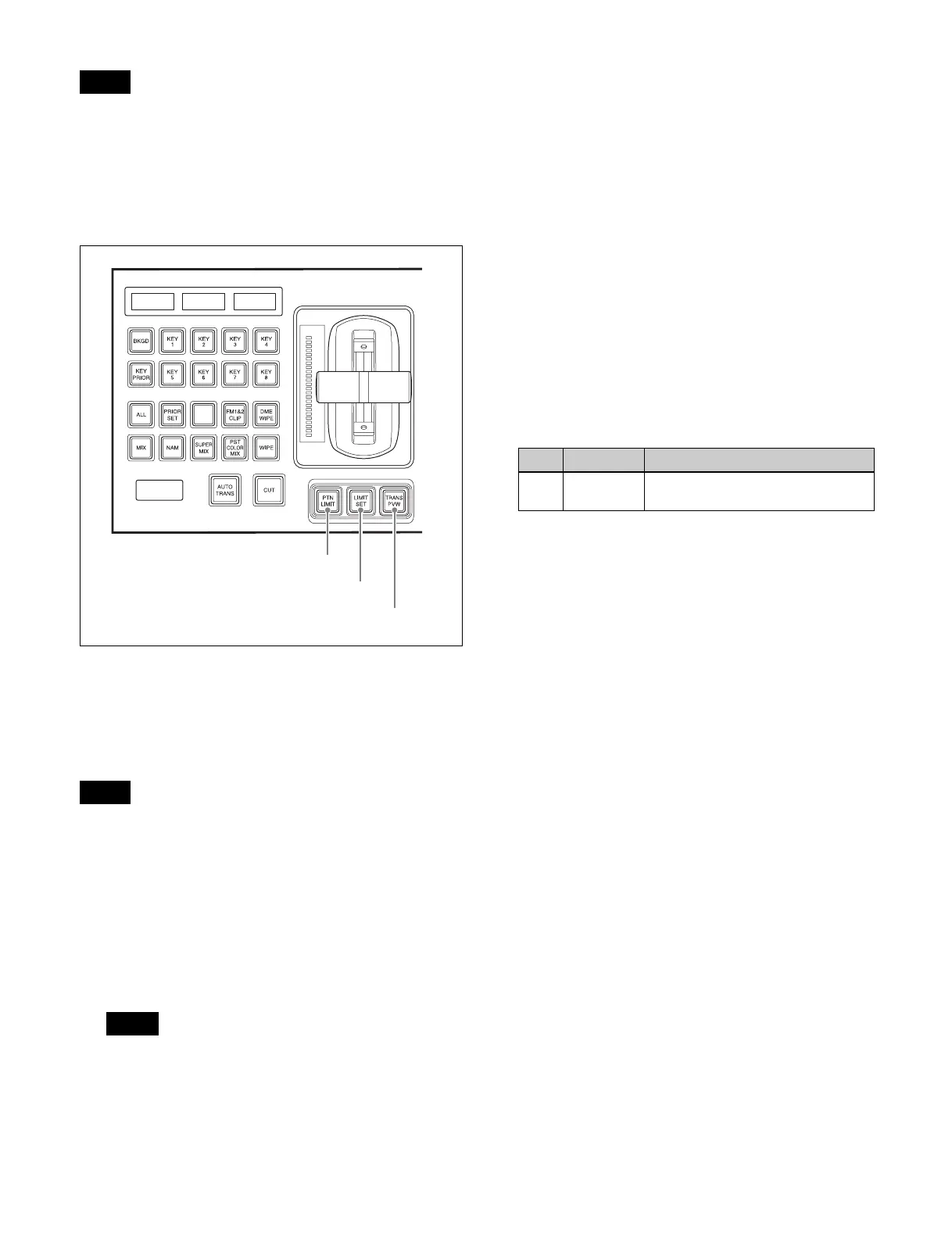

Transition control block
To perform pattern limit operations, the [PTN LIMIT] and
[LIMIT SET] buttons must be assigned to buttons in the
transition control block beforehand in the Setup menu (see
page 376).
The [PTN LIMIT] and [LIMIT SET] buttons are set on the
transition control block (simple type) by default. Also,
transition preview and cut operations are not supported.
Setting the pattern limit with the fader
lever
1 Move the fader lever to the position corresponding to
a particular pattern size.
• First make sure that the [PTN LIMIT] button is off.
• To adjust while monitoring the video on the preview
monitor, first press the [TRANS PVW] button to
select transition preview mode (see page 91).
2 Press the [LIMIT SET] button.
This sets the current fader lever position as the pattern
limit.
Setting the pattern limit (menu)
This section describes setting the pattern limit on the M/E-
1 bank as an example.
1 Display the pattern limit setting menu.
When the transition type is a wipe, open the M/E-1
>Wipe >Edge/Direction menu (1154).
When the transition type is a DME wipe, open the M/
E-1 >DME Wipe >Edge/Direction menu (1164).
2 Press [Pattern Limit], turning it on.
3 Set the following parameter.
a) 0.00%: Executing the transition does not change the video output.
100.00%: The transition is the same as when the pattern limit is
disabled, but the cross-point button selections of the background A
and B buses do not interchange when the transition completes.
Executing a pattern limit transition
1 Press the [PTN LIMIT] button.
The [PTN LIMIT] button is lit amber.
2 Execute the transition.
The transition progresses as far as the set pattern limit.
Even if the transition completes, the cross-point button
assignments of the background A and B buses do not
interchange.
3 Execute the transition once again.
The status before the previous transition is restored.
To cancel the pattern limit
If the pattern limit is restored to the previous value by
executing step 3, press the [PTN LIMIT] button, turning it
off.
If the pattern limit is applied by executing step 2, carry out
the following procedure.
1 Press the [PTN LIMIT] button.
The [PTN LIMIT] button is lit green.
2 Execute the transition.
Notes
Note
Notes
PTN LIMIT button
TRANS PVW button
LIMIT SET button
No. Parameter Adjustment
1 Pattern
Limit
Pattern limit range
a)
