1.2.6.2.1.4.2 Pinout of the connectors

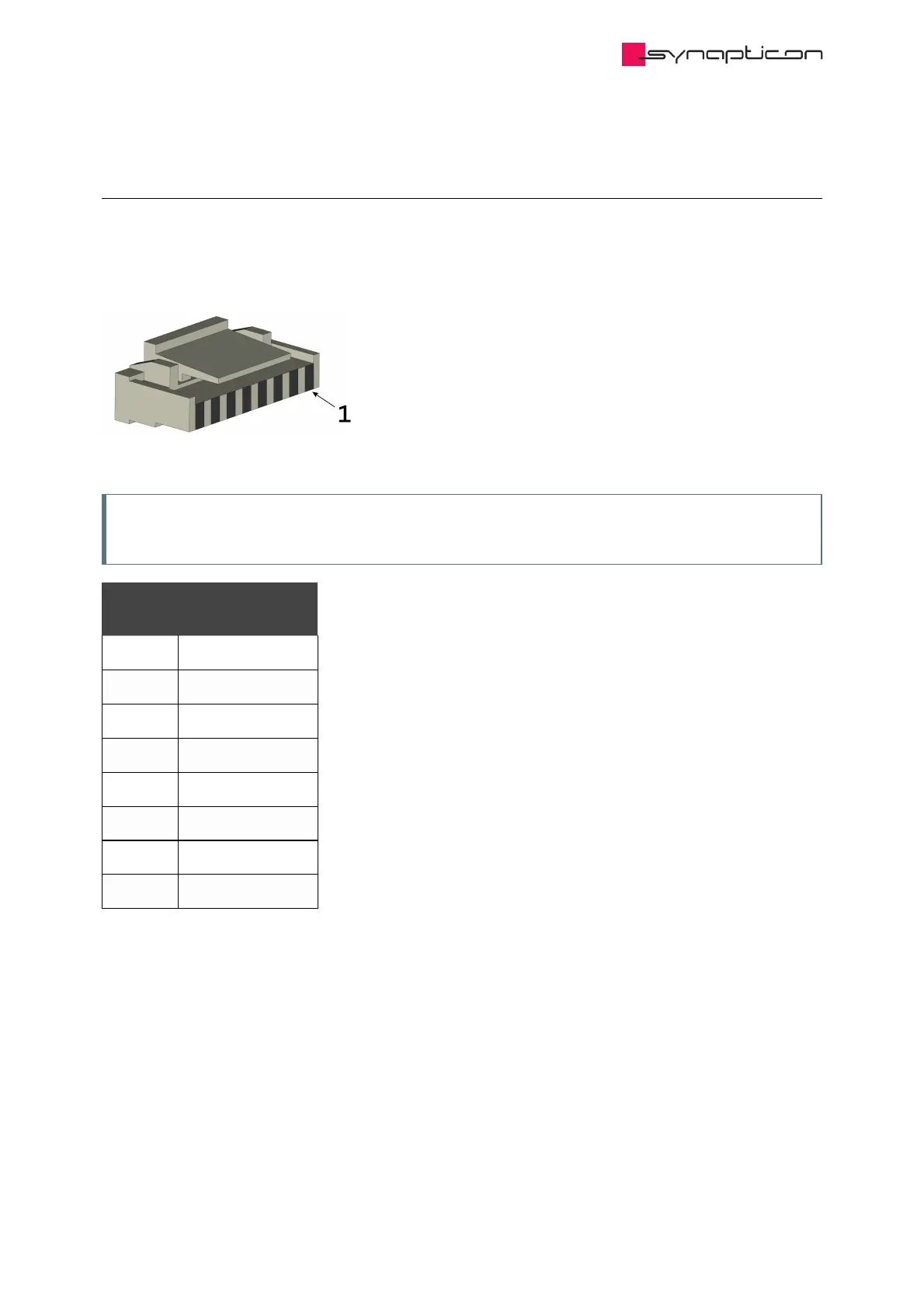

1.2.6.2.1.4.2.1 Hybrid connector (JST GHR-08V-S)

Note

This connector is on the drive side of the Y-Splitter cable and on both sides of the Drive-to-Drive cable.

Pin/Wire

#

Function

1 STO-SBC1

2 STO-SBC2

3 Safety Ground

4 RX_N

5 RX_P

6 TX_N

7 TX_P

8 PE

Synapticon Documentation
