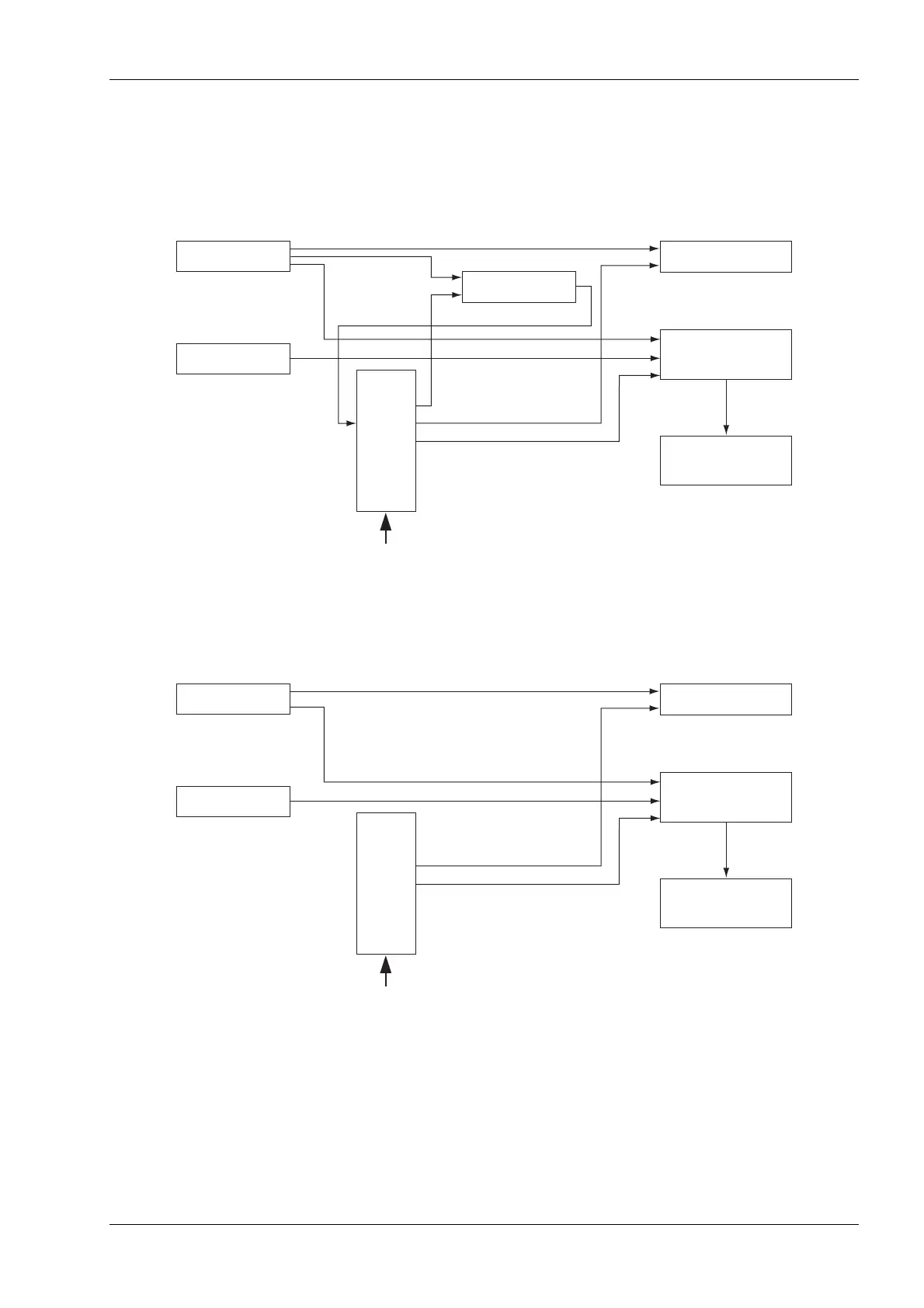

Measuring unit hydraulic system block diagram
<Whole Blood Mode>
<Pre-diluted Mode>
Diluent
WBC/HGB Lyse
Whole Blood Sample (50 µL)
1.960 mL
SRV
1.996 mL
Mixing Chamber
(1:500)4.0 µL
RBC TD Chamber
(1:25,000)40 µL
1.994 mL
1.0 mL
6 µL (1:500)
(1:500)
WBC TD Chamber
HGB Flow Cell
Diluent
WBC/HGB Lyse
1:26 Diluted Sample (200 µL)
1.99792 mL
RBC TD Chamber
(1:25,000)2.08 µL
1.922 mL
1.0 mL
78 µL (1:1,000)
(1:1,000)
WBC TD Chamber
HGB Flow Cell
SRV
