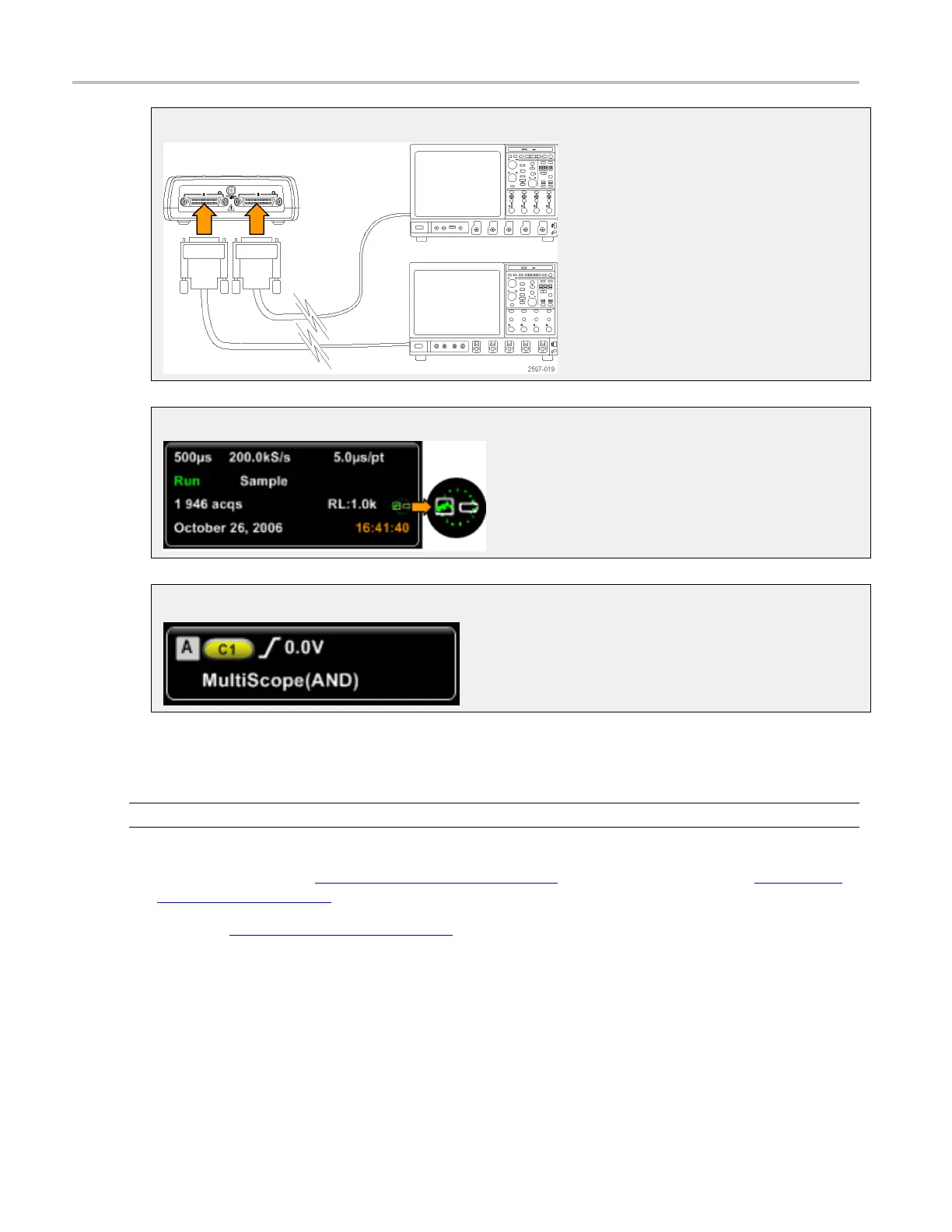

Trigger setups MultiScope trigger setup overview

TekLink hub connection

TekLink hub connection status indicator

TekLink trigger in dicator

Connect up t o four TekLink-Compatible instruments

NOTE

. TekLink is not available on DPO7000C, M SO5000, and DPO5000 Series instruments.

1. Use TekLink cables to connect instruments (see page 478) to a TekLink Hub. Refer to Controls and

Connectors (see page 66) for the location of TekLink connectors.

2. Verify the connection status

(see page 478) in the horizontal readout of the oscilloscope.

rom the Trig menu, select A Event (Main) Trigger Setup.

The oscilloscope detects the TekLink Hub connection and displays the MultiScope Trigger Setup

ontrol window.

478 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
