Oscilloscope Reference Select timestamp save options
What do you want to do next?
Learn about the MyScope Setup and Edit control windows. (see page 379)
Select timestamp save options
From the File menu, highlight Save As; then select Timestamp Table from the submenu. In the Save As
dialog box, click the Timestamp Options button.
Overview

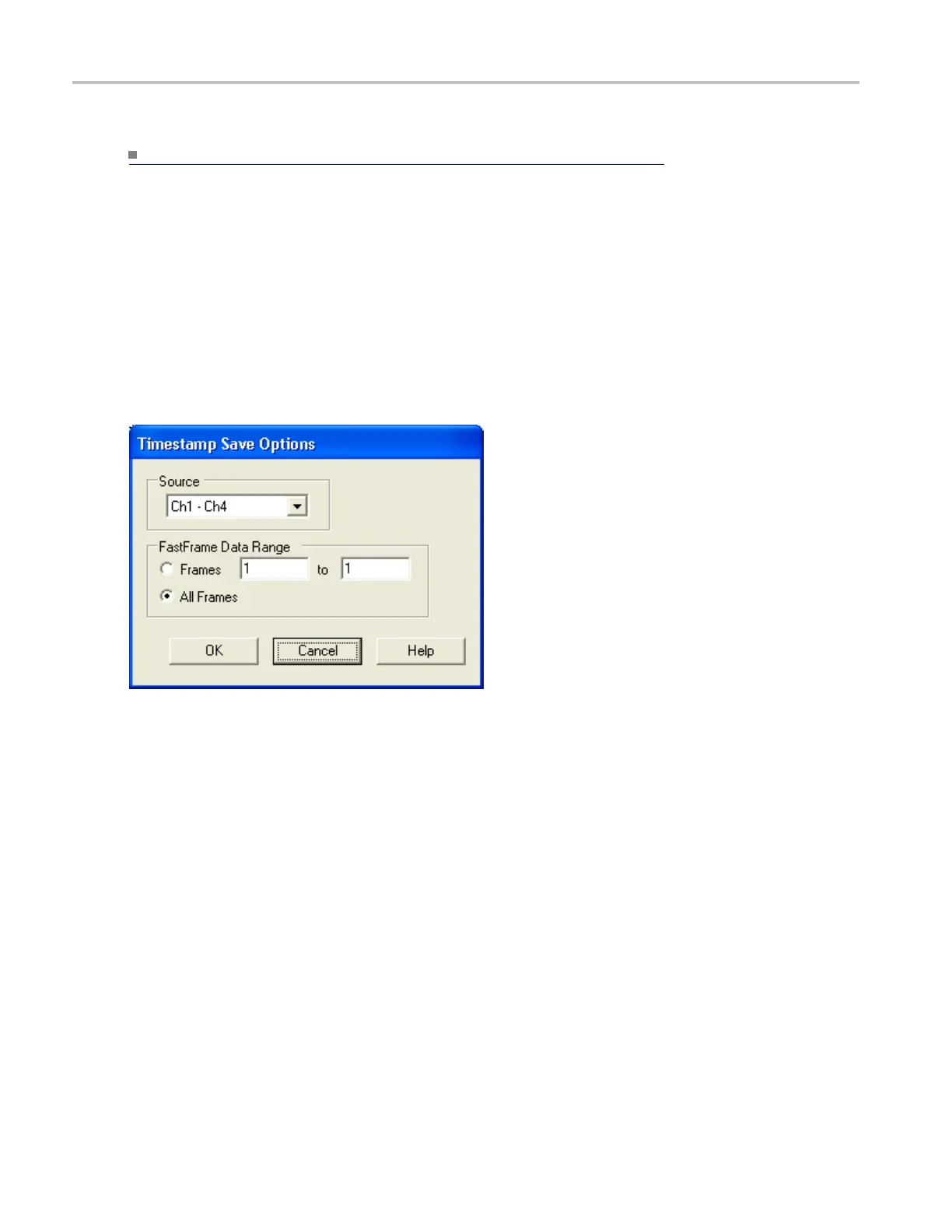

Use the Timestamp Save Options dialog box to set the parameters for the time stamp you want to save.
To use
1. Sel
ect the data Source for the time stamp you want to save.
2. Set the FastFrame Data Range for the time stamp.
3. ClickOKtoreturntotheSaveAsdialogbox,whereyoucanassignyourownfile
name and save the time s tamp to the specified folder. By default, the file is saved to the
C:
\Users\[Username]\Tektron ix\TekScope\data
folder.
Behavior
The time stamp table data is saved as a .txt file.
890 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
