Oscilloscope Reference Offset and clipping
NOTE. This online help documents features and options available for several instrument models. Your
instrument may not have every feature discussed in this online help.
To use
The correct i
nput termination is set automatically when you attach a probe with a TekProbe or TekVPI
interface. For other probes, you must set the input termination manually.
Select the i
nput coupling for the signal from the attached probe to the instrument.
What do you want to do next?
Learn more about the Bandwidth controls. (see page 494)

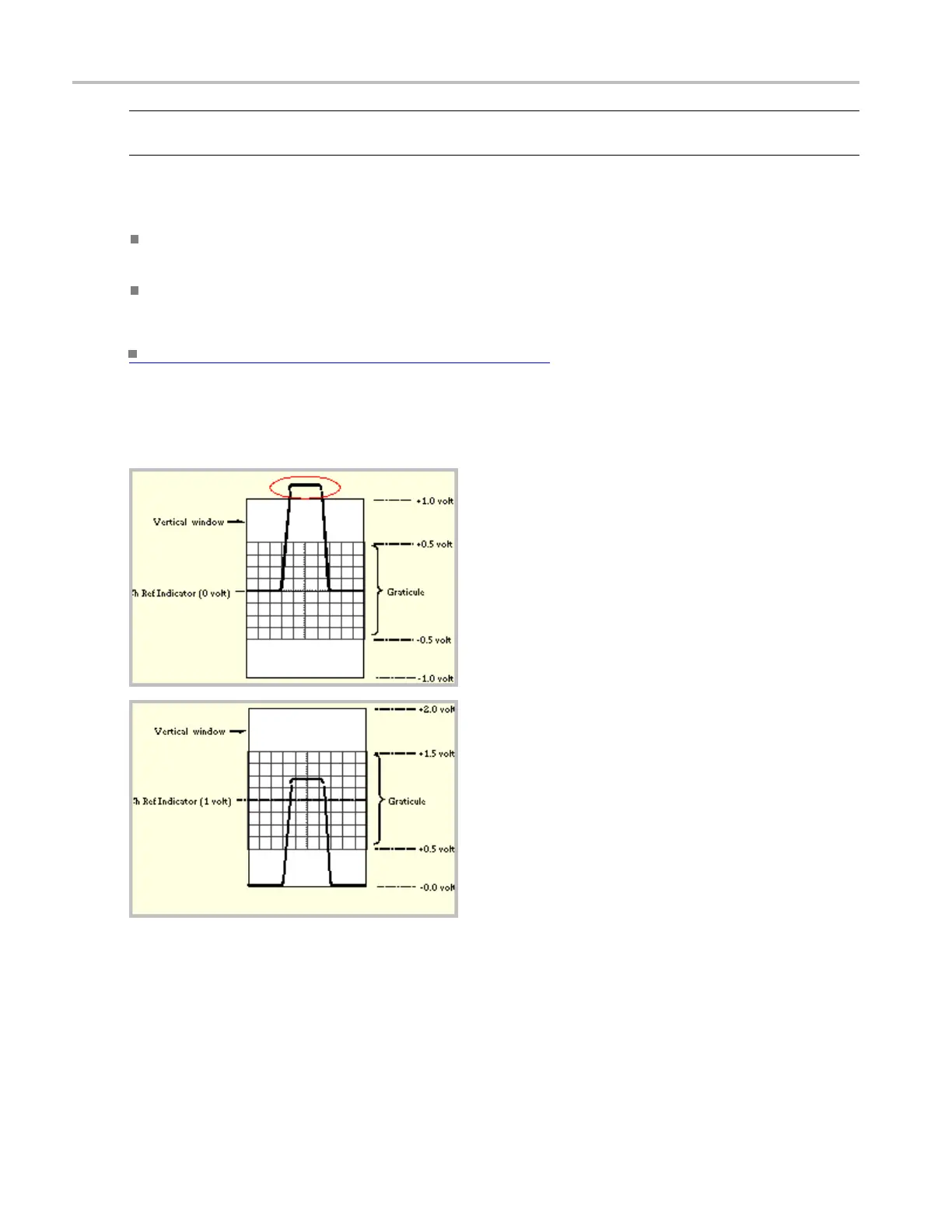

Offset and clipping
Clipping
The circled portion of the incoming waveform is clipped,
and therefore, is not acquired.
The clipped portion cannot be processed or displayed.
Offset can move the acquisition window vertically relative
to the incoming waveform.
Offset removes clipping
By setting an offset to vertically shift the acquisition
positive relative to the waveform, the clipped portion can
be acquired.
xxx
892 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
