Bit 0 Bit(n-1) (n-2) (n-3) (n-4)
Bit 0 Bit(n-1) (n-2) (n-3) (n-4)
5
4
3
7
6
21
CLKX
FSX
DX
DR
TMS320C6455
SPRS276M –MAY 2005–REVISED MARCH 2012
www.ti.com
Table 7-69. Switching Characteristics Over Recommended Operating Conditions for McBSP as SPI
Master or Slave: CLKSTP = 11b, CLKXP = 1
(1) (2)
(see Figure 7-57)
-720
-850
A-1000/-1000
NO. PARAMETER UNIT
-1200
MASTER
(3)
SLAVE
MIN MAX MIN MAX
1 t
h(CKXH-FXL)
Hold time, FSX low after CLKX high
(4)
H - 2 H + 3 ns
2 t
d(FXL-CKXL)
Delay time, FSX low to CLKX low
(5)
T - 2 T + 1 ns
3 t
d(CKXH-DXV)
Delay time, CLKX high to DX valid -2 4 18P + 2.8 30P + 17 ns
Disable time, DX high impedance following
6 t
dis(CKXH-DXHZ)
-2 4 18P + 3 30P + 17 ns
last data bit from CLKX high
7 t
d(FXL-DXV)
Delay time, FSX low to DX valid L - 2 L + 4 12P + 2 24P + 17 ns
(1) P = 1/CPU clock frequency in ns. For example, when running parts at 1000 MHz, use P = 1 ns.
(2) For all SPI Slave modes, CLKG is programmed as 1/6 of the CPU clock by setting CLKSM = CLKGDV = 1.
(3) S = Sample rate generator input clock = 6P if CLKSM = 1 (P = 1/CPU clock frequency)
S = Sample rate generator input clock = P_clks if CLKSM = 0 (P_clks = CLKS period)
T = CLKX period = (1 + CLKGDV) * S
H = CLKX high pulse width = (CLKGDV/2 + 1) * S if CLKGDV is even
H = (CLKGDV + 1)/2 * S if CLKGDV is odd
L = CLKX low pulse width = (CLKGDV/2) * S if CLKGDV is even
L = (CLKGDV + 1)/2 * S if CLKGDV is odd
(4) FSRP = FSXP = 1. As a SPI Master, FSX is inverted to provide active-low slave-enable output. As a Slave, the active-low signal input
on FSX and FSR is inverted before being used internally.
CLKXM = FSXM = 1, CLKRM = FSRM = 0 for Master McBSP
CLKXM = CLKRM = FSXM = FSRM = 0 for Slave McBSP
(5) FSX should be low before the rising edge of clock to enable Slave devices and then begin a SPI transfer at the rising edge of the Master
clock (CLKX).

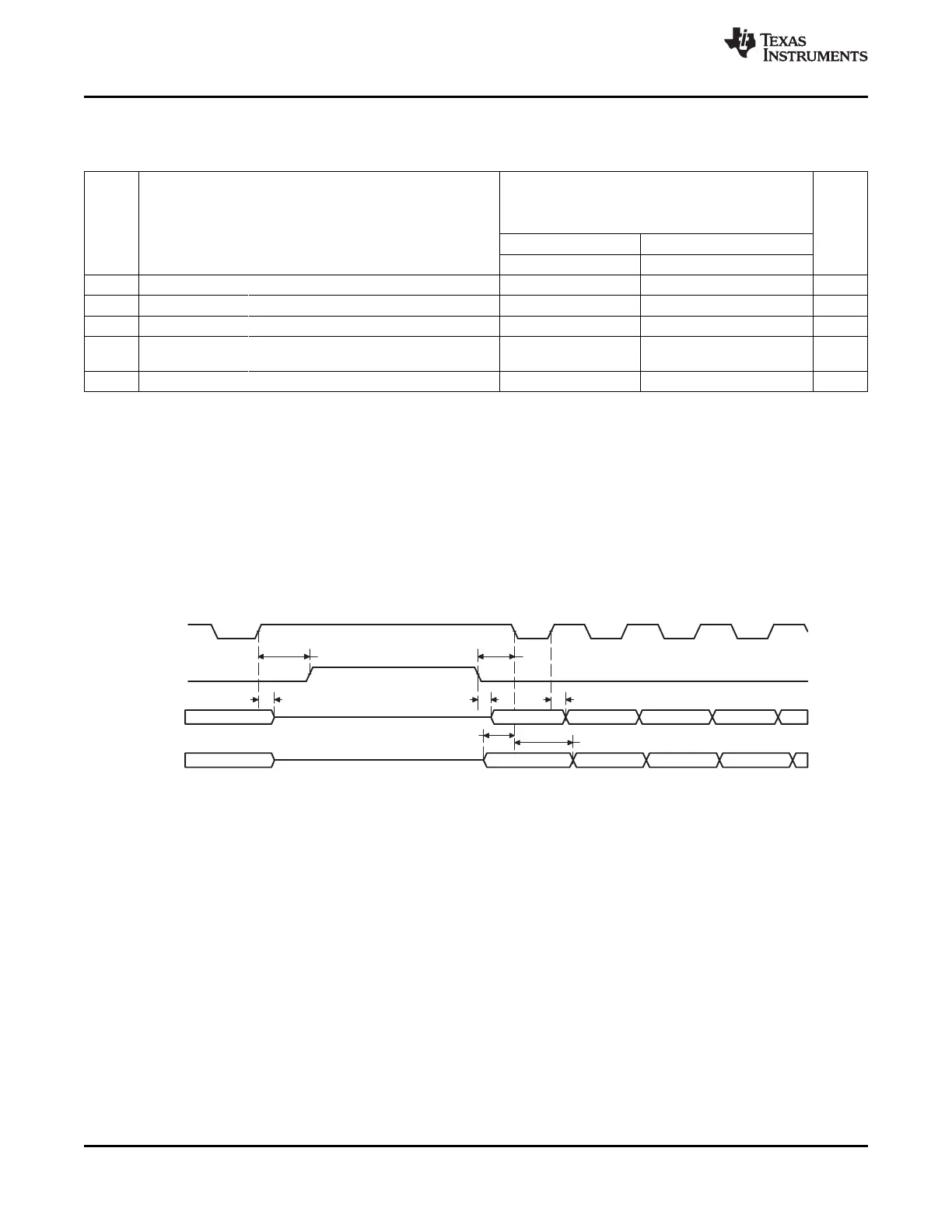

Figure 7-57. McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 1
