1
3
4
MDCLK
MDIO
(input)
1
7
MDCLK
MDIO
(output)
TMS320C6455
SPRS276M –MAY 2005–REVISED MARCH 2012 www.ti.com

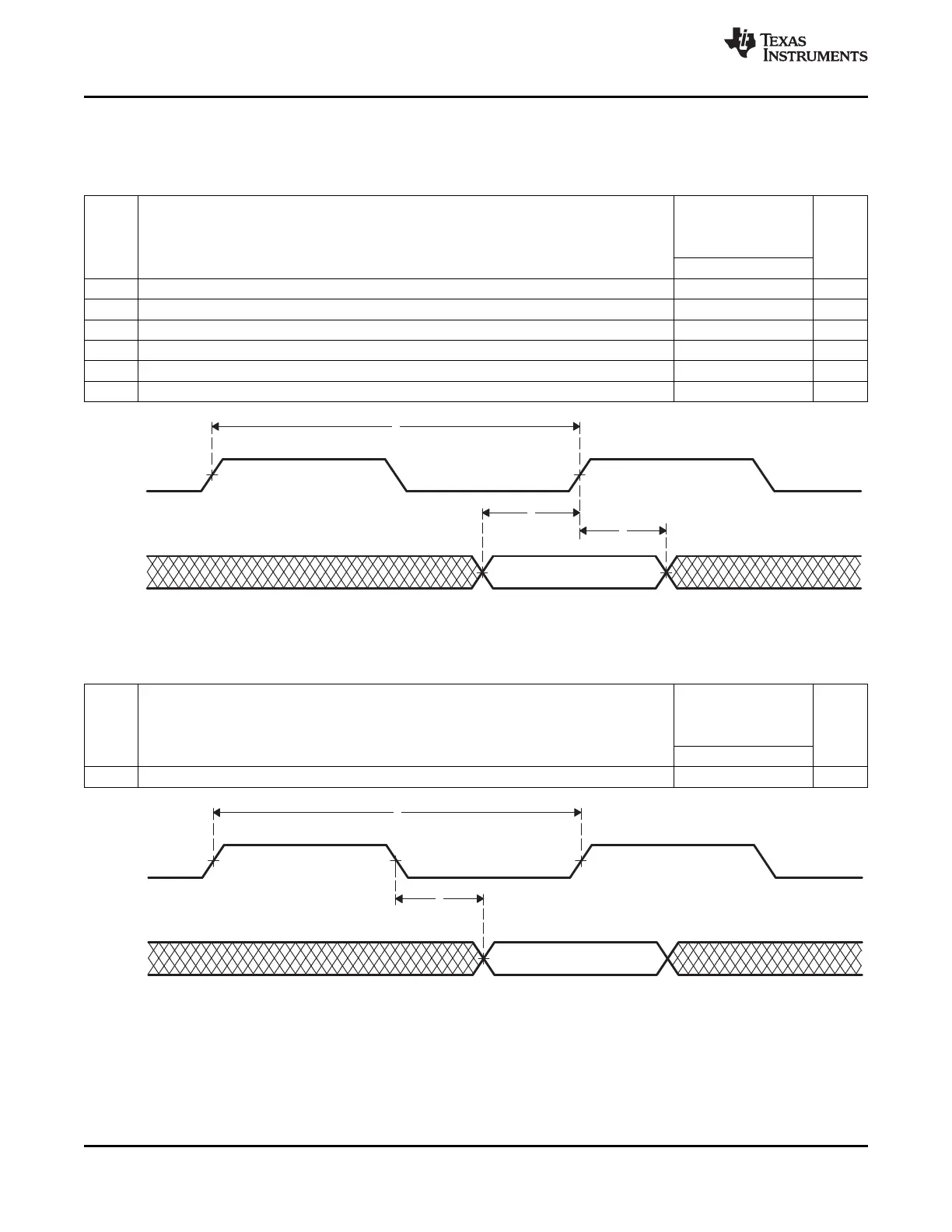

7.14.4.3 MDIO Electrical Data/Timing
Table 7-90. Timing Requirements for MDIO Input (R)(G)MII
(see Figure 7-71)
-720
-850
A-1000/-1000
NO. UNIT
-1200
MIN MAX
1 t
c(MDCLK)
Cycle time, MDCLK 400 ns
2a t
w(MDCLK)
Pulse duration, MDCLK high 180 ns
2b t
w(MDCLK)
Pulse duration, MDCLK low 180 ns
3 t
t(MDCLK)
Transition time, MDCLK 5 ns
4 t
su(MDIO-MDCLKH)
Setup time, MDIO data input valid before MDCLK high 10 ns
5 t
h(MDCLKH-MDIO)
Hold time, MDIO data input valid after MDCLK high 10 ns
Figure 7-71. MDIO Input Timing
Table 7-91. Switching Characteristics Over Recommended Operating Conditions for MDIO Output
(see Figure 7-72)
-720
-850
A-1000/-1000
NO. PARAMETER UNIT
-1200
MIN MAX
7 t
d(MDCLKL-MDIO)
Delay time, MDCLK low to MDIO data output valid 100 ns
Figure 7-72. MDIO Output Timing
216 C64x+ Peripheral Information and Electrical Specifications Copyright © 2005–2012, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Link(s): TMS320C6455
