TMS320C6455
SPRS276M –MAY 2005–REVISED MARCH 2012 www.ti.com
7.15.3 Timers Electrical Data/Timing
Table 7-94. Timing Requirements for Timer Inputs
(1)
(see Figure 7-73)
-720
-850
A-1000/-1000
NO. UNIT
-1200
MIN MAX
1 t
w(TINPH)
Pulse duration, TINPLx high 12P ns
2 t
w(TINPL)
Pulse duration, TINPLx low 12P ns
(1) P = 1/CPU clock frequency in ns. For example, when running parts at 1000 MHz, use P = 1 ns.
Table 7-95. Switching Characteristics Over Recommended Operating Conditions for Timer Outputs
(1)
(see Figure 7-73)
-720
-850
A-1000/-1000
NO. PARAMETER UNIT
-1200
MIN MAX
3 t
w(TOUTH)
Pulse duration, TOUTLx high 12P - 3 ns
4 t
w(TOUTL)
Pulse duration, TOUTLx low 12P - 3 ns
(1) P = 1/CPU clock frequency in ns. For example, when running parts at 1000 MHz, use P = 1 ns.

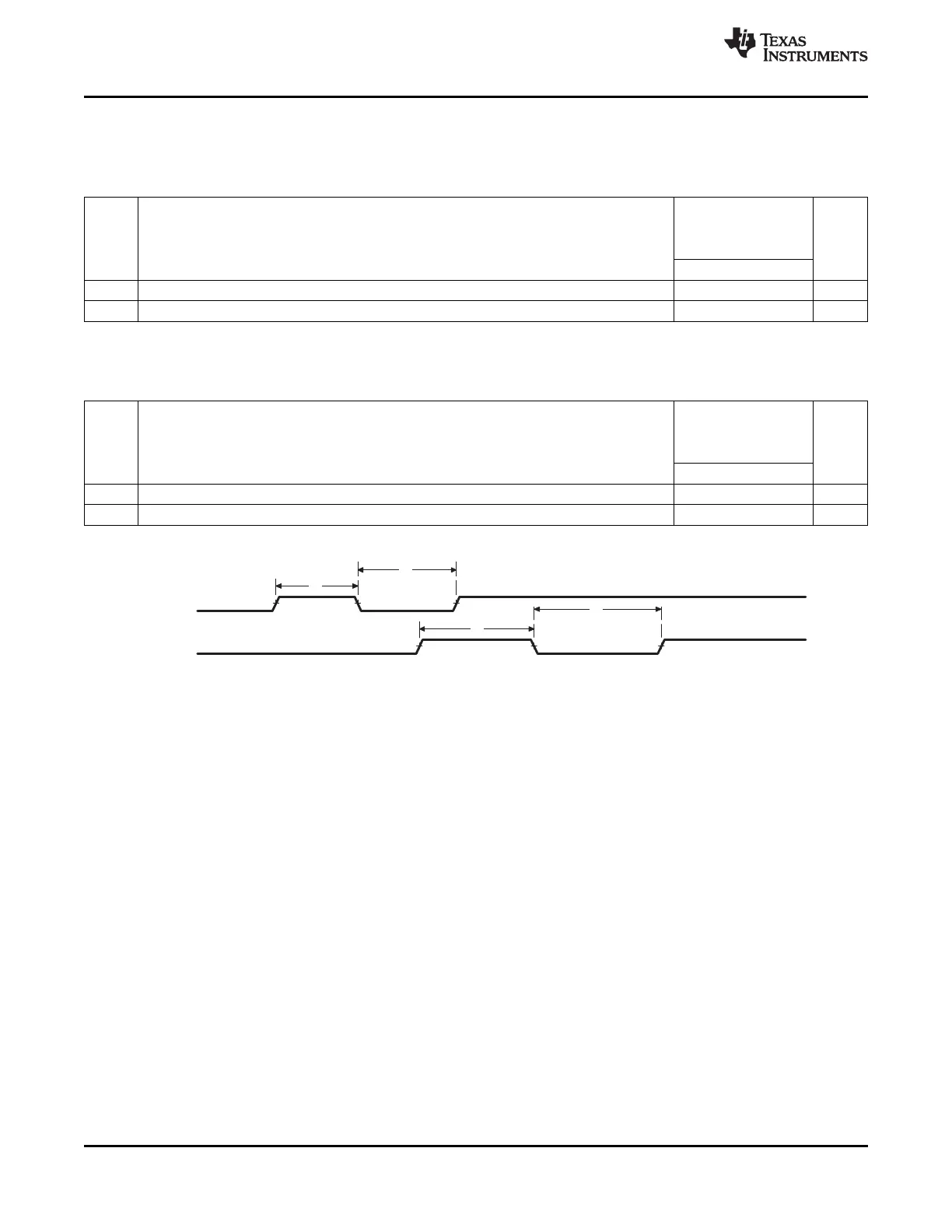

Figure 7-73. Timer Timing
