MRCLK
(Input)
2 3
1
4
4
MTCLK
(Input)
2 3
1
4
4
TMS320C6455
www.ti.com SPRS276M –MAY 2005–REVISED MARCH 2012

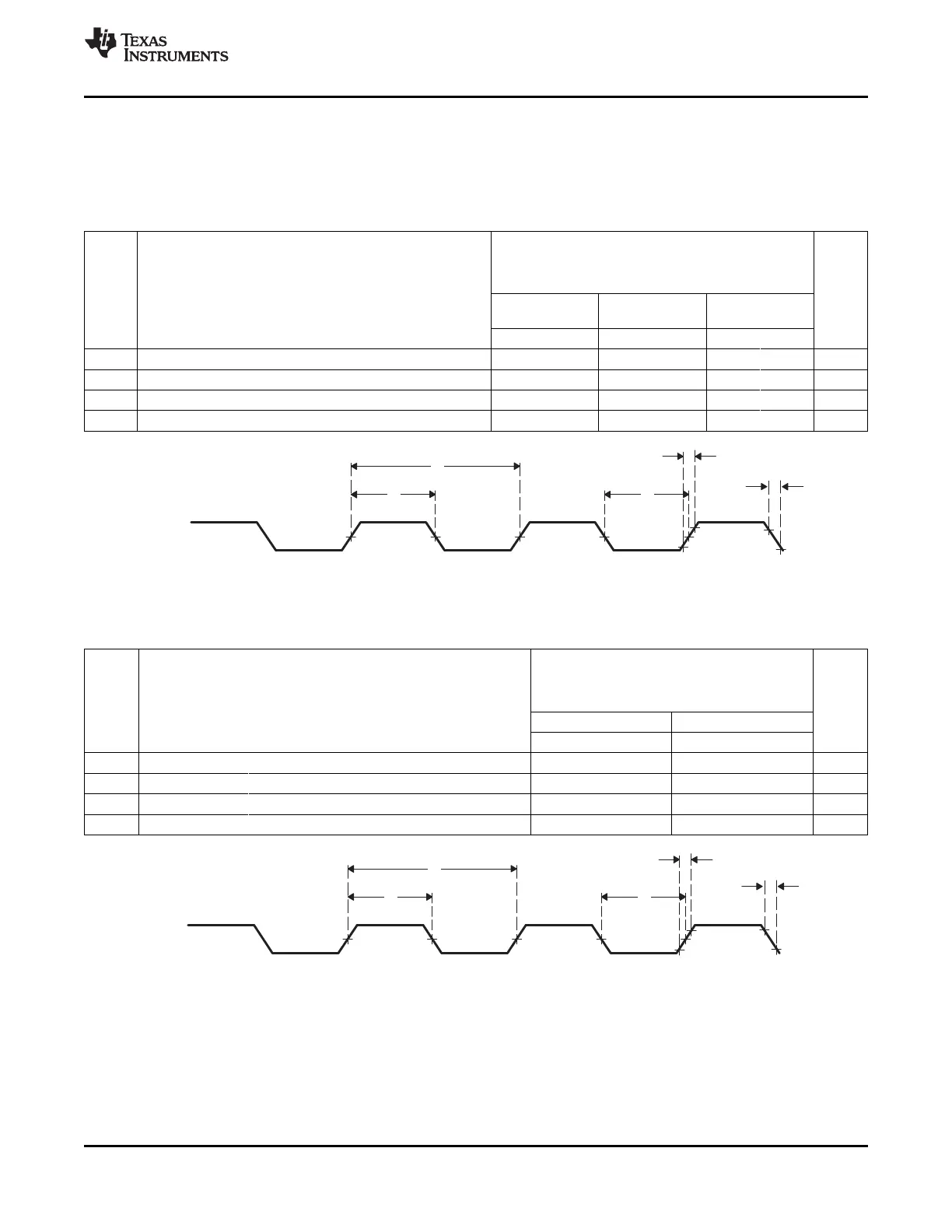

7.14.3 EMAC Electrical Data/Timing
7.14.3.1 EMAC MII and GMII Electrical Data/Timing
Table 7-75. Timing Requirements for MRCLK - MII and GMII Operation
(see Figure 7-59)
-720
-850
A-1000/-1000
-1200
NO. UNIT
1000 Mbps
100 Mbps 10 Mbps
(GMII Only)
MIN MAX MIN MAX MIN MAX
1 t
c(MRCLK)
Cycle time, MRCLK 8 40 400 ns
2 t
w(MRCLKH)
Pulse duration, MRCLK high 2.8 14 140 ns
3 t
w(MRCLKL)
Pulse duration, MRCLK low 2.8 14 140 ns
4 t
t(MRCLK)
Transition time, MRCLK 1 3 3 ns
Figure 7-59. MRCLK Timing (EMAC - Receive) [MII and GMII Operation]
Table 7-76. Timing Requirements for MTCLK - MII and GMII Operation
(see Figure 7-60)
-720
-850
A-1000/-1000
NO. UNIT
-1200
100 Mbps 10 Mbps
MIN MAX MIN MAX
1 t
c(MTCLK)
Cycle time, MTCLK 40 400 ns
2 t
w(MTCLKH)
Pulse duration, MTCLK high 14 140 ns
3 t
w(MTCLKL)
Pulse duration, MTCLK low 14 140 ns
4 t
t(MTCLK)
Transition time, MTCLK 3 3 ns
Figure 7-60. MTCLK Timing (EMAC - Transmit) [MII and GMII Operation]
Copyright © 2005–2012, Texas Instruments Incorporated C64x+ Peripheral Information and Electrical Specifications 207
Submit Documentation Feedback
Product Folder Link(s): TMS320C6455
