1
MTCLK (Input)
MTXD7−MTXD4(GMII only),
MTXD3−MTXD0,
MTXEN (Outputs)
1
GMTCLK (Output)
MTXD7−MTXD0,
MTXEN (Outputs)
TMS320C6455
www.ti.com SPRS276M –MAY 2005–REVISED MARCH 2012

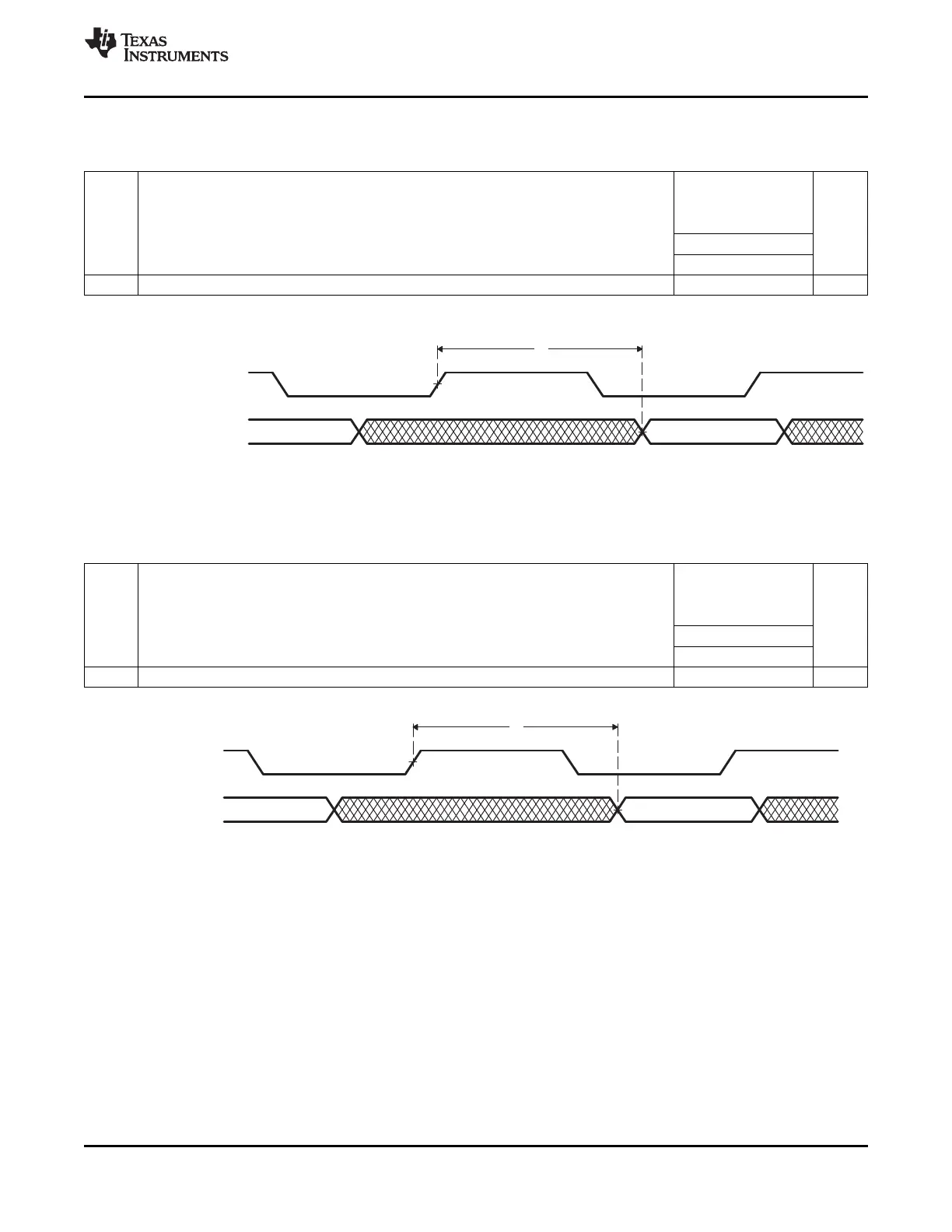

Table 7-79. Switching Characteristics Over Recommended Operating Conditions for EMAC MII and GMII
Transmit 10/100 Mbit/s
(1)
(see Figure 7-63)
-720
-850
A-1000/-1000
NO. PARAMETER UNIT
-1200
100/10 Mbps
MIN MAX
1 t
d(MTCLKH-MTXD)
Delay time, MTCLK high to transmit selected signals valid 5 25 ns
(1) For MII, Transmit selected signals include: MTXD[3:0] and MTXEN. For GMII, Transmit selected signals include: GMTXD[7:0] and
MTXEN.
Figure 7-63. EMAC Transmit Interface Timing [MII and GMII Operation]
Table 7-80. Switching Characteristics Over Recommended Operating Conditions for EMAC GMII Transmit
1000 Mbit/s
(1)
(see Figure 7-64)
-720
-850
A-1000/-1000
NO. PARAMETER UNIT
-1200
1000 Mbps
MIN MAX
1 t
d(GMTCLKH-MTXD)
Delay time, GMTCLK high to transmit selected signals valid 0.5 5 ns
(1) For GMII, Transmit selected signals include: GMTXD[7:0] and MTXEN.
Figure 7-64. EMAC Transmit Interface Timing [GMII Operation]
Copyright © 2005–2012, Texas Instruments Incorporated C64x+ Peripheral Information and Electrical Specifications 209
Submit Documentation Feedback
Product Folder Link(s): TMS320C6455
