USTER
®
HVI SPECTRUM
Instruction Manual
4.1 Standard
HVI SPECTRUM
The main control cabinet is 63 cm long and 80 cm deep.
The Length/Strength cabinet is 85 cm long by 89 cm deep.
The Length/Strength cabinet is connected to the main control
system cabinet by a triangular-shaped support frame that is 69 cm
at the widest part.
The printer rests on a shelf that is 50 cm wide and 65 cm deep.
The
HVI SPECTRUM
Length/Strength cabinet weighs approximately
410 gross kilos (285 net).

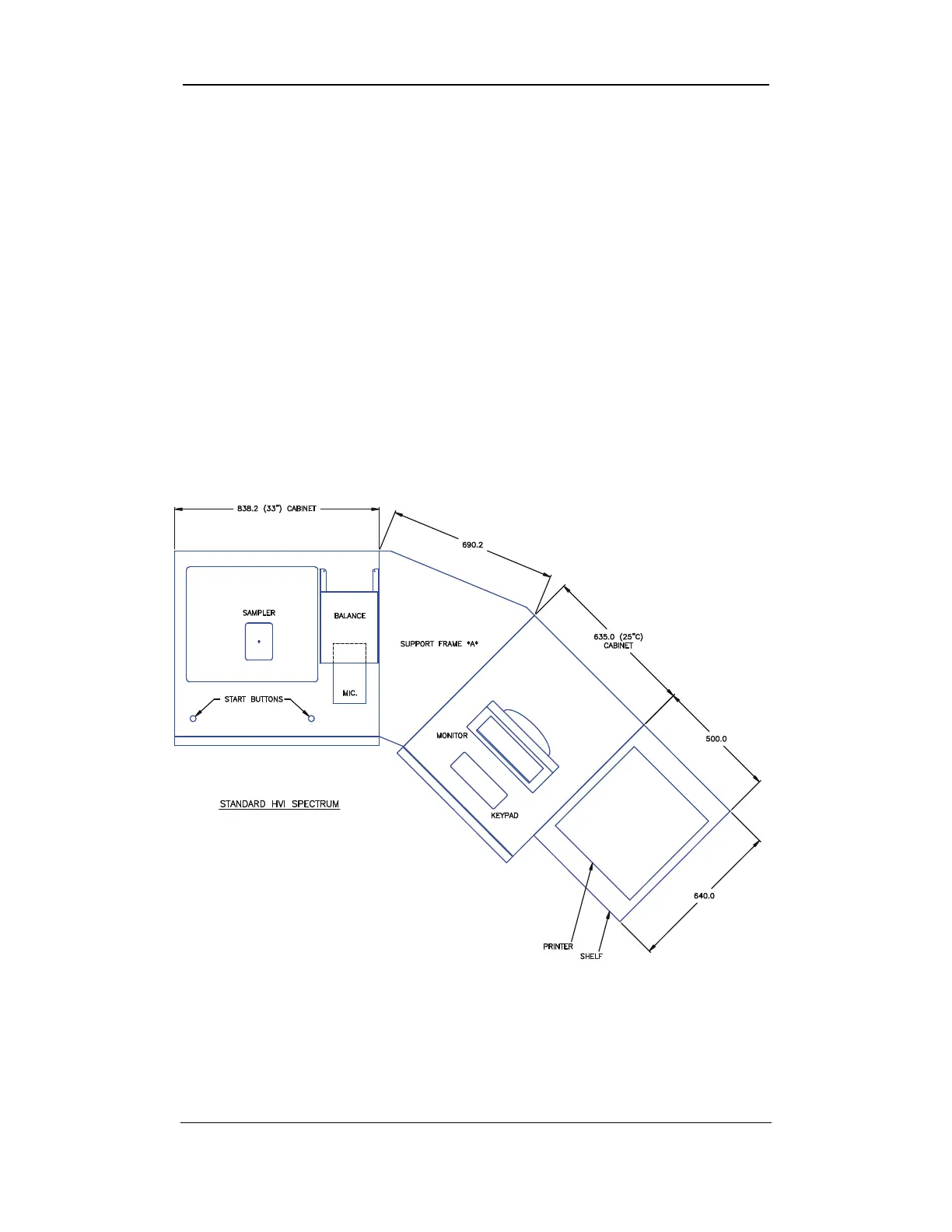

Figure 2-1:
HVI SPECTRUM
- Standard
Uster Technologies, Inc. Chapter 2
Installation • Page 2-5
