• The CALIBRATION screen shown below is displayed:

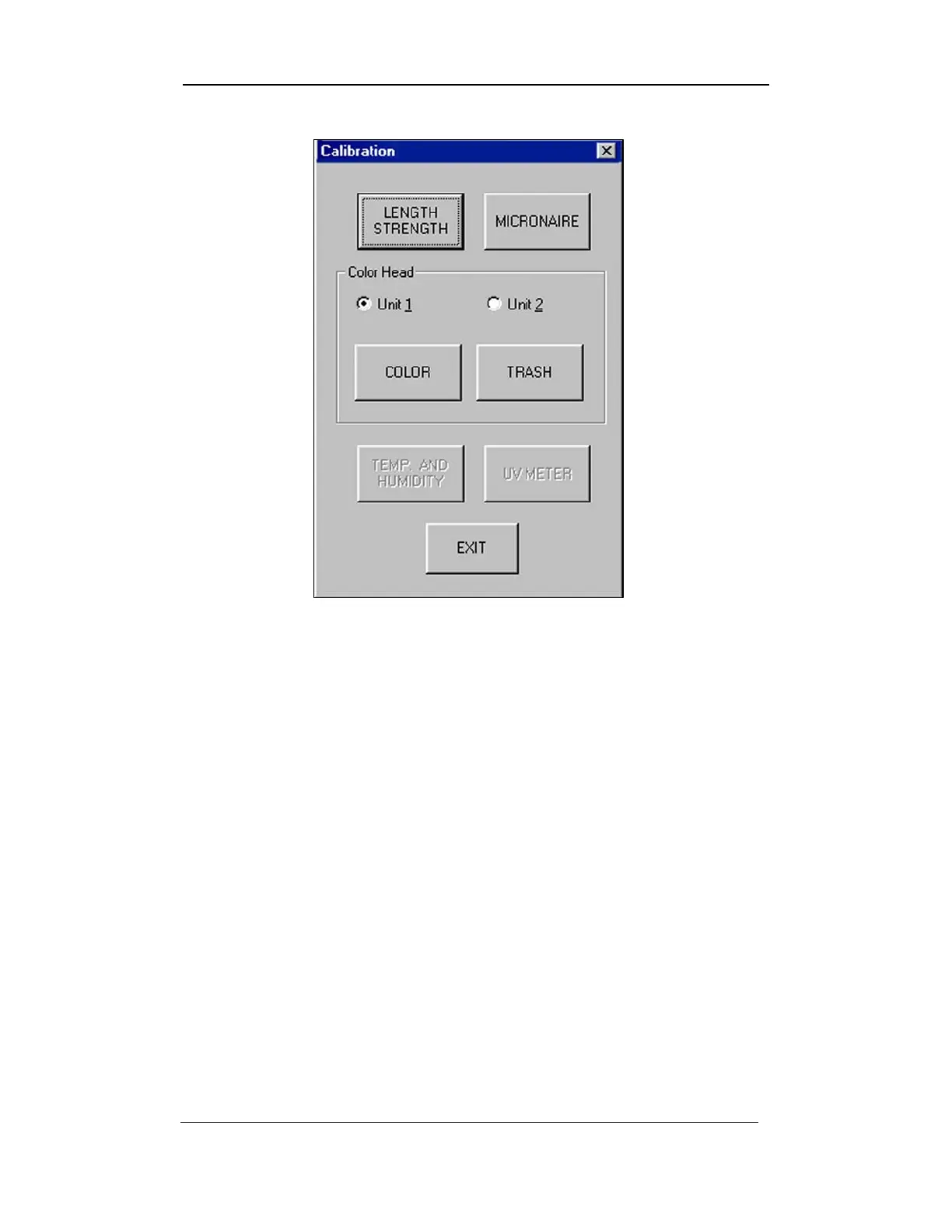

Figure 4-2: Calibration Screen
Note: Although, testing for both units must be completed, HVI
SPECTRUM II operators can choose which Colorhead to use first by
selecting either Unit 1 or Unit 2. In figure 4-2, Unit 1 has been
selected.
The sections in this chapter explain how to check calibration and how
to calibrate each component listed on the CALIBRATION screen shown
above.
Note: Depending on the configuration of the instrument, the menus
displayed on your screen may differ from the figures shown in this
manual .
