USTER
®
HVI SPECTRUM
Instruction Manual

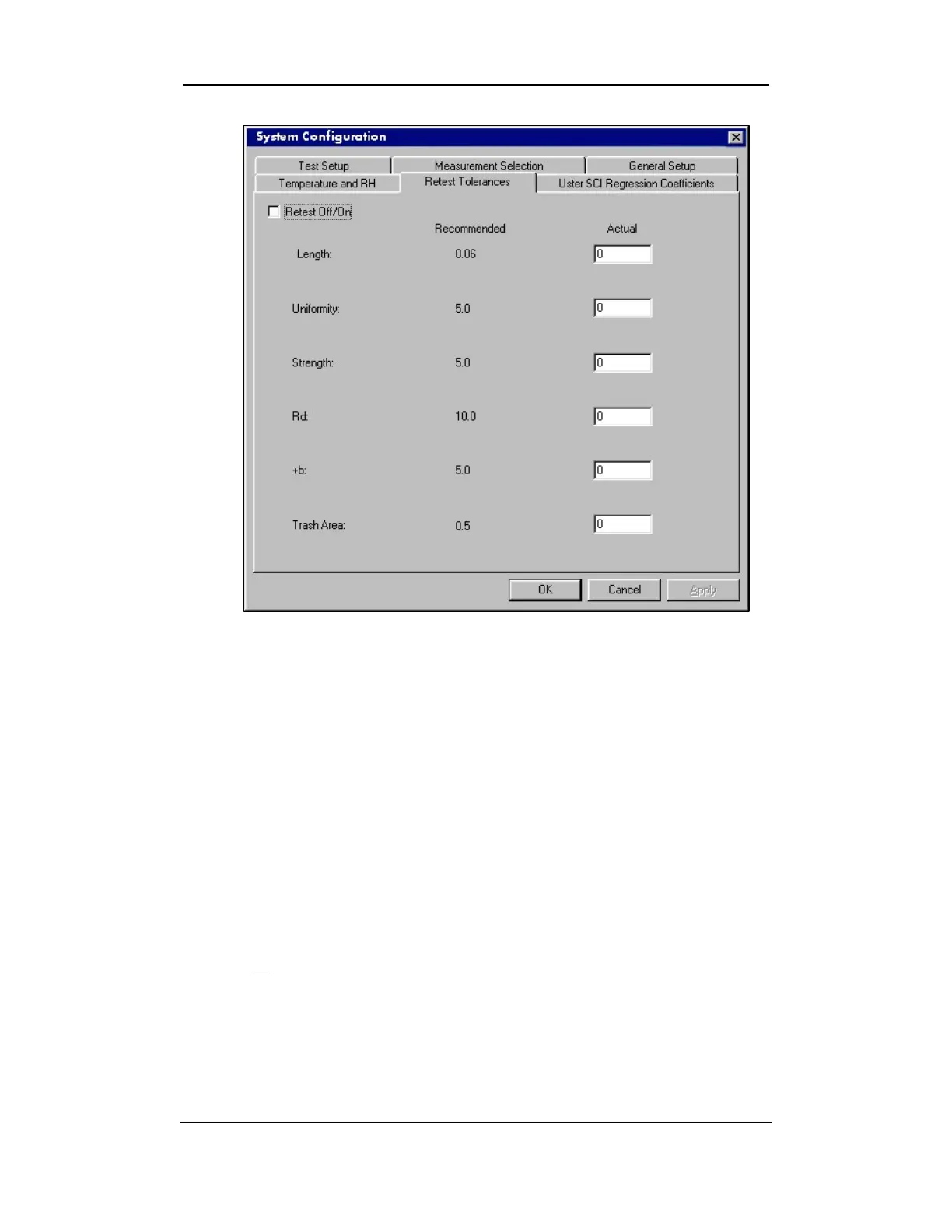

Figure 6-15: Reset Tolerances Tab
4. The RETEST TOLERANCES tab allows the range between the
maximum and minimum values of a sample to be measured. If the
difference between the test values is greater than the retest
tolerance, the operator is notified by a warning message. The
sample may be re-tested at this point. These tolerances are used to
indicate a two-sided bale, which is a bale that may consist of
two different lots of cotton (possibly from different growing areas).
Note:
This only applies if you run 2 or 4 tests per sample.
5. To begin, click in the box located to the left of Retest Off/On.
6. Enter the actual retest tolerance amounts in each field and select
the APPLY button to continue making changes to the System
Configuration.
7. Select the OK button to save the changes and exit the screen.
Uster Technologies, Inc. Chapter 6
Configurations • Page 6-16
