C H A P T E R 7 – T E S T S A N D T E S T C O N D I T I O N S
AT5600 User Manual 98-119 issue 14 Page 115

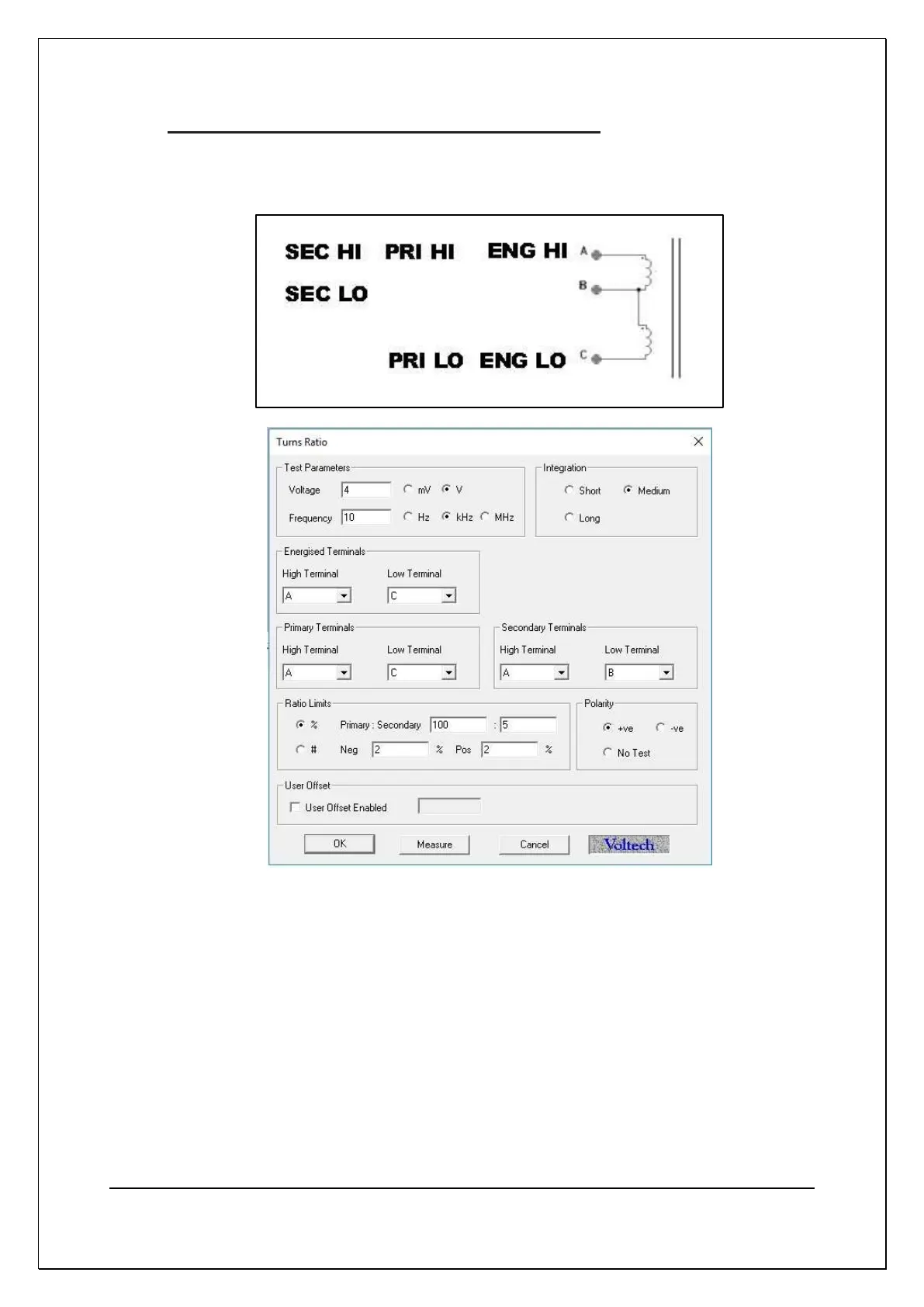

B, NON-OPTIMAL set up – avoid this configuration.
The secondary is at the HI end of A-C, hence SEC LO is not at 0V, potentially
causing a common mode effect.
