C H A P T E R 9 – T R O U B L E S H O O T I N G
AT5600 User Manual 98-119 issue 14 Page 200
9.1.2. Editor Error Codes
Measurement Status Codes are also shown when using the Editor software after
running a program. They are shown to the right of each test result.
9.1.3. Status Code Example

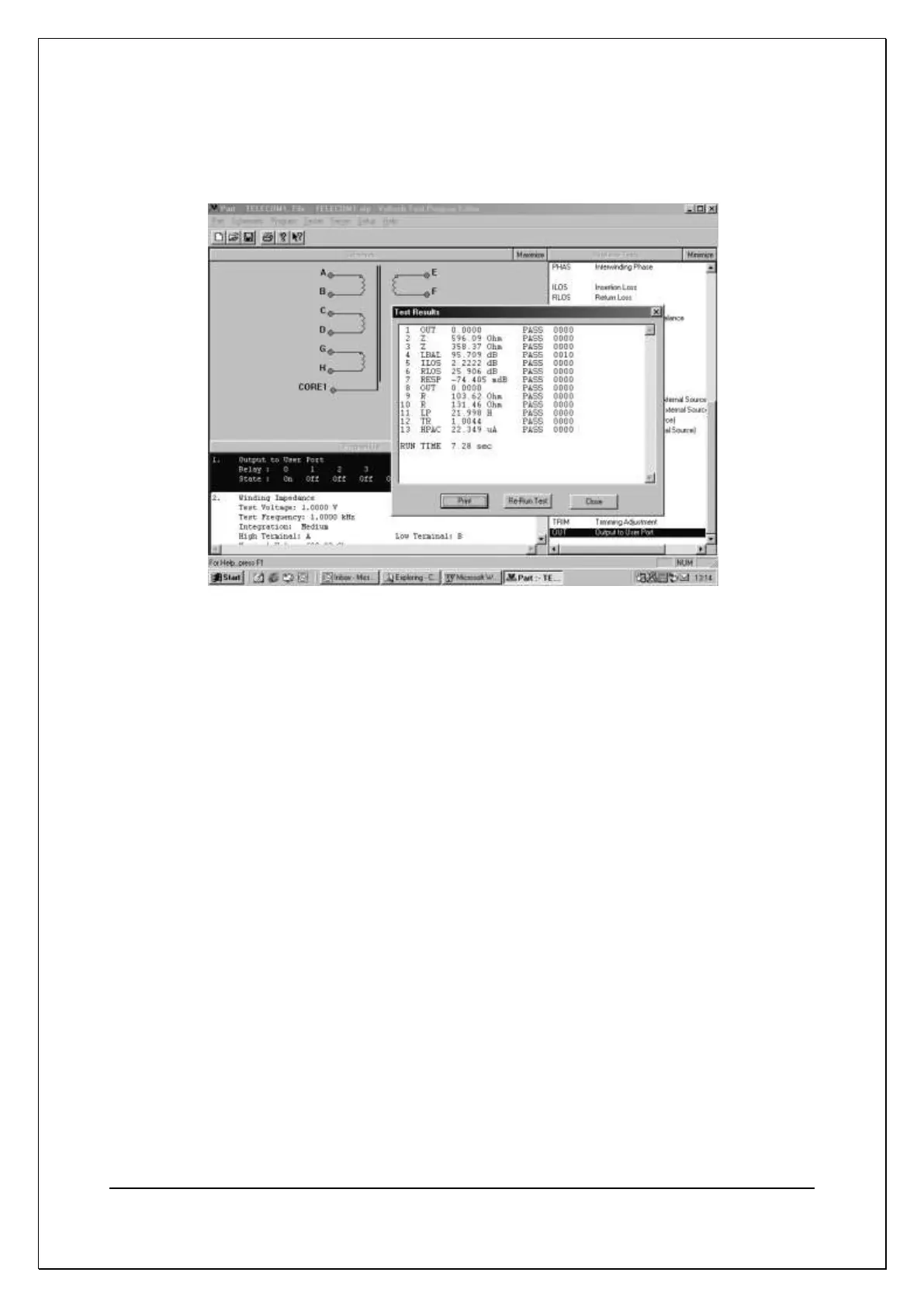

If you look at the test results screen shown above, you will see that test 4 (LBAL)
shows a status code of 0010. This code indicates that “The measurement had not
settled in time”. Although this test passed, it indicates that a problem existed
during the test sequence, and the result may not be accurate to the published
specification.
The status code is a 16-bit binary code, which is shown in hexadecimal
notation.
The following shows the meaning of each bit which represents one
measurement property so that more than one status can be shown at the
same time. For example, if a voltage over-range (xxx1) and a current over-
range (xxx2) have occurred at the same time during the measurement, then
the status code is 0003 (i.e., both bits 0 and 1 are set, so the binary value is
0000000000000011). If a test has been interrupted, then an additional code is
set in bits 12-15 of the status code.
