Voltech AT5600 User Manual

C H A P T E R 1 4 - A T E D I T OR
AT5600 User Manual 98-119 issue 14 Page 369
14.6.39. ZBX - Impedance with External Bias
DC Bias
Measure
Range
Test
Voltage
Test
Frequency
Basic Accuracy
0.1A
to 1000A
1nH 1MH
1mV to 5V
20Hz to 3MHz
0.2%
This test requires the use of one or more Voltech DC1000 Precision DC Bias
Current Sources. Contact your Voltech sales office for details. The Winding
Impedance with External Bias test measures the impedance of a selected winding
while applying a DC current from the DC1000 through the winding. An AC voltage
is also applied across the winding from the AT.
This test can be used with inductors to measure the change in impedance with a
bias current.

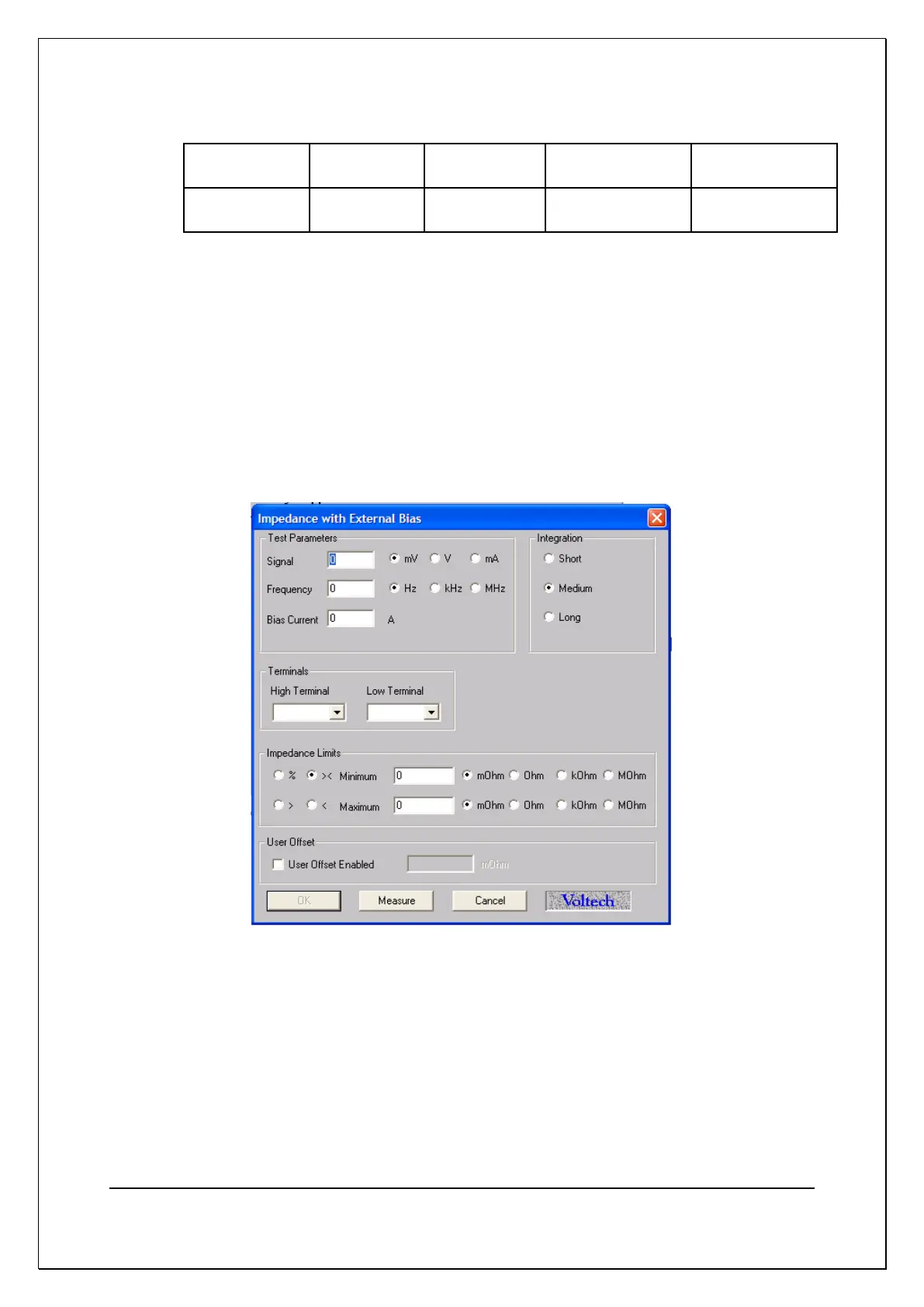

On selecting “ZBX Impedance with External Bias” from the ‘available tests’
window, the following dialog box is displayed:
