C H A P T E R 2 – S Y S T E M O V E R V I E W
AT5600 User Manual 98-119 issue 14 Page 37

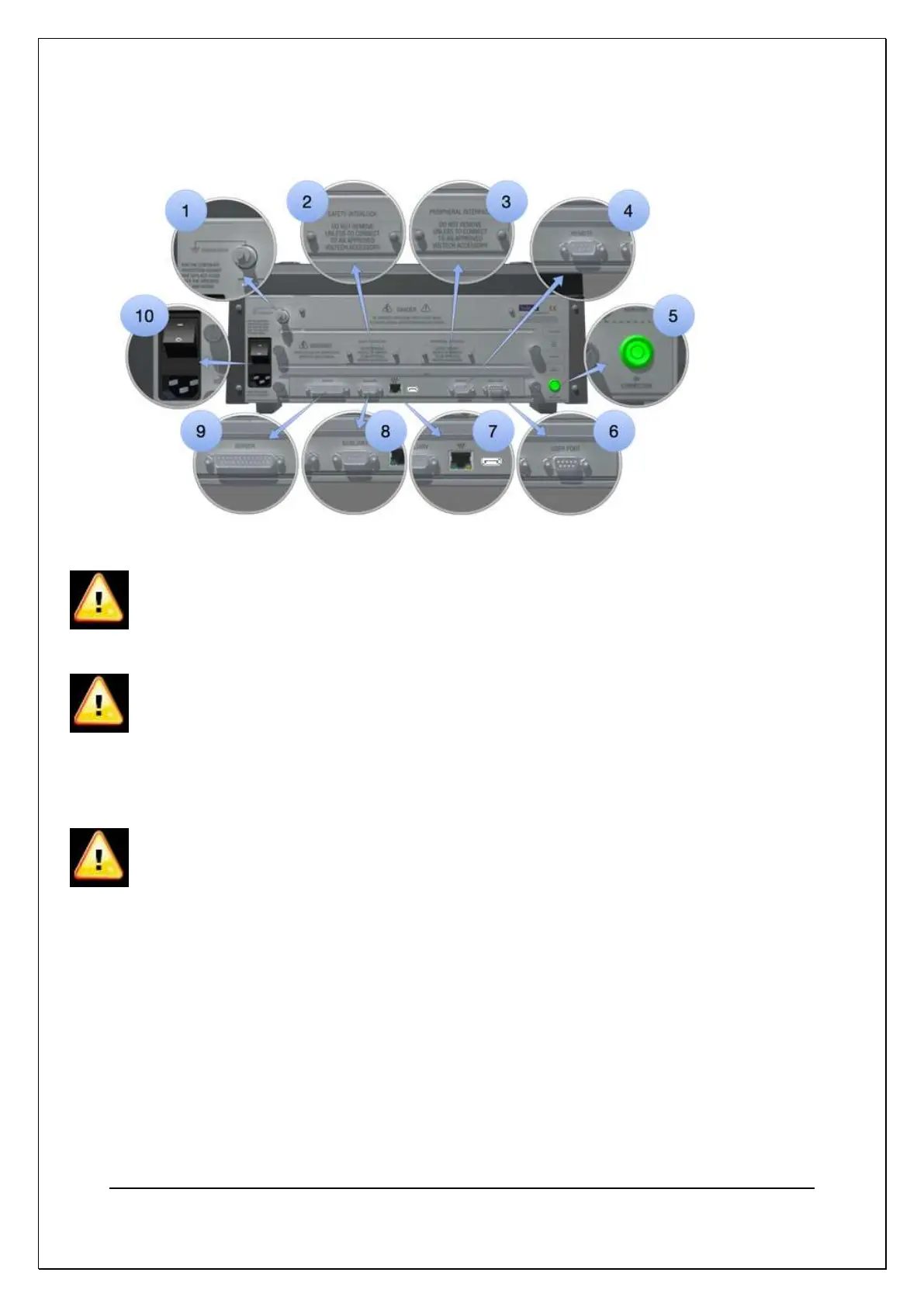

2.5. Rear Panel Description
(1) Chassis Earth
Earth post for connection of the chassis earth when used with an unearthed
mains connection. THIS EQUIPMENT MUST BE EARTHED.
(2) Safety Interlock
Supplied protected by a cover plate, this connects to a safety device, such as a
light curtain. When the connection is broken the AT5600 cannot produce any
dangerous voltages. HIGH VOLTAGE MAY BE PRESENT (<=400Vpk). See
chapter 6, Safety Systems. To gain access to the port, remove the cover plate
using a screwdriver as shown
(3) Peripheral Interface
Supplied protected by a cover plate, this connects to Voltech accessories. HIGH
VOLTAGE MAY BE PRESENT (<=400Vpk). See section 10.3.4, Peripheral
Interface. To gain access to the port, remove the cover plate using a screwdriver
as shown
