C H A P T E R 1 6 - C H A N G E L O G
AT5600 User Manual 98-119 issue 14 Page 395
15.5.4. Batch Statistics On-line Analysis

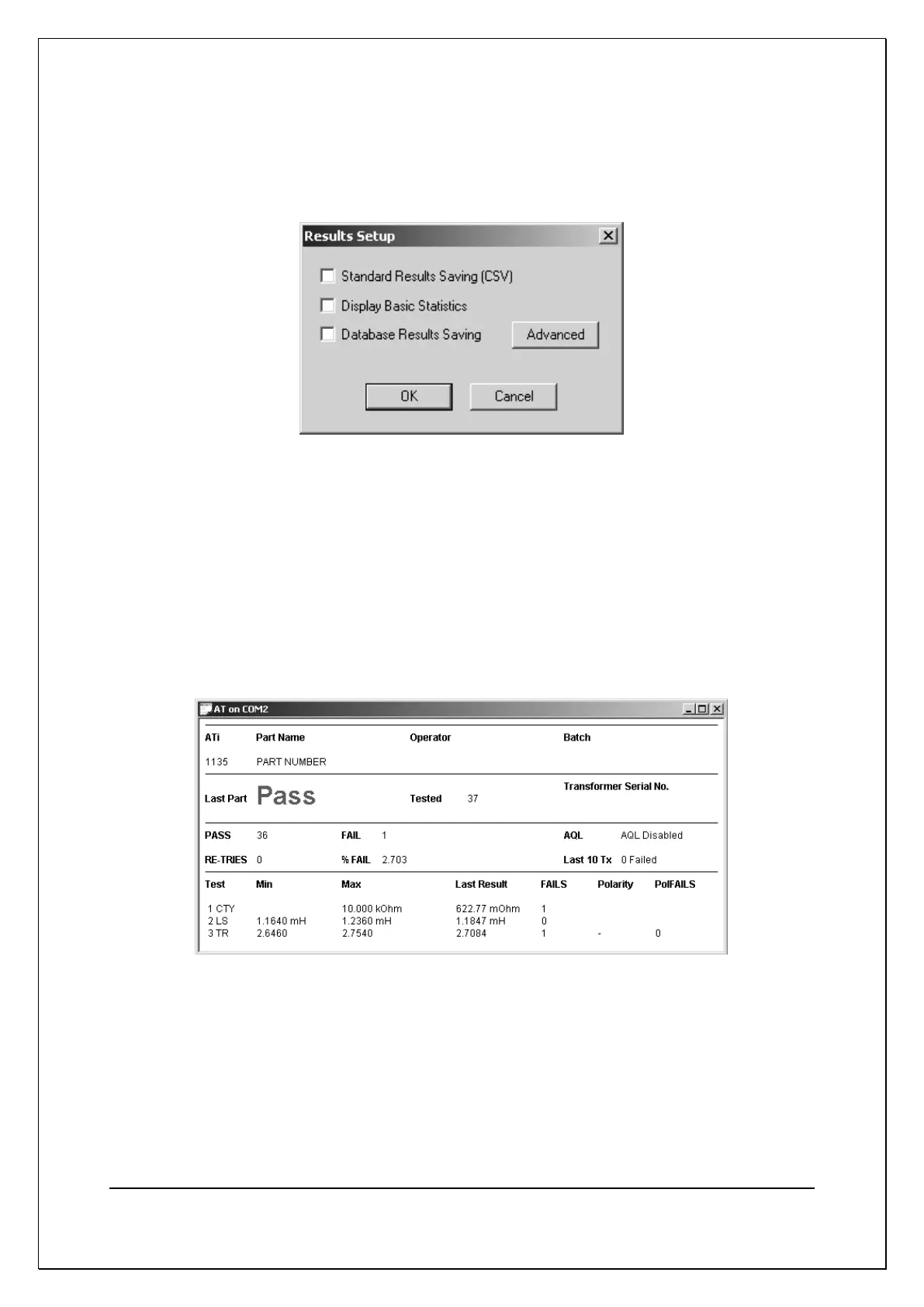

Setting up Batch Statistics
From the 'Set-up' menu, select 'Results' to see the following dialogue:
Select 'Display Basic Statistics' to save results to a database.
For this feature to operate a license for use must first be obtained from
Voltech. You will be then given a Key code to enable the option in the AT
SERVER.
All results formats can be saved simultaneously.
Basic statistics displays, on-line, a summary of the results for the current batch of
transformers that is being tested on every AT connected to the Server. Results for
previous batches can also be opened and the statistics displayed and printed.
The batch statistics window display is automatically shown once this feature is
enabled. For each AT connected to the Server the following information is
displayed:
The type of AT and its serial number, and the part name, operator and batch.
PASS or FAIL for the last part tested, the total tested so far and the serial number
of the last part tested.
The number that have passed and failed, and the AQL<+> (Acceptable Quality
Level) of the transformer.
