Voltech AT5600 User Manual

C H A P T E R 1 4 - A T E D I T OR
AT5600 User Manual 98-119 issue 14 Page 378

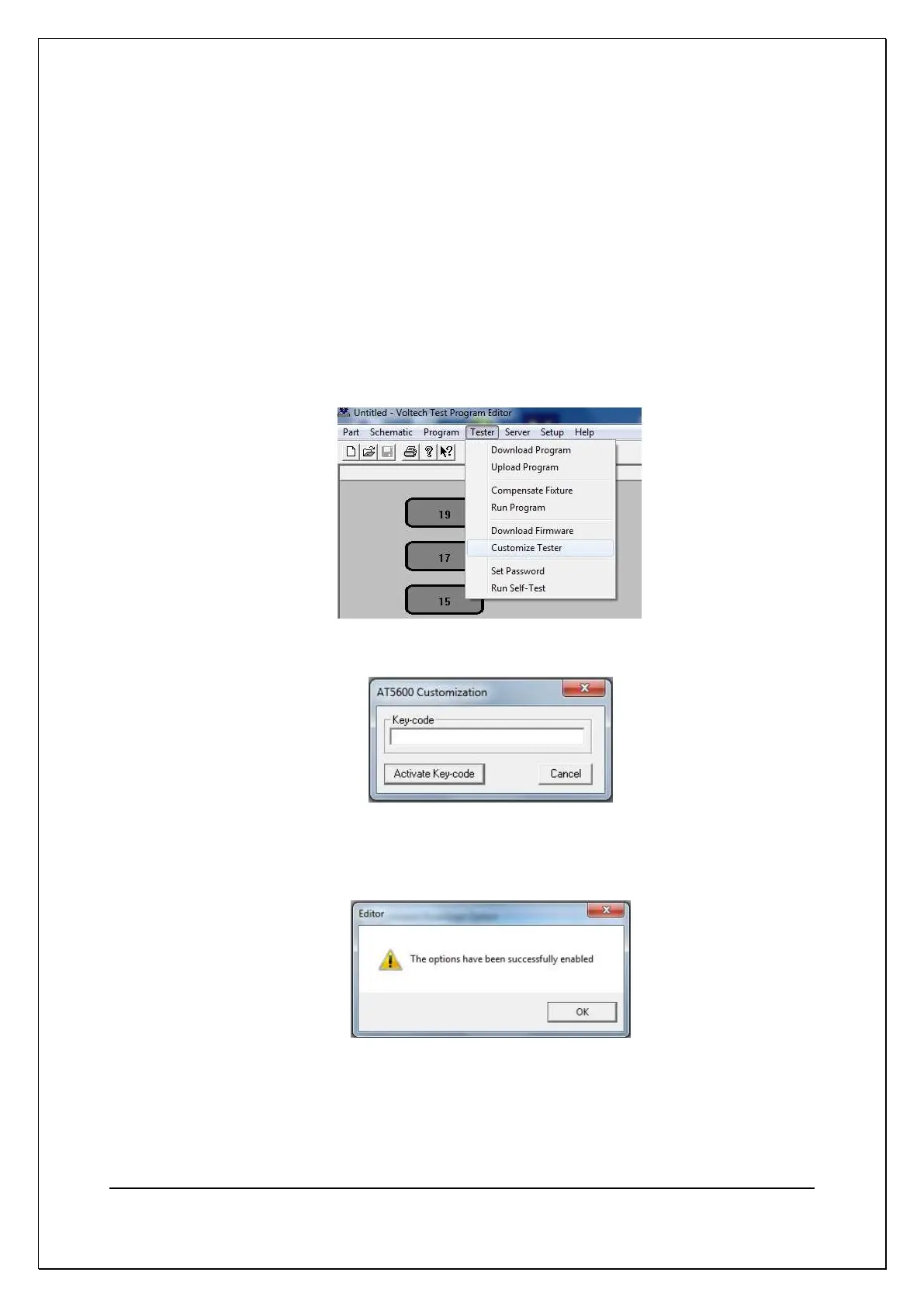

14.9. Customize Tester
The Customize Tester feature in the AT Editor software shall be used to unlock
newly purchased tests. To determine which test are available, connect the
AT5600 to a PC via AUX port or USB-B port, launch the AT Editor, select
Program > Edit, tests which are not available for use shall be grayed-out in the
Available Tests window. Contact your Voltech sales office to purchase tests that
not available.
To upgrade the AT5600 with new tests;
a) Run the AT EDITOR software
b) Connect AT EDITOR using USB (preferred) or RS232 comms to the AT5600.
c) On the Editor, select Tester >Customize Tester.
d) The following pop-up window shall appear;
e) Enter the new Key-code and then click Activate Key-code.
f) Upon completion, the following pop-up message shall appear;
