C H A P T E R 10 – S P E C I F I C A T I O N S
AT5600 User Manual 98-119 issue 14 Page 250

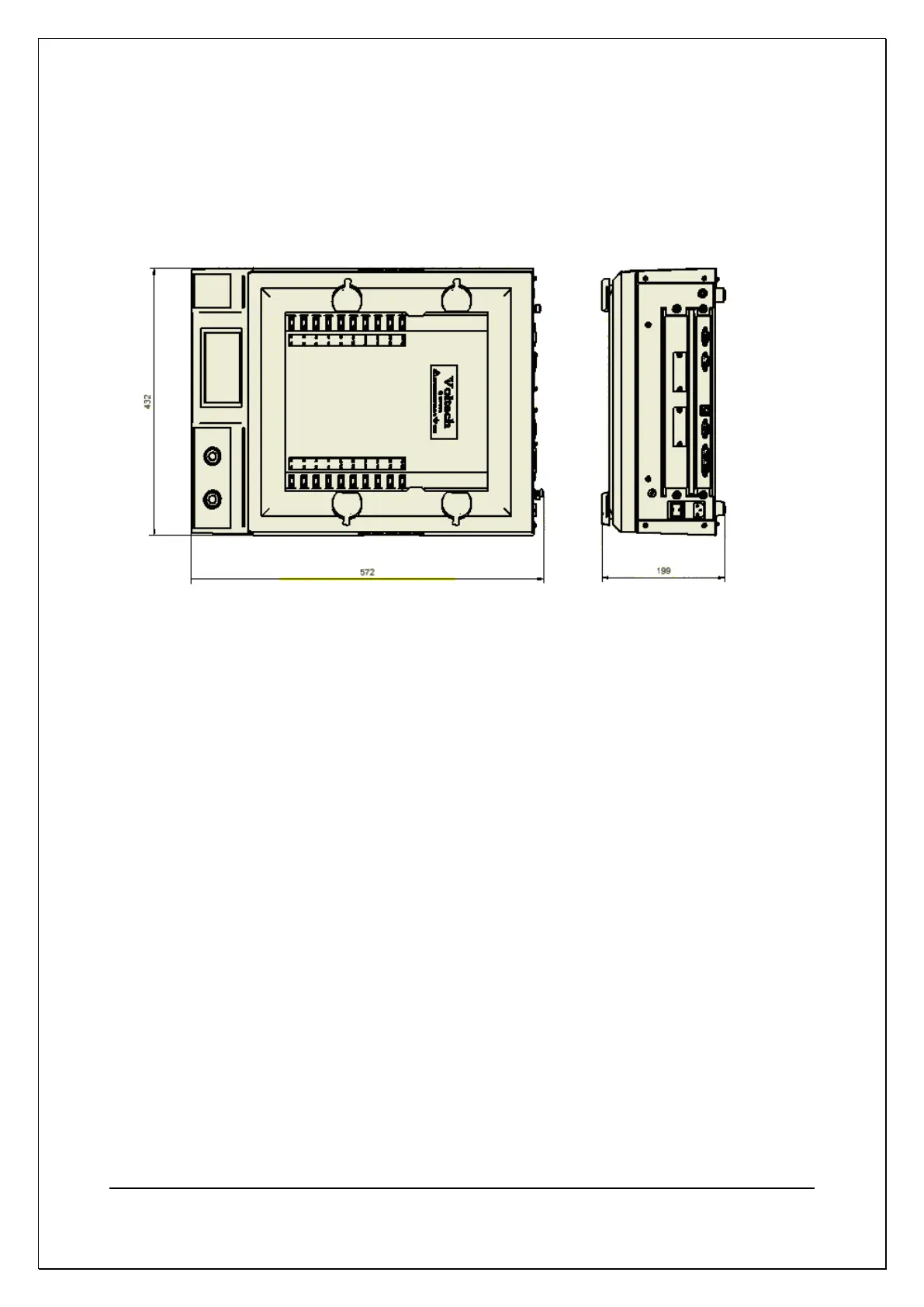

10.5. Mechanical
Weight: Approximately 18.5kg
Width: 432mm
Height: 199mm
Depth: 572mm
The fixture bay on the top surface of the AT5600 accepts Voltech fixture plates
(see chapter 13).
The maximum static weight over a 100cm
2
area in the center of a fixture is 5.0Kg
