Voltech AT5600 User Manual

C H A P T E R 1 4 - A T E D I T OR
AT5600 User Manual 98-119 issue 14 Page 297
14.5.8. Test Limits
In the Quick Start Tutorial (section 5.4), it was stated that for the R - Winding
Resistance - test the limits could be entered in four different ways. The R test is
not unique in this respect. In fact, most tests have several ways in which the
limits may be entered, allowing you greater flexibility in configuring each test to
match your production testing requirements.

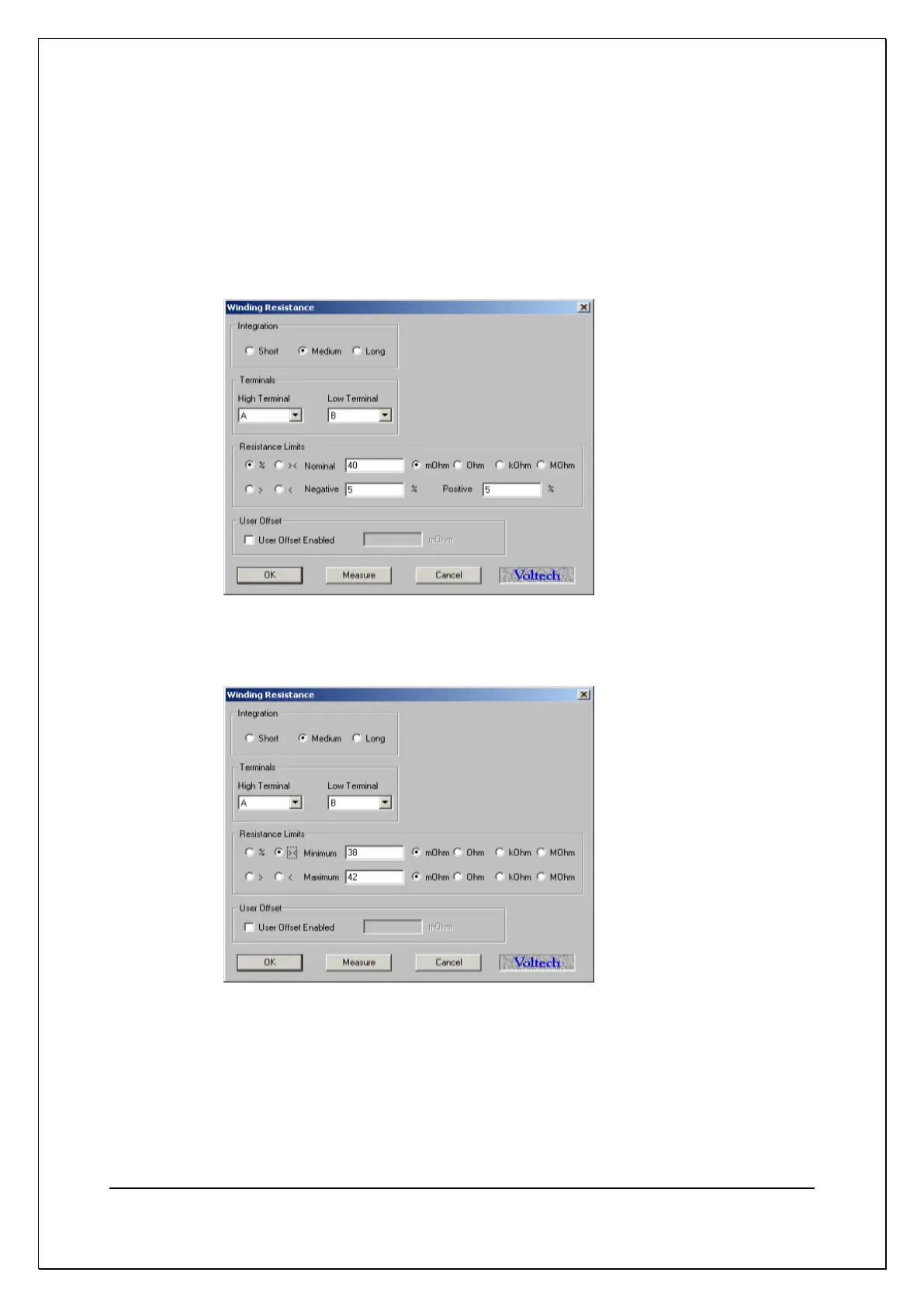

The four types of limits for the R- Winding Resistance - test are:
%: The limits are entered as positive and negative percentages about
a nominal value.
> <: The limits are entered as minimum and maximum values.
