C H A P T E R 5 – G E T T I N G S T A R T E D
AT5600 User Manual 98-119 issue 14 Page 62
The Server software must be installed and operational to follow the server
functionality in the quick start tutorial.
5.4. Quick Start Tutorial
After you have installed the AT5600 together with the editor and server software
packages as described in section 5.2 and 5.3, you may wish to follow through this
tutorial to familiarize yourself with the system operation.
This tutorial will guide you through the process of creating a schematic and test
program using the Editor software. The program you will create will only run if
your tester has been installed with the tests used.
5.4.1. Creating a Simple Schematic
This tutorial describes a method of setting up the tester to test a two-winding
transformer with the following specification:
Resistance of winding AB 59-73 OHMS
Resistance of winding CD 59-73 OHMS
Inductance of winging AB >3H
Turns ratio AB to CD 1:1 +- 2%

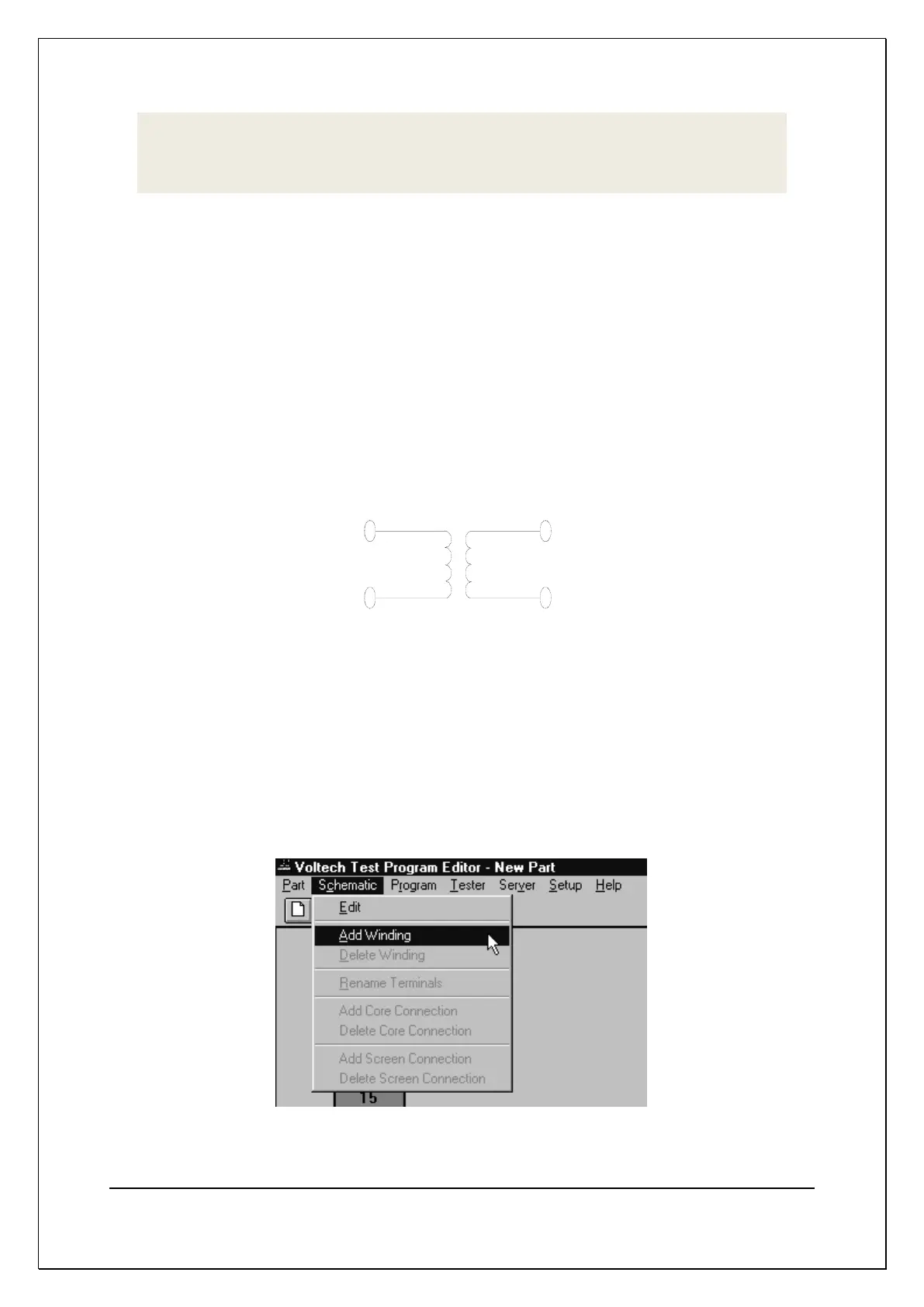

Start the editor program by double-clicking with the left mouse button on the editor
icon, the first thing to do is to ‘draw’ a schematic of the transformer to be tested.
