C H A P T E R 1 4 - A T E D I T OR
AT5600 User Manual 98-119 issue 14 Page 286
Stop on Fail
Select this option to give the fastest test throughput. During program execution,
only transformers which produce a ‘pass’ result will be fully tested; failures will be
rejected at the earliest opportunity.
With this function enabled, the tester will stop program execution whenever a fail
is detected, rather than carrying out all the tests in the test program and reporting
the passes and fails at the end. Please note this does NOT apply if running the
program from the EDITOR, only from the front panel when using the SERVER.
This enables the user to quickly identify a faulty transformer and replace it with
another before all the tests have been carried out, thus speeding up the test
process.
When a fail is encountered, the tester shall stop the program.

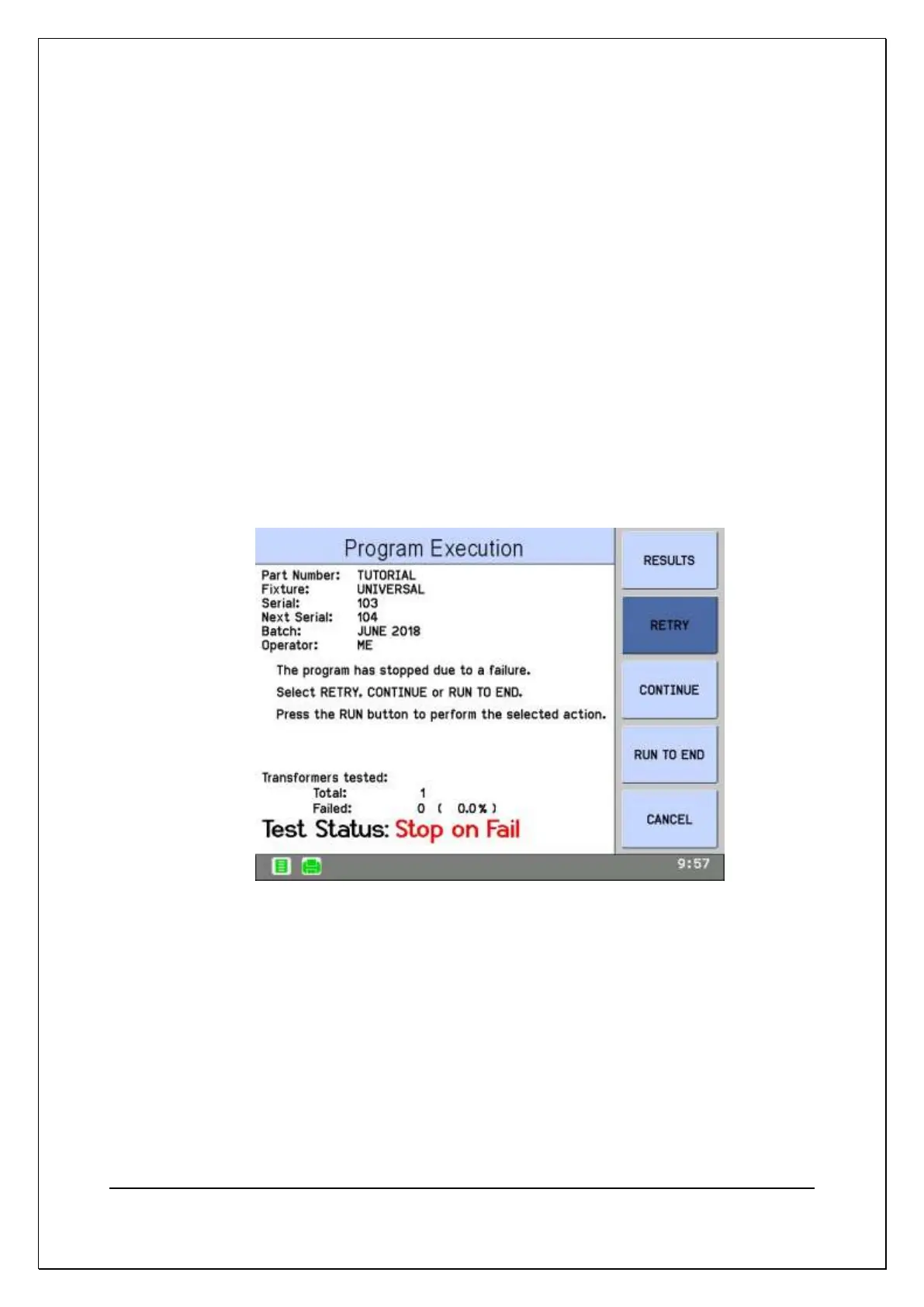

The display will inform the user of a test failure and indicate which test has failed,
as shown below
From this display, the operator has the choice to perform the following;
RESULTS view the test results recorded so far
RETRY Discard the results and run from the beginning again. Useful if the
cause of the fail is just misconnection that you have diagnosed and corrected.
This also stops False Fails being recorded in your results.
CONTINUE The tester will execute the remaining tests in the program, and the
transformer will be recorded as a fail. (If any further tests fail, then there will be
another display like the one above for each failing test.)
RUN TO END Disable STOP ON FAIL for the rest of the run. Useful if you have a
long program with many fails that you wish to let run.
