C H A P T E R 8 – F R O N T P A N E L O P E R A T I O N
AT5600 User Manual 98-119 issue 14 Page 178
Compensat ion
Short-circuit, Open-circuit, and Load compensation can be performed to take
account of fixture and cabling effects on measurement results.
This is optional (you may find that these effects are not critical to your
measurement accuracy, if you have wide PASS/FAIL limits) but should always be
performed when possible.
See section 13.5 for full details.
On Program load, you are asked if you wish to apply compensation.

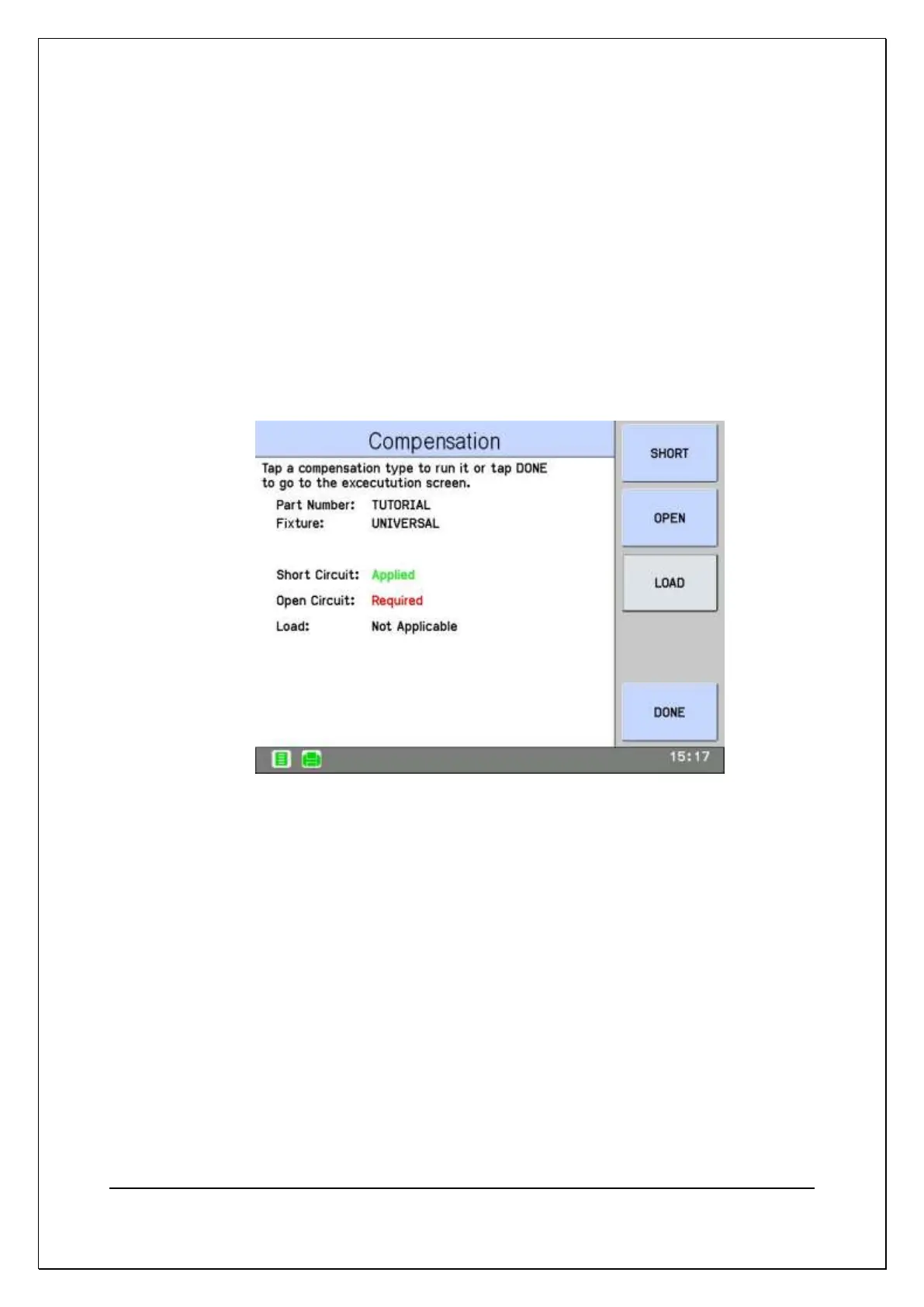

The screen shows which types of compensation apply to your test program (this
depends upon the types of test you have chosen in the test program). These will
show as” Required” Or “Not applicable”
The screen also confirms if you have successfully compensated the program
since the program was loaded. These show as “Applied”
Use the active soft keys to enter the sub menu- for each compensation type.
