C H A P T E R 10 – S P E C I F I C A T I O N S
AT5600 User Manual 98-119 issue 14 Page 247

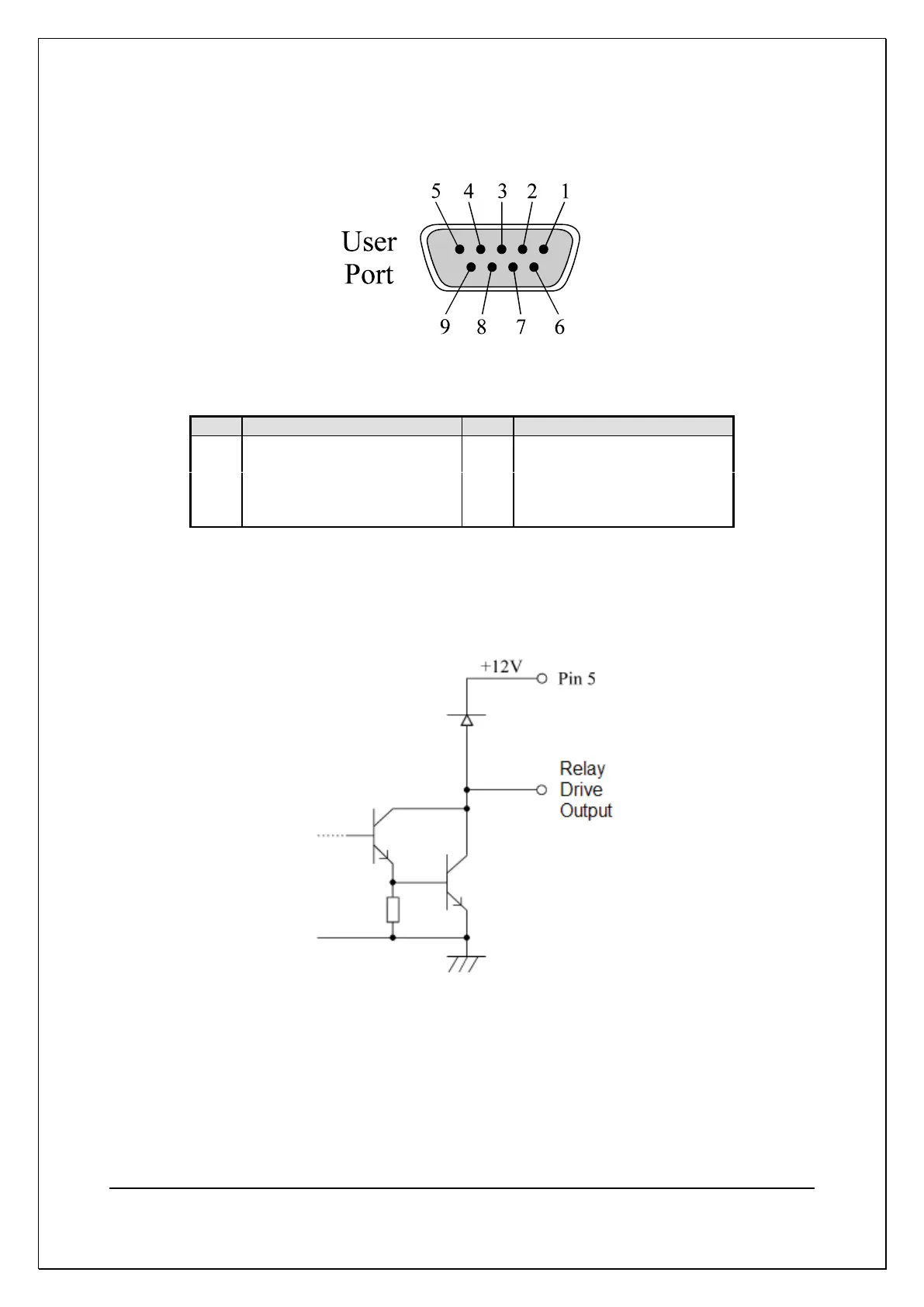

9-pin female D-type connector
Pin
Signal name
Pin
Signal name
1
o/p
User Relay 0 Drive
6
o/p
User Relay 1 Drive
2
o/p
User Relay 2 Drive
7
o/p
User Relay 3 Drive
3
o/p
User Relay 4 Drive
8
o/p
User Relay 5 Drive
4
Not used
9
Not used
5
o/p
+12V
User Relay Drive Outputs (pins 1, 2, 3, 6, 7, 8)
All the User Relay Drive Outputs have the following equivalent circuit:
Specification:
Relay coil resistance: > 150
Maximum output current: 80 mA per output
