Xerox Phaser 6100 Service Manual

Disassembly
6-46

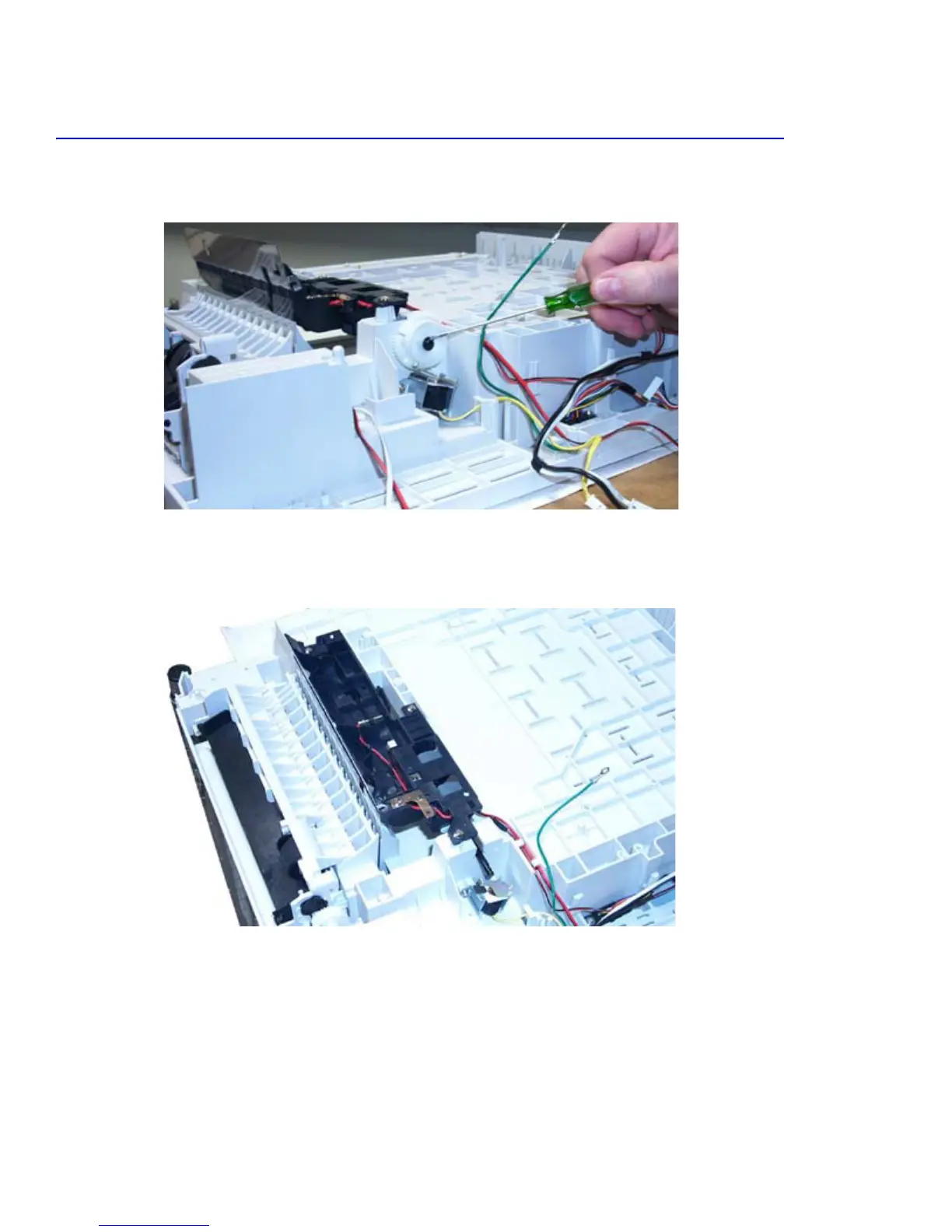

6.4.21 Pick Roller Assembly, Tray1 (PL 9.18.0)
1. Remove the Main Frame and Base Frame. (6.4.20)
2. Remove the split ring from the white gear.
3. Remove the gear by rotating it to the no tooth portion.
4. Gently pull out on the outer bushing’s locking tab, where the gear was, to free it from the chassis. Align the tab in
the bushing with the slot in the base and slide it toward the back of the printer to free it.
5. Remove 3 screws (type).
6. Free the wiring harnesses from the channel.
7. Remove the assembly from the base frame.
>> On re-assembly:
Note
Ensure the mylar shield is in front of the pick assembly before reinstalling.

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
