Xerox Phaser 6100 Service Manual

Summary of Product
Service Manual 4-13

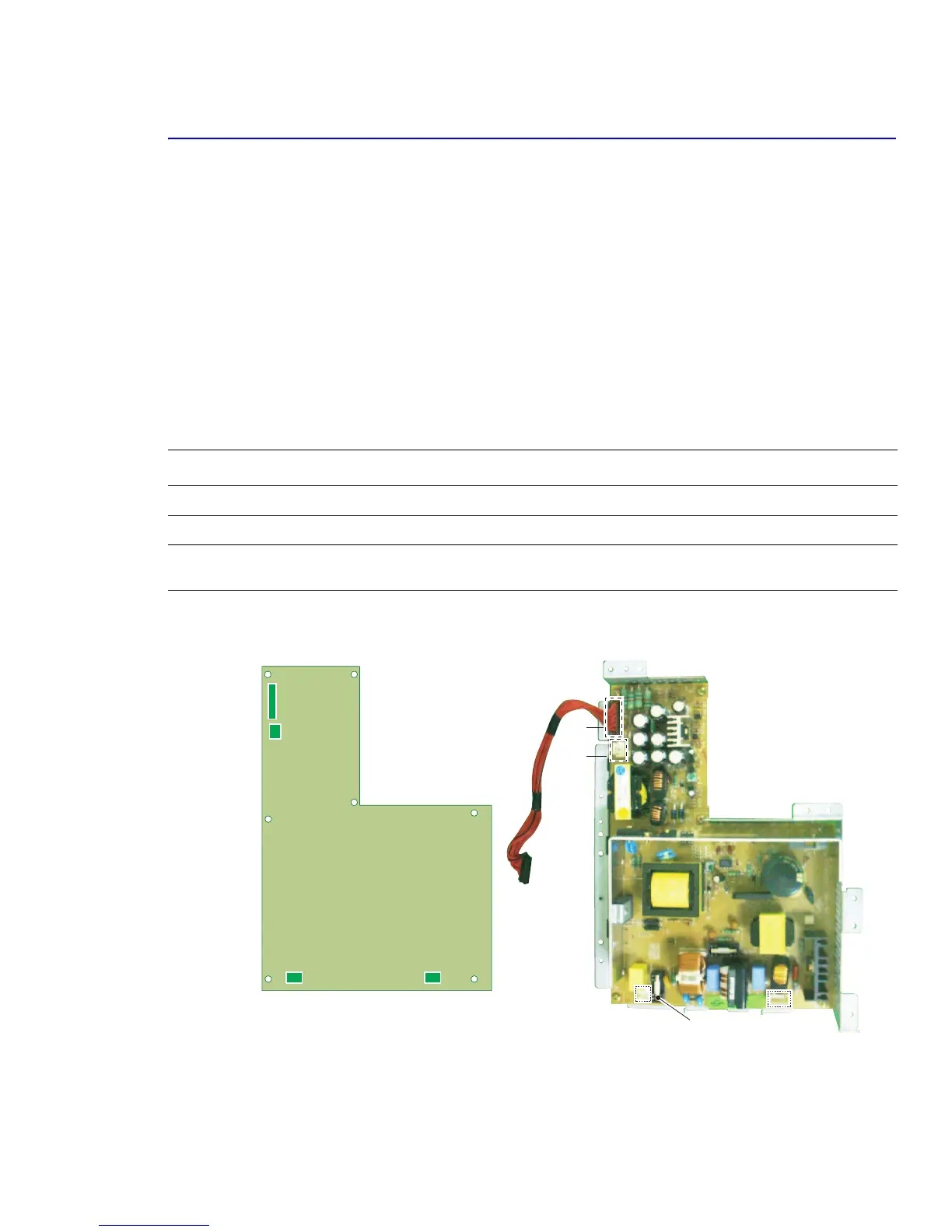

4.1.6 LVPS (SMPS) Board
The LVPS board supplies DC power for driving the whole system, it also contains an AC heater control unit that
supplies power to the fuser.
1) DC output
Main board, control panel, Tray 1, developer drive board, interlocks, sensors imaging components, motors,
clutches, solenoides and HVPS.
2) AC output
Fuser
3) Output voltage
No. Item CH1 CH2 CH3 CH4
1. Channel Name +3.3 V +5 V +24 V +24 V
2. Rated output voltage 3.3 V +/-4% +5 V +/-4% +24 +15%/-10% +24 V +15%/-10%
3. Uses MICOM,
CMOS LOGIC
MICOM,
CMOS LOGIC
MOTOR, FAN MOTOR, FAN
CON4
CON3
CON4
CON4
CON3
CON3
CON4
CON3
CON1
CON1
Fuse
CON2
CON2

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
