6.4.3 Rear Cover (PL 9.1.16)
1. Open the duplex cover, the DEVE cover and the exit cover. (Refer to 6.3.3)
2. Remove the top cover. (Refer to 6.4.1)

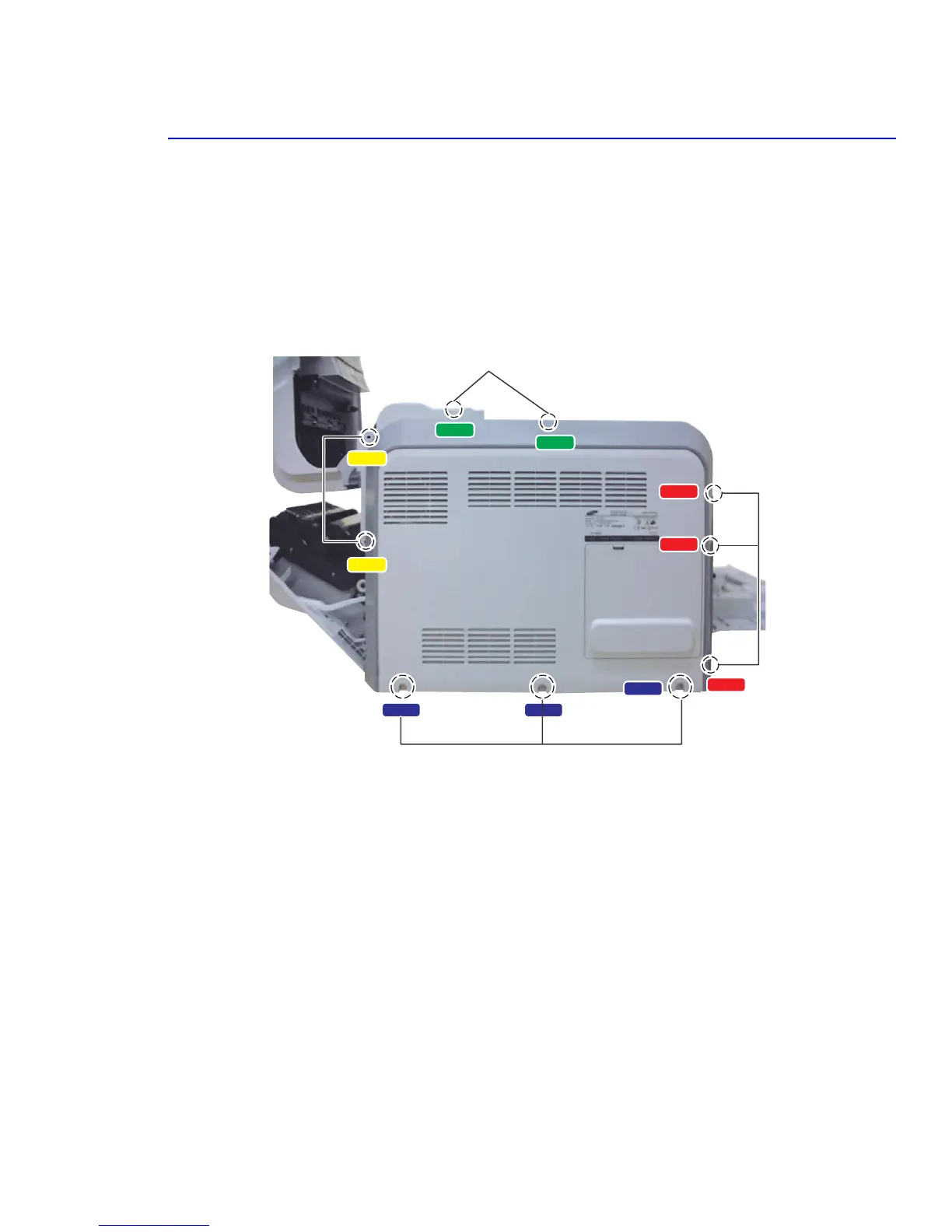

3. Remove 10 screws.
■ A: Top 2 EA (3 * 10 Silver)
■ B: Side 3 EA (3 * 10 Silver)
■ C: Bottom 3 EA (4 * 10 Silver)
■ D: Rear 2 EA (3 * 10 Silver)
■ E: Side 2 EA (3 * 6 Gold) - Only for the DN Model.
4. Remove the rear cover.
